COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08156		Well Classification: GW Status: PR - 10/21/2002
Well Name/No:BERNKLAU #RWF 323-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 58078
Facility Status:PRStatus Date10/21/2002
FacilityID:263905LocationID:334777
County:GARFIELD #045Location:NESW 4 7S94W 6
Field:RULISON - #75400Elevation:6166 ft.
Basin:PICEANCE BASIN
Planned Location:1438FSL  1829 FWLLat/Long: 39.463920 / -107.895300Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.463876 / -107.895632Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/21/2002             Measured TD: 8280 ft.    Vertical TD: 8254 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/21/2002
Wellbore PermitDIRECTIONAL
Permit #:20021119 Expiration Date:6/5/2003
Proposed Top PZ Location:Sec:4 Twp: 7S 94W Footage: 1940 FSL  1958 FWL
Bottom Hole Location:Sec:4 Twp: 7S 94W Footage: 1960 FSL  1970 FWL
Proposed Depth/Form:8145 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 640, Drill Unit: ALL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8145 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:10/17/2002
Spud Date:8/4/2002Spud Date Is:ACTUAL
Measured TD:8280 ft.Measured PB depth:8240 ft.
True Vertical TD:8254 ft.True Vertical PB depth:8214 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY

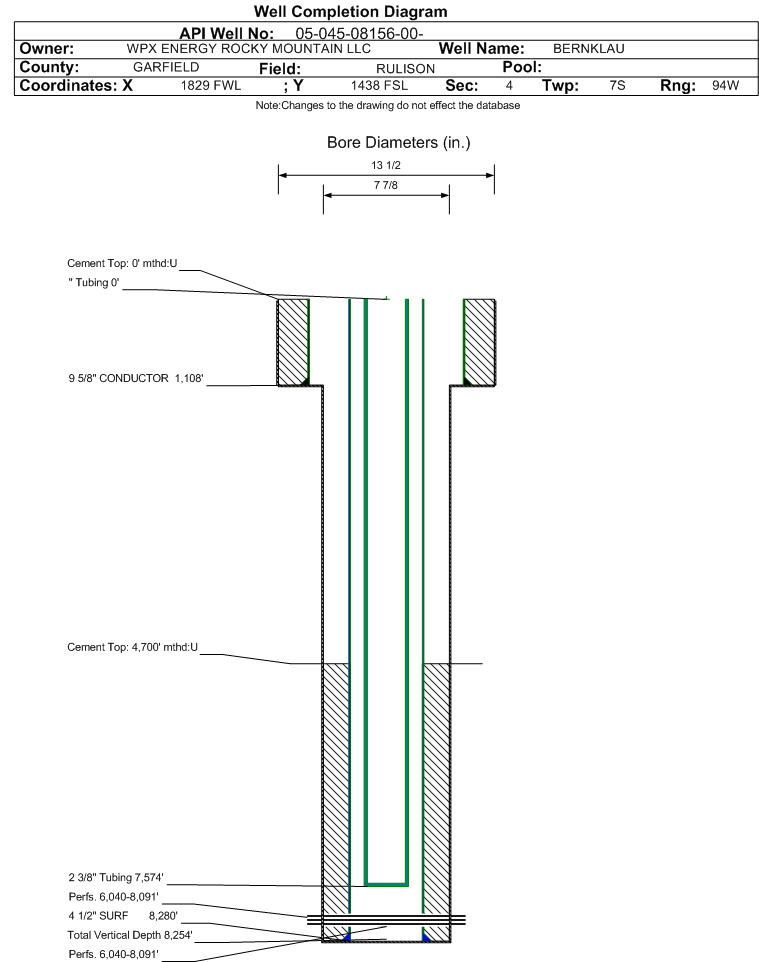

Casing:String Type: CONDUCTOR, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1108 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 1107 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8280 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 877, Top: 4700 ft., Bottom: 8280 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2353 ft.NN
MESAVERDE4816 ft.NN
CAMEO COAL7364 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/21/2002                Interval Top: 6040 ft.    Interval Bottom: 8091 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.172 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/17/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7574 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/21/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1065
CALC_MCF_GAS 1247
CASING_PRESS 1698
MCF_GAS 1247
TUBING_PRESS 1793
Perforation Data:
Interval Top:6040 ft.# Of Holes:92
Interval Bottom:8091 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 10/21/2002                Interval Top: 6040 ft.    Interval Bottom: 8091 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/17/2002
Treatment Summary:1000 GALS 7.5% HCL; 125,781 # 20/40 SAND & 3346 BBLS SLICK WATER.(B) TOP;7396' BOTTOM 7671' 750 GAL 7.5%HCL;99,712#20/40 SAND & 2924 BBLS SLICK WTR.(C) TOP 6998 BOTTOM 7285' 138,998 #20/40 SAND &3318 BBLS SLICK WTR. (D) TOP 6401 BOTTOM 6733',(CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:6040 ft.# Of Holes:96
Interval Bottom:8091 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)10355
GOR739642
GOR DeterminationMCFE
Average BOE per Day4.930
Average MCFE per Day28.609

 Federal Financial Assurance  i

 Tribal Well  i No
