COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08154		Well Classification: GW Status: PR - 7/23/2007
Well Name/No:BERNKLAU #RWF 13-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/23/2007
FacilityID:263903LocationID:334720
County:GARFIELD #045Location:NWSW 4 7S94W 6
Field:RULISON - #75400Elevation:6231 ft.
Basin:PICEANCE BASIN
Planned Location:1499FSL  351 FWLLat/Long: 39.464050 / -107.900530Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.464001 / -107.900871Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/23/2007             Measured TD: 8465 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/23/2007
Wellbore Permit
Permit #:20021121 Expiration Date:6/5/2003
Proposed Depth/Form:8230 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:11/16/2002
Spud Date:9/22/2002Spud Date Is:ACTUAL
Measured TD:8465 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL - GR - SP NEUTRON DENSTIY, C B L

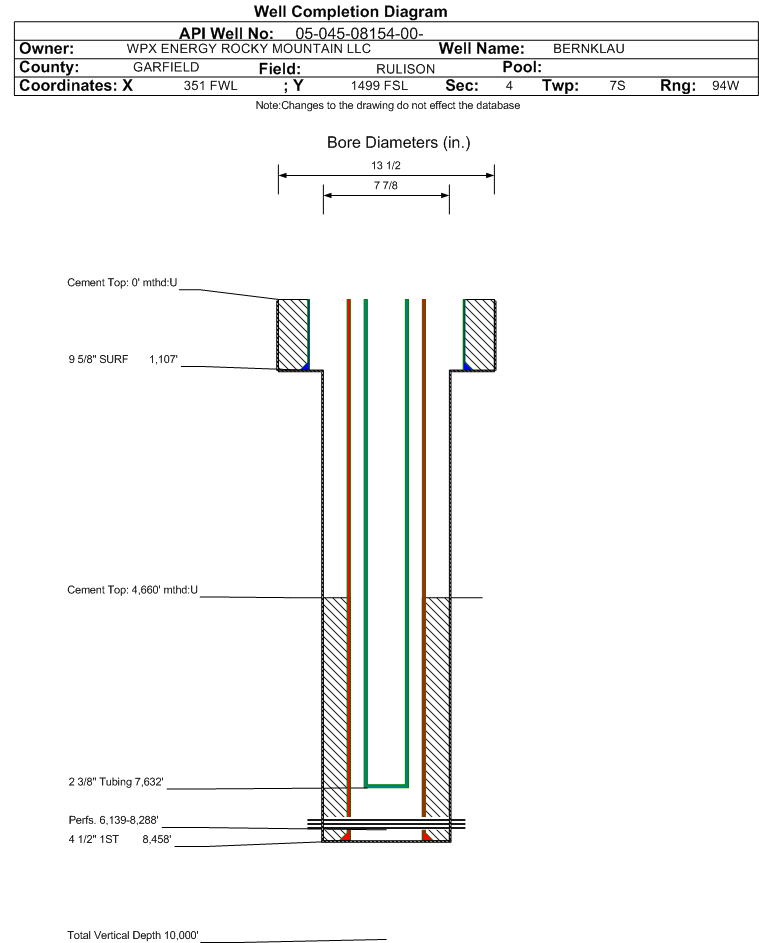

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1107 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: 1106 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8458 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 940, Top: 4660 ft., Bottom: 8457 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2552 ft.NN
MESAVERDE4914 ft.NN
CAMEO COAL7409 ft.NN
ROLLINS8340 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/23/2007                 Interval Top: 6139 ft.    Interval Bottom: 8288 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/16/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7632 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/23/2002Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1384
CASING_PRESS 1742
TUBING_PRESS 1574
Perforation Data:
Interval Top:6139 ft.# Of Holes:126
Interval Bottom:8288 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)13277
GOR781000
GOR DeterminationMCFE
Average BOE per Day6.322
Average MCFE per Day36.665

 Federal Financial Assurance  i

 Tribal Well  i No
