COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08142		Well Classification: GW Status: PR - 11/6/2005
Well Name/No:FEDERAL #PA 44-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62162
Facility Status:PRStatus Date11/6/2005
FacilityID:263762LocationID:335389
County:GARFIELD #045Location:NESE 29 6S95W 6
Field:PARACHUTE - #67350Elevation:5735 ft.
Basin:PICEANCE BASIN
Planned Location:1663FSL  533 FELLat/Long: 39.492839 / -108.014394Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.492804 / -108.014366Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/6/2005             Measured TD: 7608 ft.    Vertical TD: 7548 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/6/2005
Wellbore PermitDIRECTIONAL
Permit #:20020922 Expiration Date:5/23/2003
Proposed Top PZ Location:Sec:29 Twp: 6S 95W Footage: 1155 FSL  973 FEL
Bottom Hole Location:Sec:29 Twp: 6S 95W Footage: 1105 FSL  1014 FEL
Proposed Depth/Form:7590 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: S/2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:10/8/2002
Spud Date:8/2/2002Spud Date Is:ACTUAL
Measured TD:7608 ft.Measured PB depth:7560 ft.
True Vertical TD:7548 ft.True Vertical PB depth:7500 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY LOG

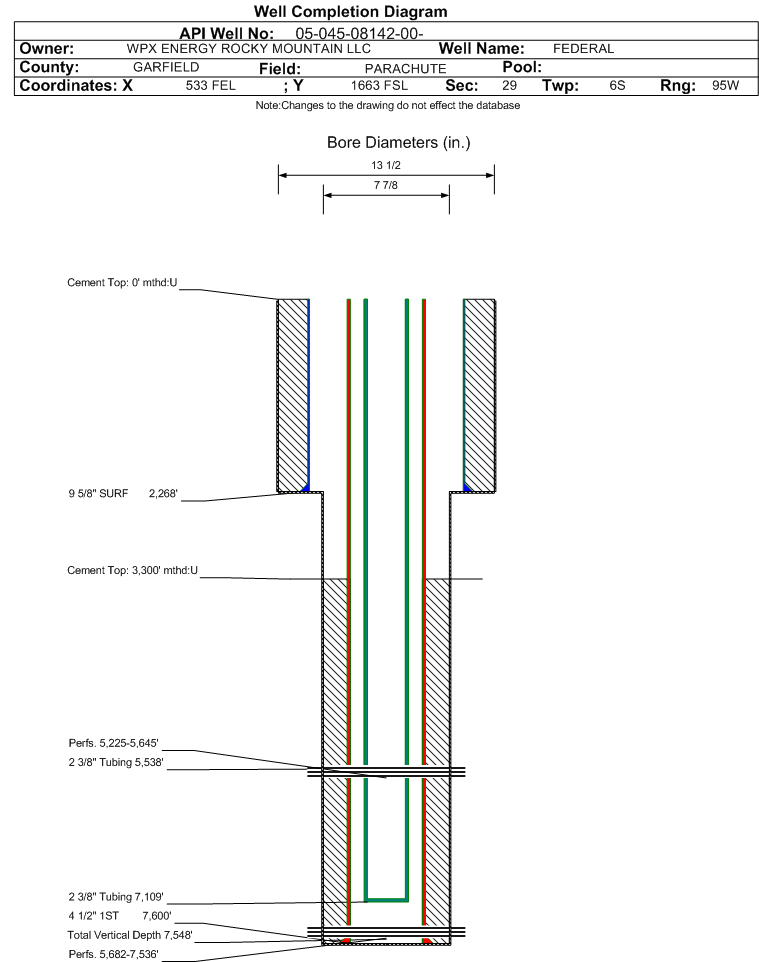

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2268 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 830, Top: 0 ft., Bottom: 2268 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7600 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 3300 ft., Bottom: 7600 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G2059 ft.NN
FORT UNION2359 ft.NN
MESAVERDE4201 ft.NN
ROLLINS7563 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/11/2002                Interval Top: 5682 ft.    Interval Bottom: 7536 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.172 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/6/2005
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7109 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/11/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 0
BTU_GAS 1100
CALC_MCF_GAS 1137
CASING_PRESS 1860
MCF_GAS 1137
TUBING_PRESS 1619
Perforation Data:
Interval Top:5682 ft.# Of Holes:87
Interval Bottom:7536 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 11/6/2005                 Interval Top: 5225 ft.    Interval Bottom: 5645 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/6/2005
Treatment Summary:500 GALS 7-1/2% HCL, 500 GALS 10% ACETIC ACID, 1000 GLAS KCL SW, 260000# 20/40 5218 BBLS SLICK WATER, 175 TONS CO2
Tubing Size:2.375 in.Tubing Setting Depth:5538 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/6/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 580
CASING_PRESS 592
TUBING_PRESS 487
Perforation Data:
Interval Top:5225 ft.# Of Holes:41
Interval Bottom:5645 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)26
Total Gas Produced (MCF)15330
GOR589615
GOR DeterminationMCFE
Average BOE per Day7.316
Average MCFE per Day42.421

 Federal Financial Assurance  i Y

 Tribal Well  i No
