COGIS - WELL SCOUT CARD

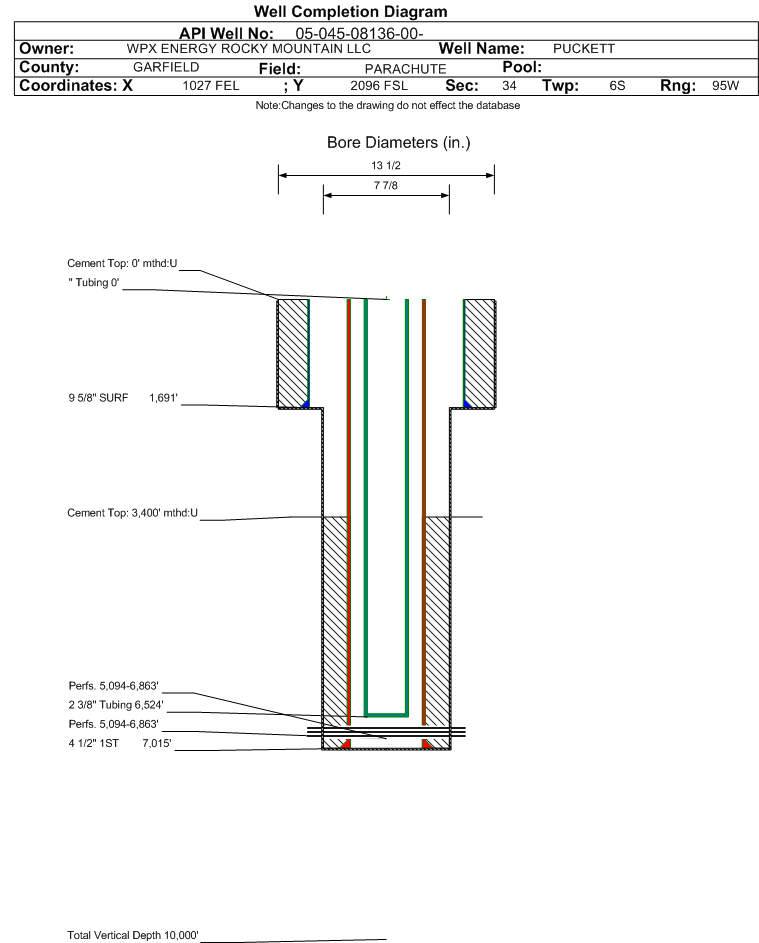

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08136		Well Classification: GW Status: PR - 10/21/2002
Well Name/No:PUCKETT #PA 43-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/21/2002
FacilityID:263533LocationID:428684
County:GARFIELD #045Location:NESE 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5174 ft.
Basin:PICEANCE BASIN
Planned Location:2096FSL  1027 FELLat/Long: 39.479599 / -107.978982Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.479212 / -107.978861Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/21/2002             Measured TD: 7017 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/21/2002
Wellbore Permit
Permit #:20020938 Expiration Date:5/7/2003
Proposed Depth/Form:7150 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440.19 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:10/17/2002
Spud Date:8/14/2002Spud Date Is:ACTUAL
Measured TD:7017 ft.Measured PB depth:6949 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL-GR-SP-NEUTRON DENSITY, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1691 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 750, Top: 0 ft., Bottom: 1691 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7015 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1030, Top: 3400 ft., Bottom: 7014 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1479 ft.NN
FORT UNION1830 ft.NN
MESAVERDE3649 ft.NN
CAMEO6258 ft.NN
ROLLINS6960 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/21/2002                Interval Top: 5094 ft.    Interval Bottom: 6863 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/17/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6524 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/21/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1217
CASING_PRESS 1666
MCF_GAS 1217
TUBING_PRESS 1546
Perforation Data:
Interval Top:5094 ft.# Of Holes:77
Interval Bottom:6863 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 10/21/2002                Interval Top: 5094 ft.    Interval Bottom: 6863 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/17/2002
Treatment Summary:(TOP6518;BOTTOM 6853') 1000 GALS 7.5 HCL;162,587# 20/40 SAND & 3709 BBLS SLICK WATER.(TOP 6138 BOTTOM 6339')750 GAL 7.5% HV=CL;111,269# 20/40 SAND & 2625 BBLS SLICK WATER(TOP05758 BOTTOM 6028')750 GALS 7.5% HCL;152,715# 20/40 SAND &(CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:5094 ft.# Of Holes:85
Interval Bottom:6863 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6472
GOR588363
GOR DeterminationMCFE
Average BOE per Day3.087
Average MCFE per Day17.923

 Federal Financial Assurance  i

 Tribal Well  i No
