COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08131		Well Classification: GW Status: PR - 4/3/2002
Well Name/No:GM #322-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/3/2002
FacilityID:263456LocationID:334908
Municipality/County:PARACHUTE / GARFIELD #045Location:SENW 12 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5115 ft.
Basin:PICEANCE BASIN
Planned Location:1843FNL  2413 FWLLat/Long: 39.454569 / -108.059455Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.454634 / -108.059667Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/3/2002             Measured TD: 6204 ft.    Vertical TD: 6023 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/3/2002
Wellbore Permit
Permit #:20020691 Expiration Date:5/1/2003
Proposed Top PZ Location:Sec:12 Twp: 7S 96W Footage: 2390 FNL  1739 FWL
Bottom Hole Location:Sec:12 Twp: 7S 96W Footage: 2460 FNL  956 FWL
Proposed Depth/Form:6169 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:8/8/2002
Spud Date:6/7/2002Spud Date Is:ACTUAL
Measured TD:6204 ft.Measured PB depth:
True Vertical TD:6023 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL

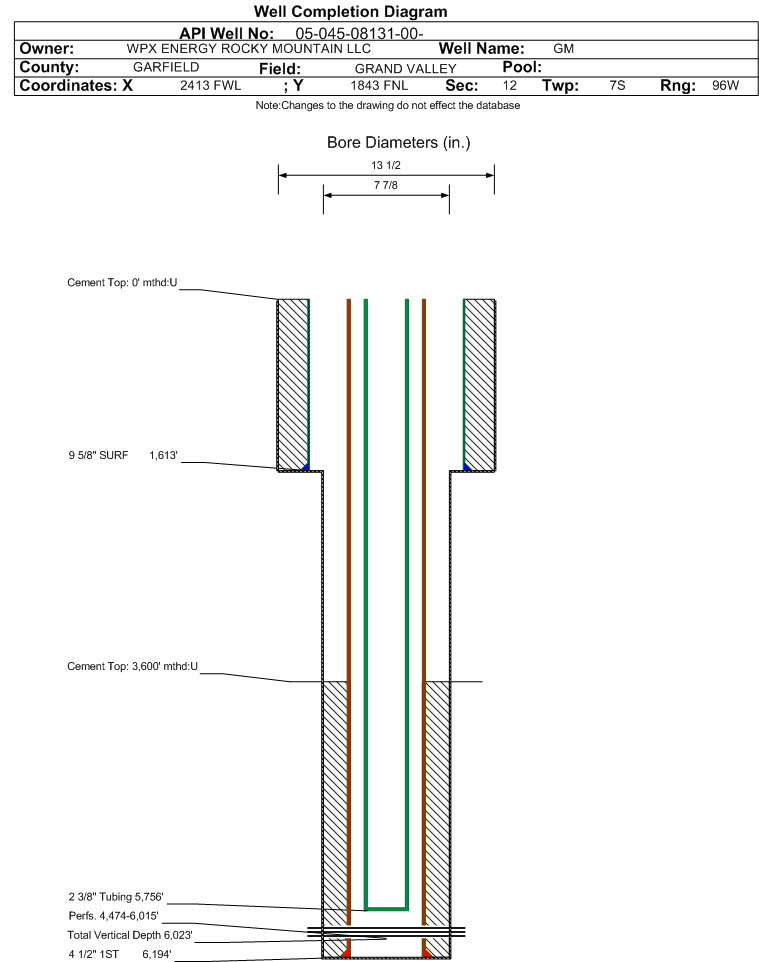

Log Types:THERMAL MULTIGATE DECAY LITHOLOGY, C B L
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1613 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 0 ft., Bottom: 1613 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6194 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 830, Top: 3600 ft., Bottom: 6193 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1294 ft.NN
FORT UNION1579 ft.NN
MESAVERDE3039 ft.NN
CAMEO COAL5559 ft.NN
ROLLINS6019 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/3/2002                  Interval Top: 4474 ft.    Interval Bottom: 6015 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/8/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5756 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 0
BTU_GAS 1051
CALC_BBLS_OIL 0
CALC_MCF_GAS 1630
CASING_PRESS 1877
MCF_GAS 1630
TUBING_PRESS 1792
Perforation Data:
Interval Top:4474 ft.# Of Holes:72
Interval Bottom:6015 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)12254
GOR765875
GOR DeterminationMCFE
Average BOE per Day5.833
Average MCFE per Day33.839

 Federal Financial Assurance  i

 Tribal Well  i No
