COGIS - WELL SCOUT CARD

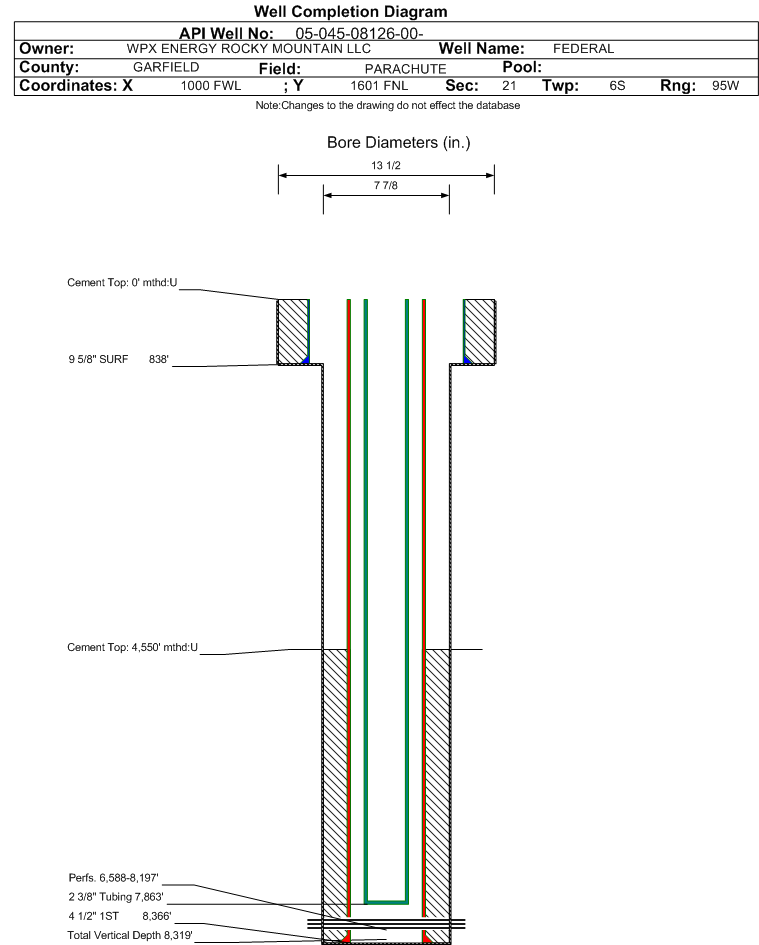

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08126		Well Classification: GW Status: PR - 11/13/2002
Well Name/No:FEDERAL #PA 312-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62161
Facility Status:PRStatus Date11/13/2002
FacilityID:263364LocationID:335257
County:GARFIELD #045Location:SWNW 21 6S95W 6
Field:PARACHUTE - #67350Elevation:6115 ft.
Basin:PICEANCE BASIN
Planned Location:1601FNL  1000 FWLLat/Long: 39.513198 / -108.009614Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.513237 / -108.009529Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/13/2002             Measured TD: 8383 ft.    Vertical TD: 8319 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/13/2002
Wellbore PermitDIRECTIONAL
Permit #:20020790 Expiration Date:4/22/2003
Proposed Top PZ Location:Sec:21 Twp: 6S 95W Footage: 2101 FNL  459 FWL
Bottom Hole Location:Sec:21 Twp: 6S 95W Footage: 2134 FNL  425 FWL
Proposed Depth/Form:8460 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:11/6/2002
Spud Date:8/18/2002Spud Date Is:ACTUAL
Measured TD:8383 ft.Measured PB depth:8312 ft.
True Vertical TD:8319 ft.True Vertical PB depth:8248 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY LOG
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 838 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 380, Top: , Bottom: 838 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8366 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 820, Top: 4550 ft., Bottom: 8365 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G2914 ft.NN
MESAVERDE5150 ft.NN
CAMEO7822 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/13/2002                Interval Top: 6588 ft.    Interval Bottom: 8197 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.172 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/6/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7863 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/13/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 0
BTU_GAS 1141
CALC_BBLS_OIL 0
CALC_MCF_GAS 1408
CASING_PRESS 1728
MCF_GAS 1408
TUBING_PRESS 1584
Perforation Data:
Interval Top:6588 ft.# Of Holes:90
Interval Bottom:8197 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6963
GOR633000
GOR DeterminationMCFE
Average BOE per Day3.322
Average MCFE per Day19.263

 Federal Financial Assurance  i Y

 Tribal Well  i No
