COGIS - WELL SCOUT CARD

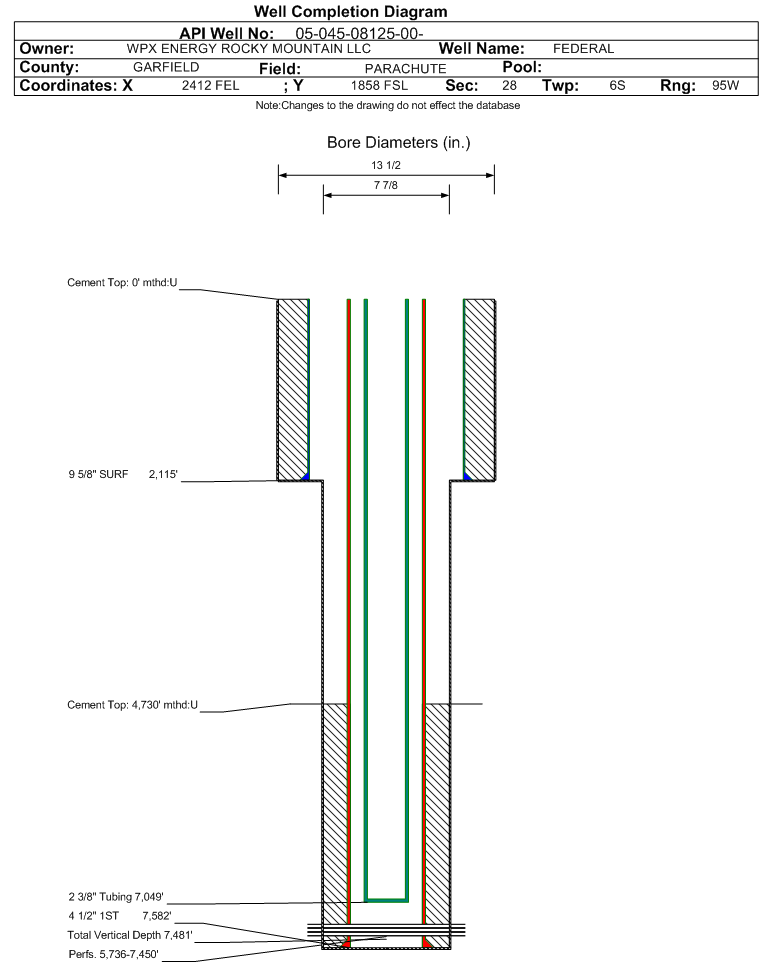

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08125		Well Classification: GW Status: PR - 11/27/2002
Well Name/No:FEDERAL #PA 333-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62161
Facility Status:PRStatus Date11/27/2002
FacilityID:263363LocationID:335355
County:GARFIELD #045Location:NWSE 28 6S95W 6
Field:PARACHUTE - #67350Elevation:5467 ft.
Basin:PICEANCE BASIN
Planned Location:1858FSL  2412 FELLat/Long: 39.493359 / -108.002353Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493396 / -108.002296Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/27/2002             Measured TD: 7582 ft.    Vertical TD: 7481 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/27/2002
Wellbore PermitDIRECTIONAL
Permit #:20020789 Expiration Date:4/22/2003
Proposed Top PZ Location:Sec:28 Twp: 6S 95W Footage: 2265 FSL  1623 FEL
Bottom Hole Location:Sec:28 Twp: 6S 95W Footage: 2280 FSL  1594 FEL
Proposed Depth/Form:7580 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: E/2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:11/23/2002
Spud Date:10/7/2002Spud Date Is:ACTUAL
Measured TD:7582 ft.Measured PB depth:7566 ft.
True Vertical TD:7481 ft.True Vertical PB depth:7465 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:CASED HOLE NEUTRON DENSITY LOG; GAMMA RAY
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2115 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 750, Top: , Bottom: 2115 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7582 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 950, Top: 4730 ft., Bottom: 7582 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1873 ft.NN
FORT UNION2203 ft.NN
MESAVERDE4223 ft.NN
CAMEO6911 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/27/2002                Interval Top: 5736 ft.    Interval Bottom: 7450 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/23/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7049 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/27/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1065
CASING_PRESS 1958
MCF_GAS 1065
TUBING_PRESS 1773
Perforation Data:
Interval Top:5736 ft.# Of Holes:93
Interval Bottom:7450 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)8806
GOR733833
GOR DeterminationMCFE
Average BOE per Day4.190
Average MCFE per Day24.328

 Federal Financial Assurance  i Y

 Tribal Well  i No
