COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08119		Well Classification: GW Status: PR - 7/24/2002
Well Name/No:PA #324-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62739
Facility Status:PRStatus Date7/24/2002
FacilityID:263282LocationID:334749
County:GARFIELD #045Location:SESW 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5155 ft.
Basin:PICEANCE BASIN
Planned Location:1058FSL  2166 FWLLat/Long: 39.476759 / -108.023454Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.476777 / -108.023442Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/24/2002             Measured TD: 6525 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/24/2002
Wellbore Permit
Permit #:20020682 Expiration Date:4/15/2003
Proposed Depth/Form:6620 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:7/22/2002
Spud Date:6/10/2002Spud Date Is:ACTUAL
Measured TD:6525 ft.Measured PB depth:6444 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL - GR - SP - NEUTRON DENSITY & C B L

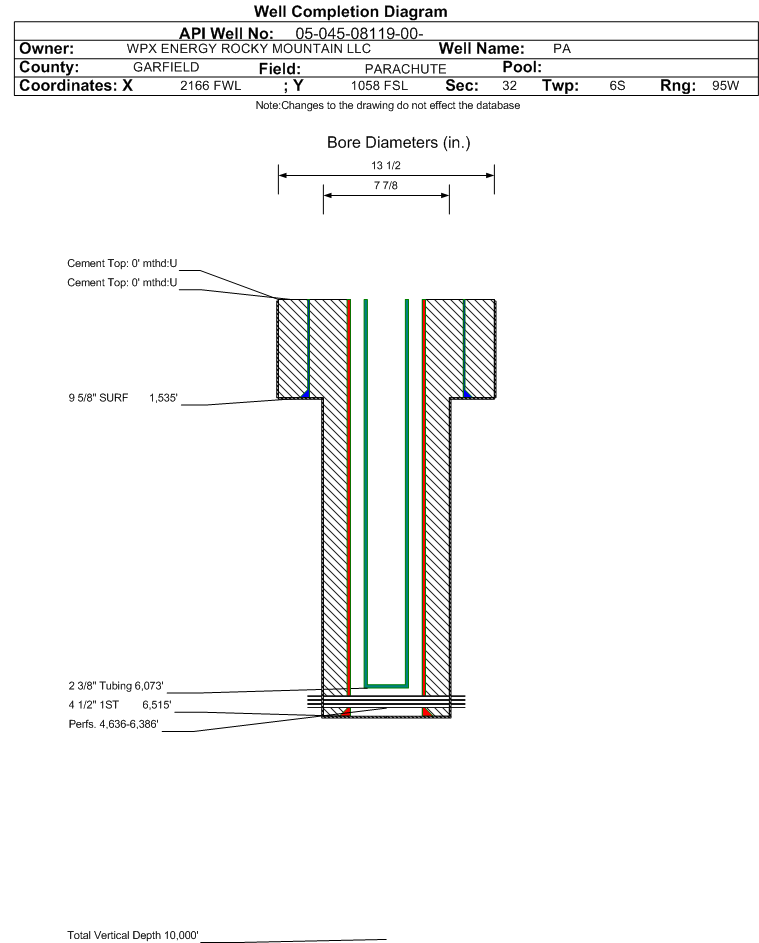

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1535 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 640, Top: , Bottom: 1534 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6515 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 980, Top: , Bottom: 6514 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1309 ft.NN
FORT UNION1636 ft.NN
MESAVERDE3325 ft.NN
CAMEO5757 ft.NN
ROLLINS6463 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/24/2002                 Interval Top: 4636 ft.    Interval Bottom: 6386 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/22/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6073 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/24/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1061
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1710
CASING_PRESS 2067
MCF_GAS 1710
TUBING_PRESS 1870
Perforation Data:
Interval Top:4636 ft.# Of Holes:81
Interval Bottom:6386 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)13090
GOR688947
GOR DeterminationMCFE
Average BOE per Day6.235
Average MCFE per Day36.168

 Federal Financial Assurance  i

 Tribal Well  i No
