Wellbore #00 Wellbore Classification: GW Status: SI - 7/1/2025 Measured TD: 7455 ft. Vertical TD: 7221 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 7/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20020605 | Expiration Date: | 4/7/2003 | | Proposed Top PZ Location: | Sec:32 Twp: 6S 92W | Footage: 1987 FNL 91 FWL | | Bottom Hole Location: | Sec:32 Twp: 6S 92W | Footage: 1990 FNL 1 FWL | | Proposed Depth/Form: | 7500 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA | Unit Number: | COC 55279ZX | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

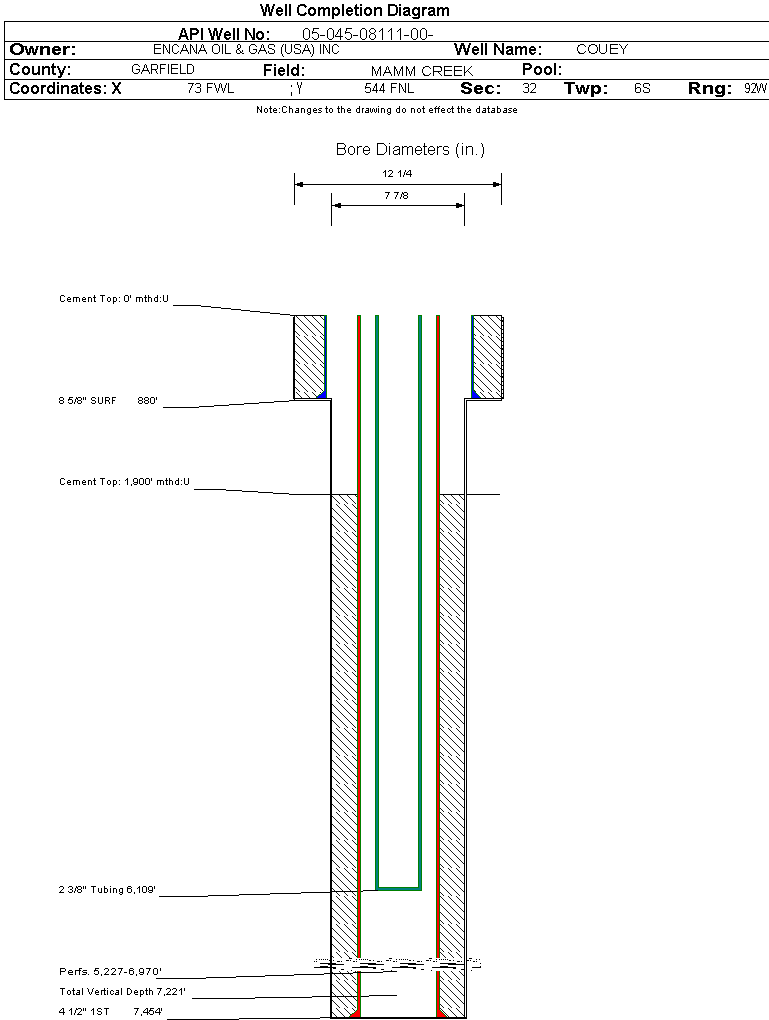

| Wellbore Completed | | Completion Date: | 9/22/2002 | | Spud Date: | 4/27/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 7455 ft. | Measured PB depth: | | | True Vertical TD: | 7221 ft. | True Vertical PB depth: | 7376 ft. | | Top PZ Location: | Sec: Twp: | Footage: FL FL | | Bottom Hole Location: | Sec: Twp: | Footage: FL FL | | Log Types: | CBL / GR / CCL, AI / LC / GR, CN / TLD / GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 880 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 0 ft., Bottom: 880 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7454 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1130, Top: 1900 ft., Bottom: 7454 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3853 ft. | N | N | | WILLIAMS FORK | 3854 ft. | 7041 ft. | N | N | | ROLLINS | 7042 ft. | 7455 ft. | N | N |
Formation WMFK Formation Classification: GW Status: SI - 7/1/2025 Interval Top: 5227 ft. Interval Bottom: 6970 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 9/21/2002 | Choke Size: | 0.370 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/22/2002 | | Treatment Summary: | STAGE1;ACID BALLOUT,6934-6970',20HOLES,.41",3231 BBL KCL SLICKWATER,140,000#20/40 SAND.STAGE2;ACID BALLOUT,6464-6706',12 HOLES,.34",2492 BBL KCL SLICKWATER,98,763#20/40 SAND. STAGE3; ACID BLOWOUT,5835-6124',16HOLES,.32",3568 BBL KCL SLICKWATER,161,000#20/40 SAND;STAGE4;ACID BALLOUT,5510-5678',18HOLES,.32",4445 BBL KCL SLICKWATER,229,900#20/40 SAND. STAGE 5;ACID BALLOUT,5227-5428',22 HOLES,.32",54343 BBL KCL SLICKWATER,236,240#20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6109 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/22/2002 | Test Method: | FLOWING | | Hours Tested: | | Gas Type: | DRY | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 1 | | CALC_MCF_GAS | 1480 | | CASING_PRESS | 1850 | | MCF_GAS | 1480 | | TUBING_PRESS | 1400 |
| | Perforation Data: | | Interval Top: | 5227 ft. | # Of Holes: | 88 | | Interval Bottom: | 6970 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 14 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.006 |
| Average MCFE per Day | 0.039 |
| Federal Financial Assurance | i | Y |
|
|
