COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08102		Well Classification: CBM Status: PR - 12/15/2002
Well Name/No:FEDERAL #GM 332-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 50759
Facility Status:PRStatus Date12/15/2002
FacilityID:263070LocationID:335164
County:GARFIELD #045Location:SWNE 34 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5411 ft.
Basin:PICEANCE BASIN
Planned Location:2257FNL  1581 FELLat/Long: 39.481568 / -108.090846Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.481729 / -108.090774Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/15/2002             Measured TD: 6611 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/15/2002
Wellbore Permit
Permit #:20020576 Expiration Date:3/24/2003
Proposed Top PZ Location:Sec:34 Twp: 6S 96W Footage: 1581 FNL  1750 FEL
Bottom Hole Location:Sec:34 Twp: 6S 96W Footage: 1550 FNL  1780 FEL
Proposed Depth/Form:6736 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:11/14/2002
Spud Date:10/2/2002Spud Date Is:ACTUAL
Measured TD:6611 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:THERMAL DECAY MULTIGATE LITHOLOGY,C B L

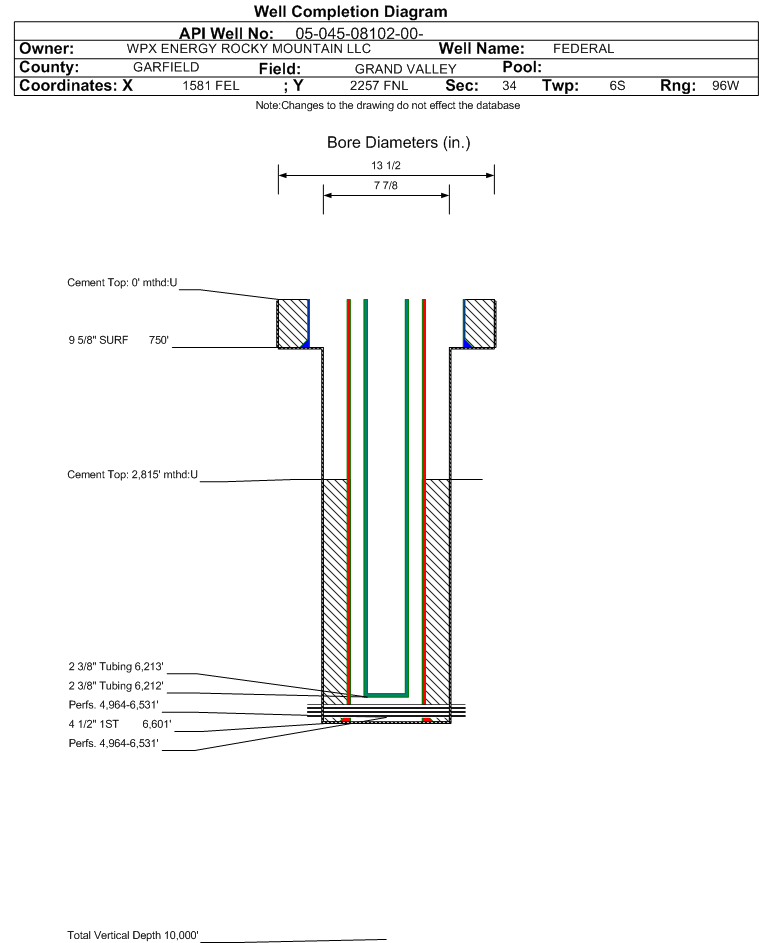

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 750 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 380, Top: , Bottom: 750 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6601 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 2815 ft., Bottom: 6600 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1746 ft.NN
FORT UNION2056 ft.NN
MESAVERDE3528 ft.NN
CAMEO COAL6183 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/15/2002                Interval Top: 4964 ft.    Interval Bottom: 6531 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/15/2002Choke Size:0.200 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:6213 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/15/2002Test Method:FLOWING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1209
CASING_PRESS 1700
TUBING_PRESS 1700
Perforation Data:
Interval Top:4964 ft.# Of Holes:79
Interval Bottom:6531 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 1/31/2003                 Interval Top: 4964 ft.    Interval Bottom: 6531 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/14/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6212 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/15/2002Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1209
CASING_PRESS 1700
TUBING_PRESS 1700
Perforation Data:
Interval Top:4964 ft.# Of Holes:79
Interval Bottom:6531 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)18
Total Gas Produced (MCF)9120
GOR506666
GOR DeterminationMCFE
Average BOE per Day4.357
Average MCFE per Day25.286

 Federal Financial Assurance  i Y

 Tribal Well  i No
