COGIS - WELL SCOUT CARD

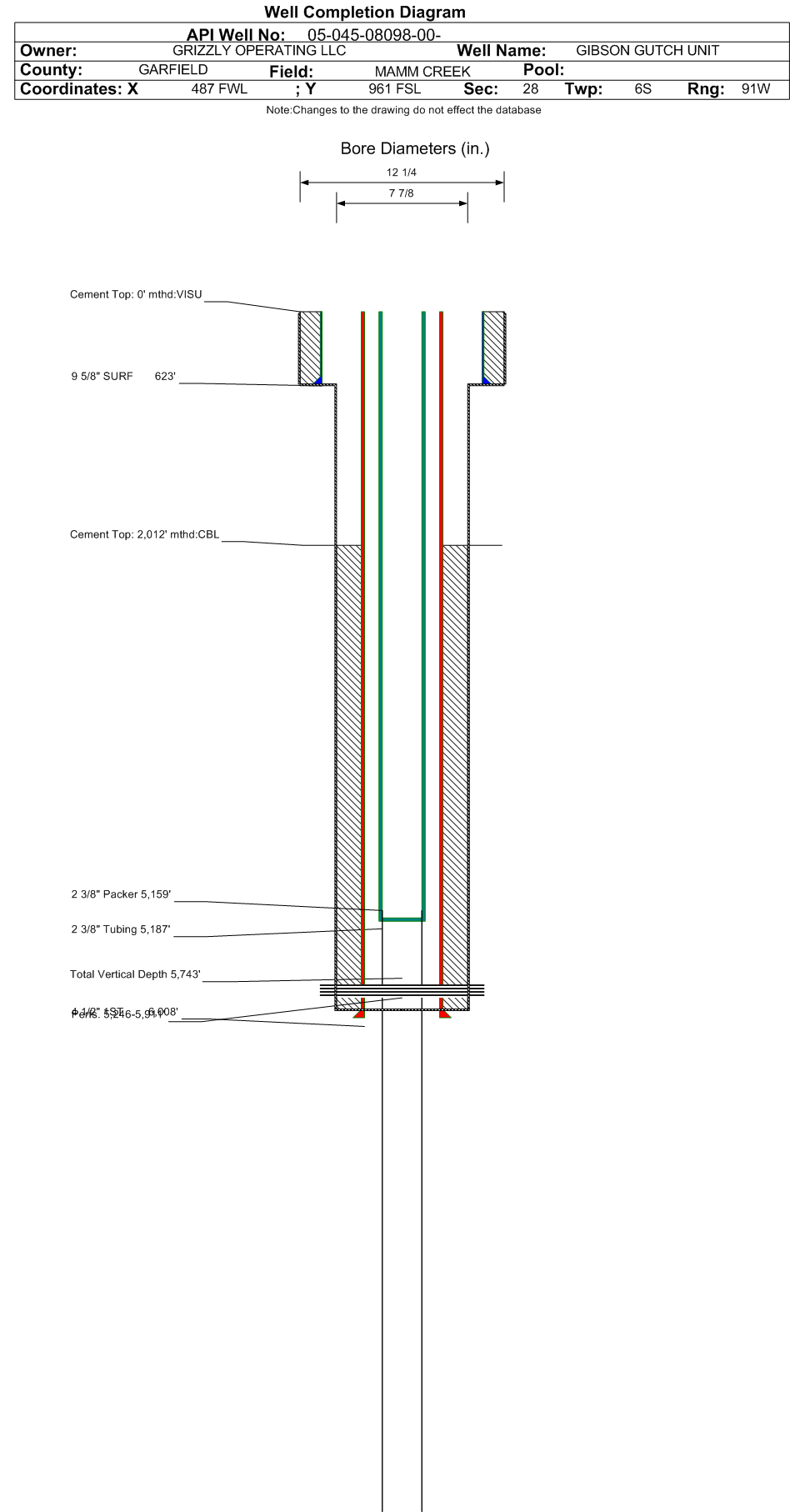

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08098		Well Classification: GW Status: PA - 12/6/2019
Well Name/No:GIBSON GUTCH UNIT #16-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/6/2019
FacilityID:263041LocationID:335245
County:GARFIELD #045Location:SWSW 28 6S91W 6
Field:MAMM CREEK - #52500Elevation:6176 ft.
Basin:PICEANCE BASIN
Planned Location:961FSL  487 FWLLat/Long: 39.494251 / -107.566730Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.494350 / -107.566483Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/6/2019             Measured TD: 6008 ft.    Vertical TD: 5743 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/6/2019
Wellbore PermitDIRECTIONAL
Permit #:20020565 Expiration Date:3/19/2003
Proposed Top PZ Location:Sec:29 Twp: 6S 91W Footage: 660 FSL  660 FEL
Bottom Hole Location:Sec:29 Twp: 6S 91W Footage: 660 FSL  660 FEL
Proposed Depth/Form:5700 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:GIBSON GUTCH UN Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:5/13/2002
Spud Date:5/3/2002Spud Date Is:ACTUAL
Measured TD:6008 ft.Measured PB depth:5968 ft.
True Vertical TD:5743 ft.True Vertical PB depth:5703 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:GR/SP/CNL/FDC/DIL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 623 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 623 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6008 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1000, Top: 2012 ft., Bottom: 6008 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3830 ft.NN
OHIO CREEK3830 ft.4305 ft.NN
WILLIAMS FORK4305 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  AB - 12/6/2019                 Interval Top: 5246 ft.    Interval Bottom: 5911 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/13/2002
Treatment Summary:5246-5426-FRACED WITH 2752 BBLS 2% KCL + 342,540# 20/40 SAND 5754-5911-FRACED WITH 968 BBLS 2% KCL + 119,437# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5187 ft.
Tubing Packer Depth:5179 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 5
CALC_BBLS_H2O 5
CALC_BBLS_OIL 11
CALC_GOR 61636
CALC_MCF_GAS 678
CASING_PRESS 600
MCF_GAS 678
TUBING_PRESS 600
Perforation Data:
Interval Top:5246 ft.# Of Holes:31
Interval Bottom:5911 ft.Hole Size:0.328125 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/06/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
