COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08095		Well Classification: GW Status: PR - 2/19/2003
Well Name/No:FEDERAL #RWF 42-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 50858
Facility Status:PRStatus Date2/19/2003
FacilityID:263036LocationID:335777
County:GARFIELD #045Location:SENE 17 6S94W 6
Field:RULISON - #75400Elevation:5818 ft.
Basin:PICEANCE BASIN
Planned Location:2229FNL  473 FELLat/Long: 39.526239 / -107.904561Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.526350 / -107.904631Lat/Long Source: Field Measured

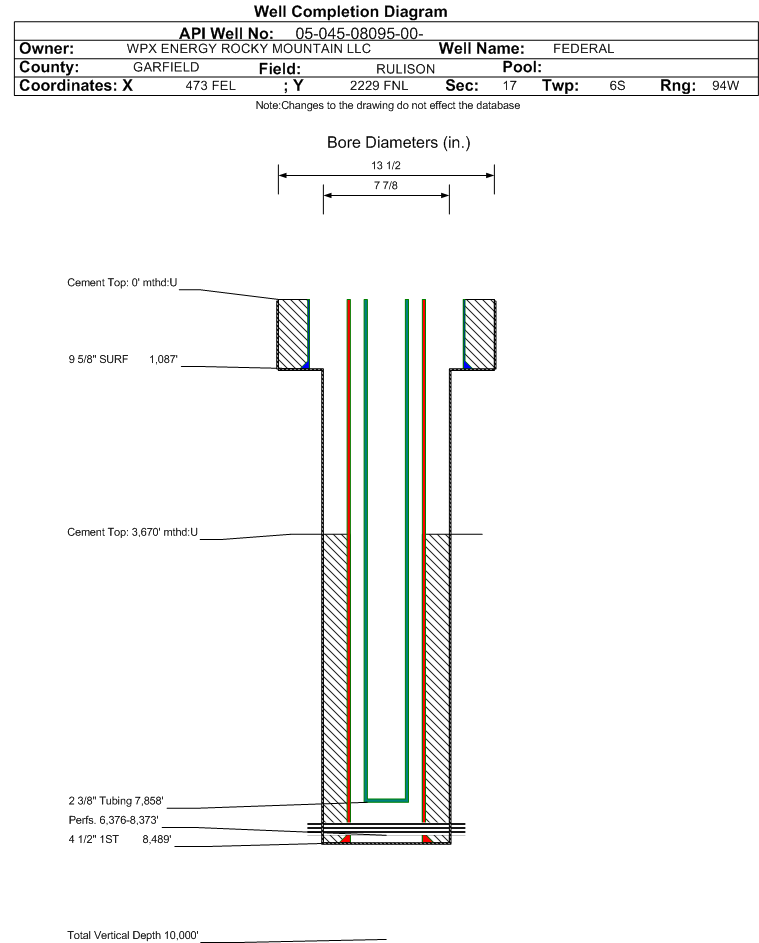

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/19/2003             Measured TD: 8498 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/19/2003
Wellbore Permit
Permit #:20020533 Expiration Date:3/19/2003
Proposed Depth/Form:8340 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: E/2
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:12/20/2002
Spud Date:10/25/2002Spud Date Is:ACTUAL
Measured TD:8498 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL - GR - SP, NEUTRON DENSITY, C B L
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1087 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 1087 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8489 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1160, Top: 3670 ft., Bottom: 8489 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2287 ft.NN
MESAVERDE4746 ft.NN
CAMEO COAL7525 ft.NN
ROLLINS8445 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/19/2003                 Interval Top: 6376 ft.    Interval Bottom: 8373 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/20/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7858 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/19/2003Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 2072
CASING_PRESS 2331
TUBING_PRESS 2257
Perforation Data:
Interval Top:6376 ft.# Of Holes:80
Interval Bottom:8373 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)25
Total Gas Produced (MCF)14875
GOR595000
GOR DeterminationMCFE
Average BOE per Day7.094
Average MCFE per Day41.167

 Federal Financial Assurance  i Y

 Tribal Well  i No
