COGIS - WELL SCOUT CARD

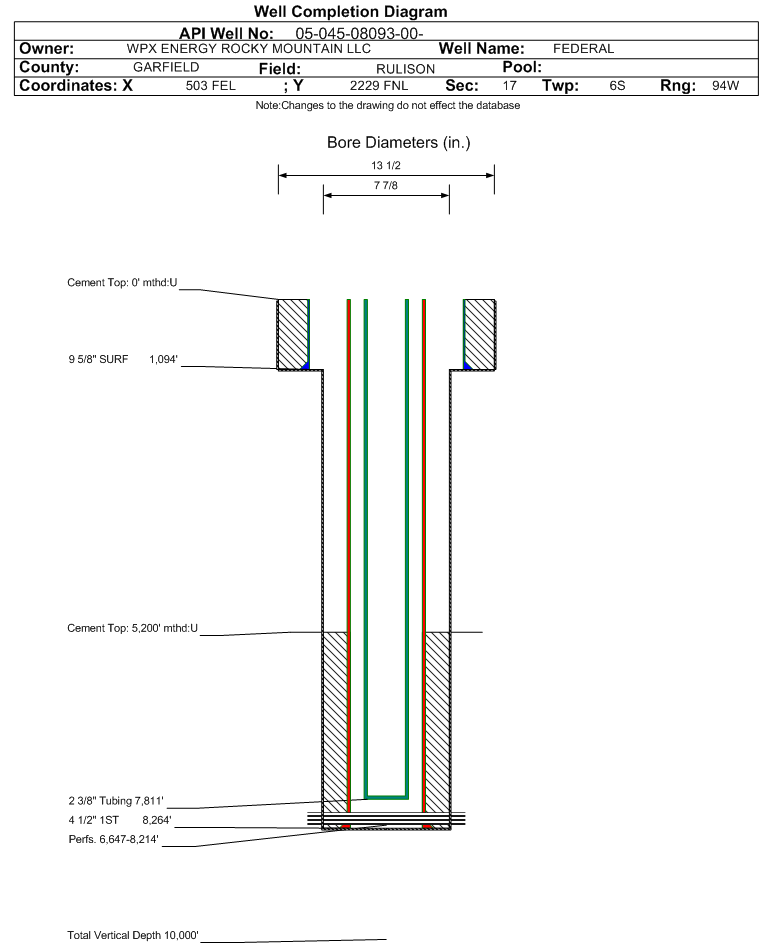

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08093		Well Classification: GW Status: PR - 1/28/2003
Well Name/No:FEDERAL #RWF 32-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 50858
Facility Status:PRStatus Date1/28/2003
FacilityID:263034LocationID:335777
County:GARFIELD #045Location:SENE 17 6S94W 6
Field:RULISON - #75400Elevation:5820 ft.
Basin:PICEANCE BASIN
Planned Location:2229FNL  503 FELLat/Long: 39.526239 / -107.904671Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.526355 / -107.904740Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/28/2003             Measured TD: 8272 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/28/2003
Wellbore PermitDIRECTIONAL
Permit #:20020534 Expiration Date:3/19/2003
Proposed Top PZ Location:Sec:17 Twp: 6S 94W Footage: 1670 FNL  1369 FEL
Bottom Hole Location:Sec:17 Twp: 6S 94W Footage: 1617 FNL  1456 FEL
Proposed Depth/Form:8480 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: E/2
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:12/20/2002
Spud Date:10/6/2002Spud Date Is:ACTUAL
Measured TD:8272 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1591 FNL  1433 FEL
Bottom Hole Location:Sec:17 Twp: 6S 94WFootage: 1572 FNL  1477 FEL
Log Types:CASED HOLE NEUTRON DENSITY AND GAMMA RAY, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1094 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: 1094 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8264 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 5200 ft., Bottom: 8264 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4825 ft.NN
CAMEO7666 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/28/2003                 Interval Top: 6647 ft.    Interval Bottom: 8214 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/20/2002
Treatment Summary:SEE SCANNED DOC# 1098771
Tubing Size:2.375 in.Tubing Setting Depth:7811 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/28/2003Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1627
CASING_PRESS 2104
TUBING_PRESS 2008
Perforation Data:
Interval Top:6647 ft.# Of Holes:76
Interval Bottom:8214 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)11371
GOR568550
GOR DeterminationMCFE
Average BOE per Day5.425
Average MCFE per Day31.483

 Federal Financial Assurance  i Y

 Tribal Well  i No
