Wellbore #00 Wellbore Classification: GW Status: PR - 6/16/2005 Measured TD: 8710 ft. Vertical TD: 8601 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/16/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20020363 | Expiration Date: | 3/11/2003 | | Proposed Top PZ Location: | Sec:10 Twp: 7S 93W | Footage: 1659 FNL 2444 FEL | | Bottom Hole Location: | Sec:10 Twp: 7S 93W | Footage: 1662 FNL 2310 FEL | | Proposed Depth/Form: | 9000 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: |
| | |

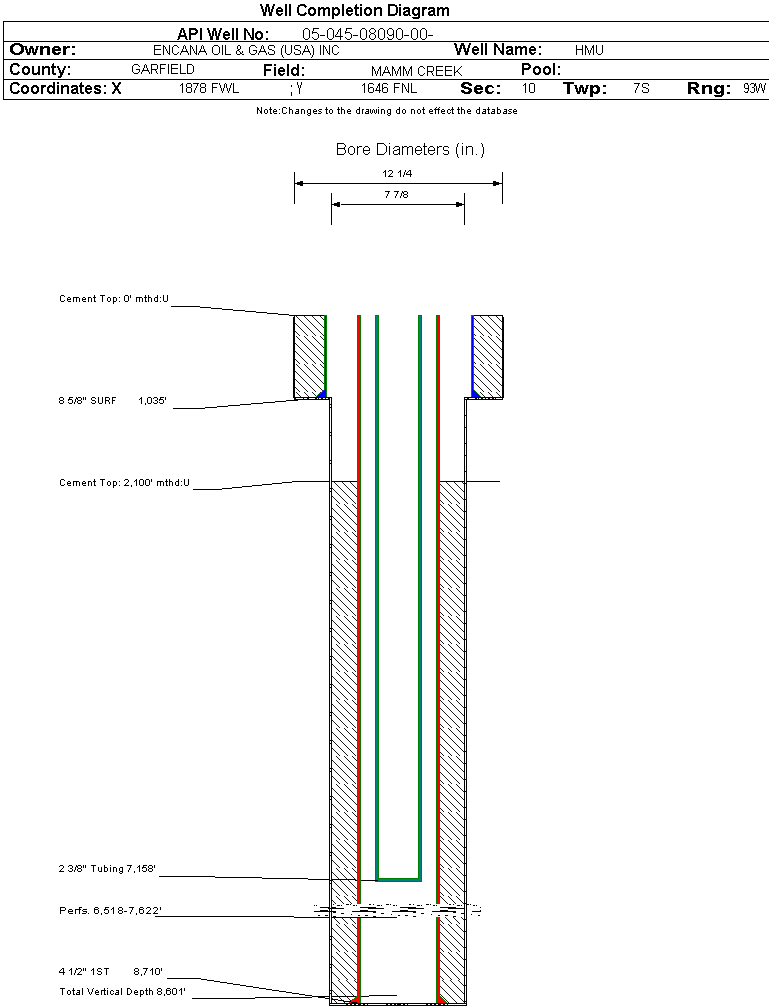

| Wellbore Completed | | Completion Date: | 10/24/2002 | | Spud Date: | 6/3/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 8710 ft. | Measured PB depth: | | | True Vertical TD: | 8601 ft. | True Vertical PB depth: | 8115 ft. | | Top PZ Location: | Sec: Twp: | Footage: FL FL | | Bottom Hole Location: | Sec: Twp: | Footage: FL FL | | Log Types: | CBL / GR / CCL / TEMP, AI / LC / GR, CN / LD / GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1035 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 1035 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8710 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1270, Top: 2100 ft., Bottom: 8710 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5331 ft. | N | N | | WILLIAMS FORK | 5332 ft. | 8458 ft. | N | N | | ROLLINS | 8459 ft. | 8710 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 6/16/2005 Interval Top: 6518 ft. Interval Bottom: 7622 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 6/8/2005 | Choke Size: | 0.406 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/1/2005 | | Treatment Summary: | STAGE 4R TREATED WITH A TOTAL OF: 1532 BBLS OF SLICKWATER, 60,000 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7158 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/16/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 2 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 3 | | CALC_BBLS_OIL | 2 | | CALC_GOR | 385500 | | CALC_MCF_GAS | 771 | | CASING_PRESS | 450 | | MCF_GAS | 771 | | TUBING_PRESS | 250 |
| | Perforation Data: | | Interval Top: | 6518 ft. | # Of Holes: | 76 | | Interval Bottom: | 7622 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 14312 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 6.763 |
| Average MCFE per Day | 39.220 |
| Federal Financial Assurance | i | Y |
|
|
