COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08086		Well Classification: GW Status: PR - 8/3/2002
Well Name/No:PA #21-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/3/2002
FacilityID:262977LocationID:334725
County:GARFIELD #045Location:NWNW 5 7S95W 6
Field:PARACHUTE - #67350Elevation:5163 ft.
Basin:PICEANCE BASIN
Planned Location:209FNL  1125 FWLLat/Long: 39.473299 / -108.027124Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.473329 / -108.027145Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/3/2002             Measured TD: 6520 ft.    Vertical TD: 6422 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/3/2002
Wellbore PermitDIRECTIONAL
Permit #:20020403 Expiration Date:3/10/2003
Proposed Top PZ Location:Sec:5 Twp: 7S 95W Footage: 773 FNL  1763 FWL
Bottom Hole Location:Sec:5 Twp: 7S 95W Footage: 837 FNL  1856 FWL
Proposed Depth/Form:6580 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-5 , Unit Acreage: 320, Drill Unit: N/2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:8/1/2002
Spud Date:6/17/2002Spud Date Is:ACTUAL
Measured TD:6520 ft.Measured PB depth:6439 ft.
True Vertical TD:6422 ft.True Vertical PB depth:6340 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY

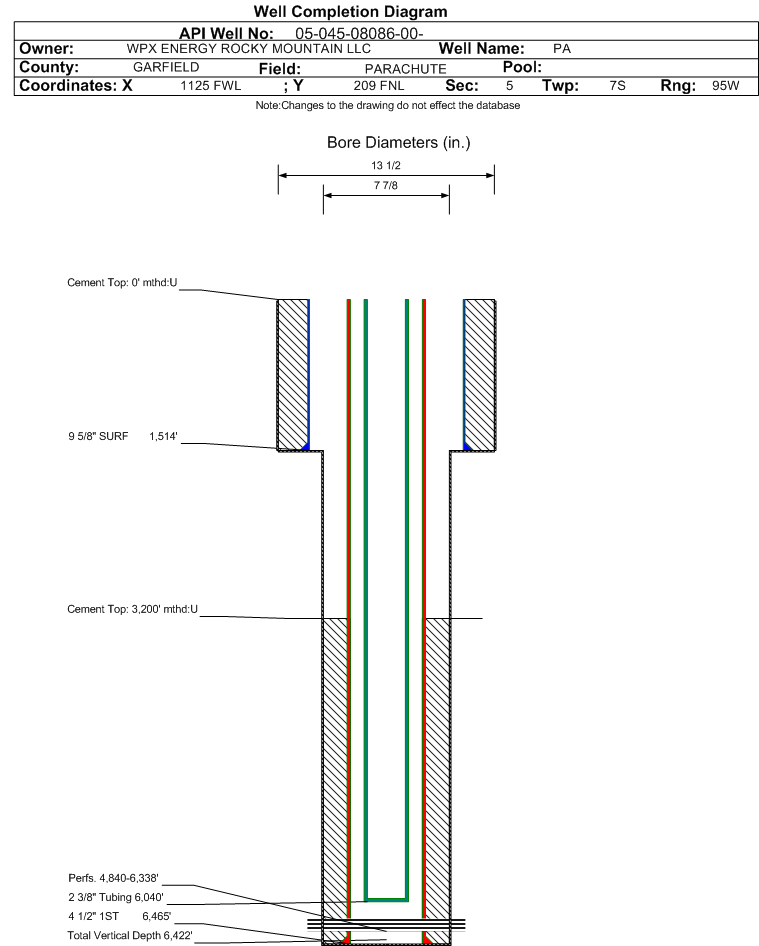

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1514 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 0 ft., Bottom: 1514 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6465 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 3200 ft., Bottom: 6465 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G1317 ft.NN
FORT UNION1672 ft.NN
MESAVERDE3437 ft.NN
CAMEO5966 ft.NN
ROLLINS6546 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/3/2002                  Interval Top: 4840 ft.    Interval Bottom: 6338 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/1/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6040 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/3/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1093
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1773
CASING_PRESS 2037
MCF_GAS 1773
TUBING_PRESS 1917
Perforation Data:
Interval Top:4840 ft.# Of Holes:85
Interval Bottom:6338 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)11690
GOR730625
GOR DeterminationMCFE
Average BOE per Day5.574
Average MCFE per Day32.298

 Federal Financial Assurance  i

 Tribal Well  i No
