COGIS - WELL SCOUT CARD

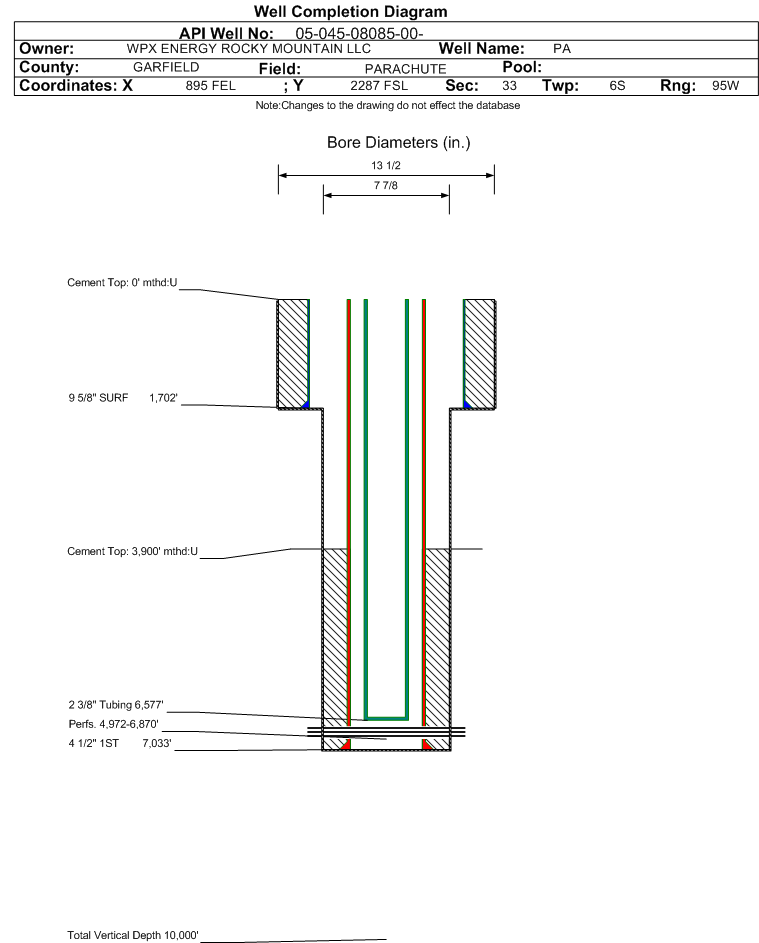

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08085		Well Classification: GW Status: PR - 9/1/2002
Well Name/No:PA #43-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2002
FacilityID:262976LocationID:335303
County:GARFIELD #045Location:NESE 33 6S95W 6
Field:PARACHUTE - #67350Elevation:5324 ft.
Basin:PICEANCE BASIN
Planned Location:2287FSL  895 FELLat/Long: 39.480069 / -107.996993Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.479797 / -107.996925Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2002             Measured TD: 7034 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2002
Wellbore Permit
Permit #:20020479 Expiration Date:3/10/2003
Proposed Depth/Form:7020 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 160, Drill Unit: SE/4
Wellbore Completed
Completion Date:8/22/2002
Spud Date:6/17/2002Spud Date Is:ACTUAL
Measured TD:7034 ft.Measured PB depth:6957 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL-GR-SP-NEUTRON DENSITY,CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1702 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: , Bottom: 1702 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7033 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1070, Top: 3900 ft., Bottom: 7033 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1479 ft.NN
FORT UNION1830 ft.NN
MESAVERDE3649 ft.NN
CAMEO COAL6528 ft.NN
ROLLINS6960 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/1/2002                  Interval Top: 4972 ft.    Interval Bottom: 6870 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/22/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6577 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/1/2002Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1516
CASING_PRESS 1703
TUBING_PRESS 1581
Perforation Data:
Interval Top:4972 ft.# Of Holes:103
Interval Bottom:6870 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)10832
GOR833230
GOR DeterminationMCFE
Average BOE per Day5.158
Average MCFE per Day29.900

 Federal Financial Assurance  i

 Tribal Well  i No
