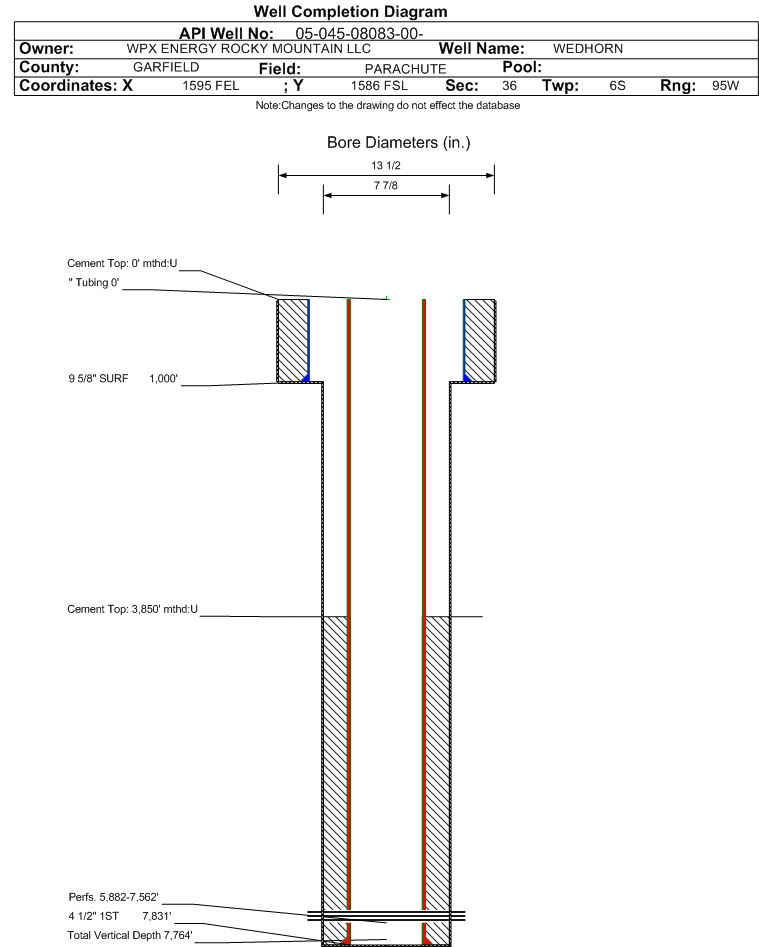

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08083		Well Classification: OW Status: PR - 8/23/2002
Well Name/No:WEDHORN #PA 43-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/23/2002
FacilityID:262974LocationID:334815
County:GARFIELD #045Location:NWSE 36 6S95W 6
Field:PARACHUTE - #67350Elevation:5336 ft.
Basin:PICEANCE BASIN
Planned Location:1586FSL  1595 FELLat/Long: 39.478519 / -107.943591Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.478261 / -107.943539Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 8/23/2002             Measured TD: 7858 ft.    Vertical TD: 7764 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 8/23/2002
Wellbore PermitDIRECTIONAL
Permit #:20020424 Expiration Date:3/10/2003
Proposed Top PZ Location:Sec:36 Twp: 6S 95W Footage: 2088 FSL  901 FEL
Bottom Hole Location:Sec:36 Twp: 6S 95W Footage: 2134 FSL  833 FEL
Proposed Depth/Form:7780 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:8/14/2002
Spud Date:5/11/2002Spud Date Is:ACTUAL
Measured TD:7858 ft.Measured PB depth:
True Vertical TD:7764 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:THERMAL MULTIAGE DECAY LITHOLOGY, C B L
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1000 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 1000 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7831 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1000, Top: 3850 ft., Bottom: 7830 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1893 ft.NN
MESAVERDE4357 ft.NN
CAMEO7053 ft.NN
ROLLINS7733 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 8/23/2002                 Interval Top: 5882 ft.    Interval Bottom: 7562 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.172 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/14/2002
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/23/2002Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_MCF_GAS 1587
CASING_PRESS 2226
MCF_GAS 0
TUBING_PRESS 2121
Perforation Data:
Interval Top:5882 ft.# Of Holes:96
Interval Bottom:7562 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)13378
GOR786941
GOR DeterminationMCFE
Average BOE per Day6.364
Average MCFE per Day36.928

 Federal Financial Assurance  i

 Tribal Well  i No
