COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08074		Well Classification: GW Status: PR - 12/1/2017
Well Name/No:FEDERAL #PA 23-26
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62161
Facility Status:PRStatus Date12/1/2017
FacilityID:262909LocationID:335330
County:GARFIELD #045Location:NESW 26 6S95W 6
Field:PARACHUTE - #67350Elevation:5635 ft.
Basin:PICEANCE BASIN
Planned Location:2128FSL  2409 FWLLat/Long: 39.494339 / -107.966892Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.494353 / -107.966997Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2017             Measured TD: 8211 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2017
Wellbore Permit
Permit #:20020437 Expiration Date:3/3/2003
Proposed Depth/Form:8150 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: W/2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: , Weight: 45 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:11/23/2002
Spud Date:10/8/2002Spud Date Is:ACTUAL
Measured TD:8211 ft.Measured PB depth:8133 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL - GR - SP NEUTRON DENSITY GAMMA RAY, C B L

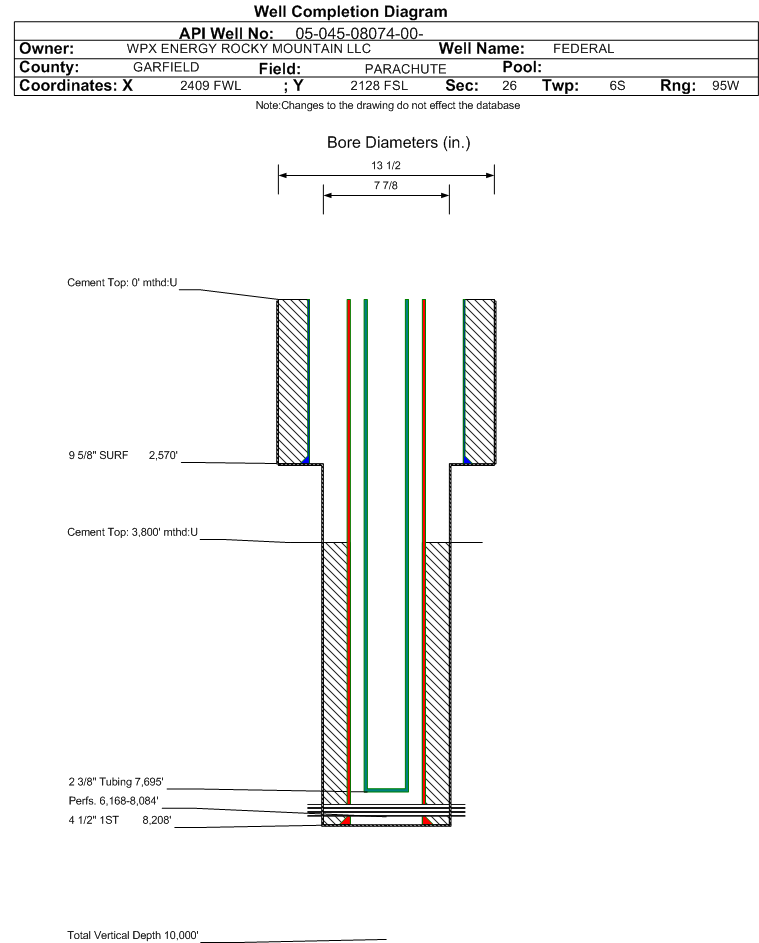

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2570 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 1300, Top: 0 ft., Bottom: 2569 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8208 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1185, Top: 3800 ft., Bottom: 8207 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G2360 ft.NN
FORT UNION2704 ft.NN
MESAVERDE4665 ft.NN
CAMEO COAL7416 ft.NN
ROLLINS8137 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2017                 Interval Top: 6168 ft.    Interval Bottom: 8084 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.172 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/23/2002
Treatment Summary:750 GALS 7 1/2% HCL, 140928# 20/40, 3031 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:7695 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/20/2002Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1100
CALC_MCF_GAS 1253
CASING_PRESS 1689
TUBING_PRESS 1719
Perforation Data:
Interval Top:6168 ft.# Of Holes:86
Interval Bottom:8084 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)37
Total Gas Produced (MCF)13727
GOR371000
GOR DeterminationMCFE
Average BOE per Day6.587
Average MCFE per Day38.192

 Federal Financial Assurance  i Y

 Tribal Well  i No
