Wellbore #00 Wellbore Classification: GW Status: PR - 10/3/2002 Measured TD: 7185 ft. Vertical TD: 6951 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/3/2002 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20020427 | Expiration Date: | 2/27/2003 | | Proposed Top PZ Location: | Sec:32 Twp: 6S 92W | Footage: 2644 FNL 1379 FEL | | Bottom Hole Location: | Sec:32 Twp: 6S 92W | Footage: 2620 FSL 1325 FEL | | Proposed Depth/Form: | 7300 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC 55279X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

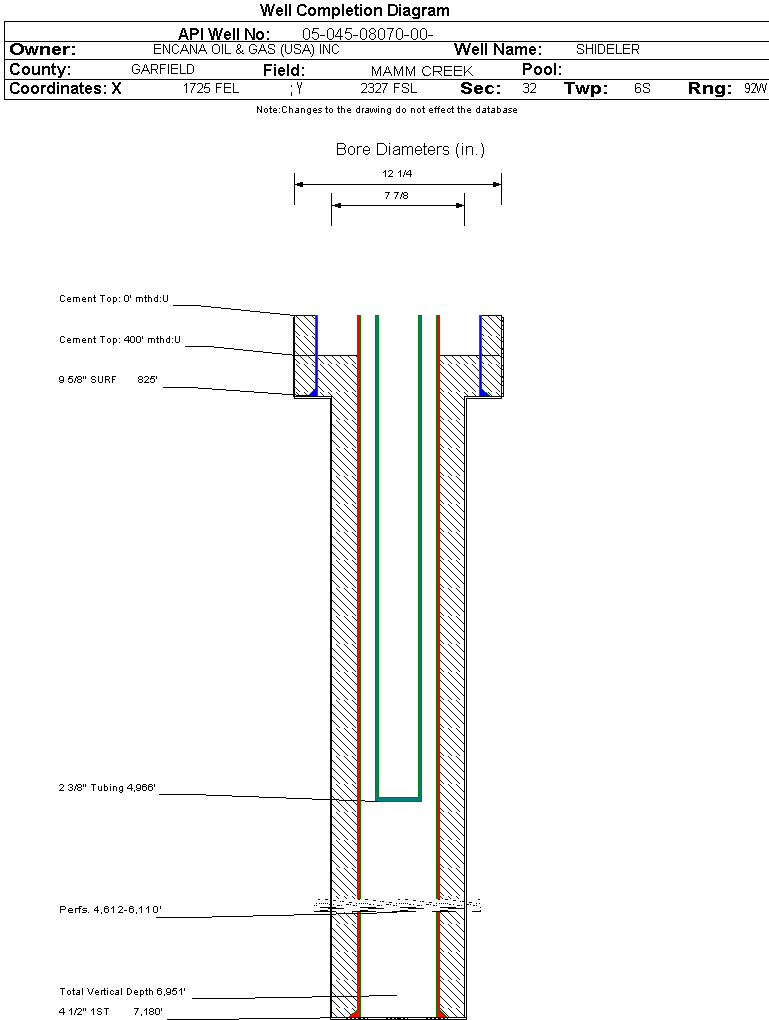

| Wellbore Completed | | Completion Date: | 9/18/2002 | | Spud Date: | 6/1/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 7185 ft. | Measured PB depth: | | | True Vertical TD: | 6951 ft. | True Vertical PB depth: | 6827 ft. | | Top PZ Location: | Sec: Twp: | Footage: FL FL | | Bottom Hole Location: | Sec: Twp: | Footage: FL FL | | Log Types: | CBL / GR / CCL / TEMP, AI/LC/GR, CN/TLD/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 825 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 450, Top: 0 ft., Bottom: 825 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7180 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1280, Top: 400 ft., Bottom: 7180 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3547 ft. | N | N | | WILLIAMS FORK | 3548 ft. | 6693 ft. | N | N | | ROLLINS | 6694 ft. | 7185 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 10/3/2002 Interval Top: 4612 ft. Interval Bottom: 6110 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 10/3/2002 | Choke Size: | 0.370 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/18/2002 | | Treatment Summary: | STAGE 1;ACID BALLOUT,5723-6110'-20 HOLES,.34",5452 BBL KCL SLICKWATER,230,000#20/40 SAND. STAGE 2: ACID BALLOUT,5087-5367',26 HOLES,.34" 5715 BBL KCL SLICKWATER,253,000#20/40 SAND; STAGE 3:ACID BALLOUT,4830-5028',16 HOLES,.34",3020 BBL KCL SLICKWATER,132,000#20/40 SAND. STAGE 4: ACID BALLOUT, 4612-4692', 14 HOLES,.34",3330 BBL KCL SLICKWATER, 148,300#20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4966 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/3/2002 | Test Method: | FLOWING | | Hours Tested: | | Gas Type: | DRY | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 33 | | BBLS_OIL | 42 | | CASING_PRESS | 712 | | MCF_GAS | 2028 | | TUBING_PRESS | 552 |
| | Perforation Data: | | Interval Top: | 4612 ft. | # Of Holes: | 76 | | Interval Bottom: | 6110 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 43 |
| Total Gas Produced (MCF) | 10065 |
| GOR | 234069 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.875 |
| Average MCFE per Day | 28.278 |
| Federal Financial Assurance | i | Y |
|
|
