COGIS - WELL SCOUT CARD

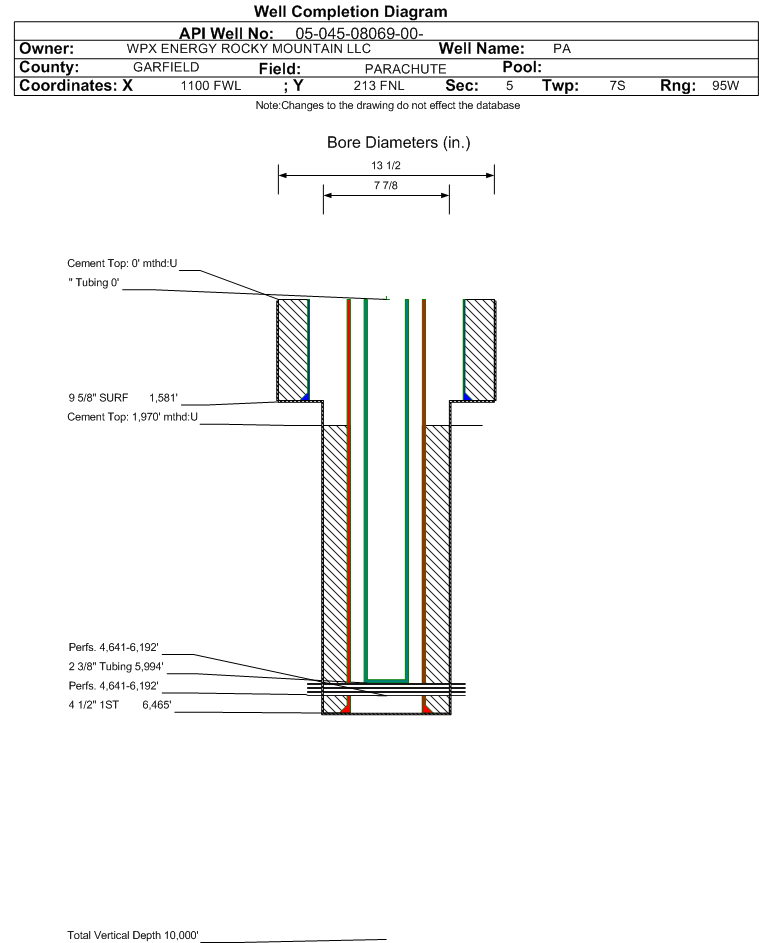

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08069		Well Classification: GW Status: PR - 7/27/2002
Well Name/No:PA #311-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/27/2002
FacilityID:262892LocationID:334725
County:GARFIELD #045Location:NWNW 5 7S95W 6
Field:PARACHUTE - #67350Elevation:5163 ft.
Basin:PICEANCE BASIN
Planned Location:213FNL  1100 FWLLat/Long: 39.473289 / -108.027214Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.473323 / -108.027198Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/27/2002             Measured TD: 6468 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/27/2002
Wellbore Permit
Permit #:20020401 Expiration Date:2/27/2003
Proposed Depth/Form:6610 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-34 , Unit Acreage: 320, Drill Unit: N/2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:7/24/2002
Spud Date:6/2/2002Spud Date Is:ACTUAL
Measured TD:6468 ft.Measured PB depth:6306 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:GIL-GR-SP-NEUTRON DENSITY & CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1581 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 0 ft., Bottom: 1581 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6465 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1050, Top: 1970 ft., Bottom: 6465 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH1344 ft.NN
FORT UNION1677 ft.NN
MESAVERDE3333 ft.NN
CAMEO5879 ft.NN
ROLLINS6453 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/27/2002                 Interval Top: 4641 ft.    Interval Bottom: 6192 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/24/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5994 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/27/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 75
BBLS_OIL 0
BTU_GAS 1069
CALC_BBLS_H2O 75
CALC_MCF_GAS 1495
CASING_PRESS 1922
MCF_GAS 1495
TUBING_PRESS 1784
Perforation Data:
Interval Top:4641 ft.# Of Holes:252
Interval Bottom:6192 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 7/27/2002                 Interval Top: 4641 ft.    Interval Bottom: 6192 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/24/2002
Treatment Summary:INTERVAL TOP 5906 147,133#20/40 SAND & 3232 BBLS SLICK WATER. TOP INTERVAL 5632 W/36 HOLES 96,238# 20/40 SAND & 2270 BBL SLICK WATER.TOP INTERVAL 5357' W/48 HOLES 122,880 #20/40 SAND & 2764 BBLS SLICK WATER. TOP INTERVAL 4994' W/48 HOLES 123,948#(CONT)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:4641 ft.# Of Holes:
Interval Bottom:6192 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)12735
GOR636750
GOR DeterminationMCFE
Average BOE per Day6.076
Average MCFE per Day35.229

 Federal Financial Assurance  i

 Tribal Well  i No
