COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08059		Well Classification: CBM Status: PR - 7/1/2011
Well Name/No:GM #32-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 46604
Facility Status:PRStatus Date7/1/2011
FacilityID:262833LocationID:335459
County:GARFIELD #045Location:SWNE 27 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5669 ft.
Basin:PICEANCE BASIN
Planned Location:2446FNL  1769 FELLat/Long: 39.495748 / -108.091506Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.495748 / -108.091472Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

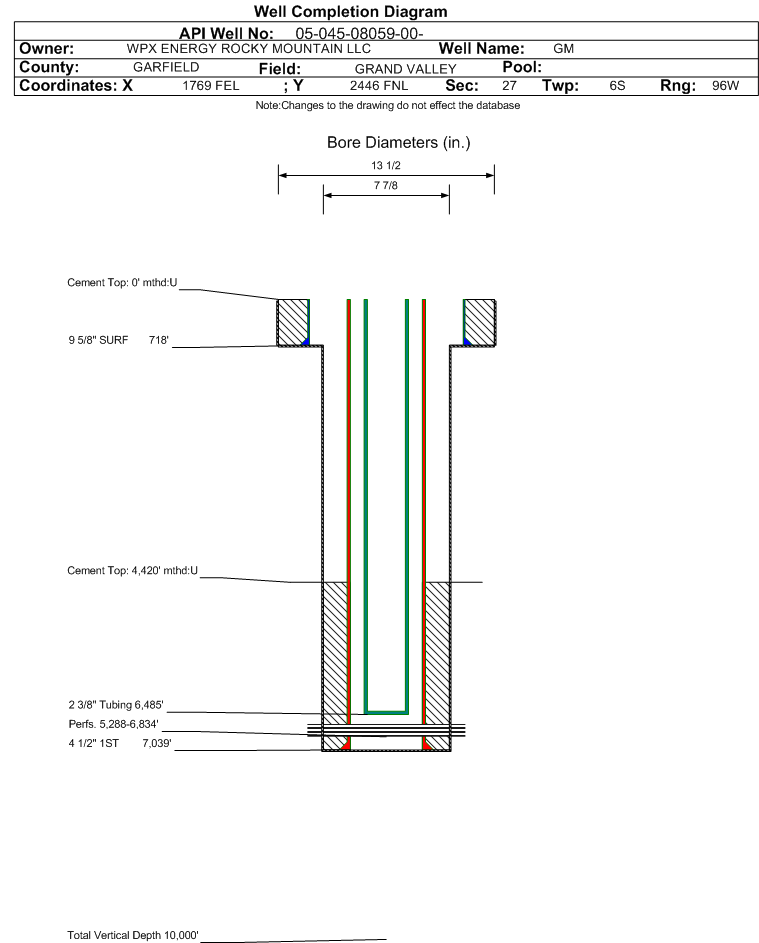

Wellbore #00             Wellbore Classification: CBM             Status: PR - 7/1/2011             Measured TD: 7047 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 7/1/2011
Wellbore Permit
Permit #:20030103 Expiration Date:2/20/2004
Proposed Depth/Form:7025 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-34 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:9/18/2003
Spud Date:8/17/2003Spud Date Is:ACTUAL
Measured TD:7047 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:HIGH RES INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 718 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 380, Top: , Bottom: 718 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7039 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 585, Top: 4420 ft., Bottom: 7039 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION2429 ft.NN
MESAVERDE3889 ft.NN
CAMEO COAL6538 ft.NN
ROLLINS6966 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/1/2011                  Interval Top: 5288 ft.    Interval Bottom: 6834 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/6/2003Choke Size:0.210 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:6485 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/6/2003Test Method:FLOWING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 833
CASING_PRESS 495
TUBING_PRESS 577
Perforation Data:
Interval Top:5288 ft.# Of Holes:72
Interval Bottom:6834 ft.Hole Size:0.43 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 7/1/2011

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:9/18/2003
Treatment Summary:6464-6834';1000GAL 7 1/2%HCL,126994#20/40,2963BBL SLICK WTR;5922-6273';1000GAL 7 1/2%HCL,151979#20/40,3453BBL SLK WTR;5536-5764';1000GAL 7 1/2%HCL 152075#20/40,3597 BBL SLK WTR;5288-5467';1000GAL 7 1/2%HCL,115000#20/40,2700BBL SLK WTR.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)9364
GOR585250
GOR DeterminationMCFE
Average BOE per Day4.466
Average MCFE per Day25.918

 Federal Financial Assurance  i

 Tribal Well  i No
