COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08058		Well Classification: GW Status: PR - 10/6/2003
Well Name/No:GM #332-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 46604
Facility Status:PRStatus Date10/6/2003
FacilityID:262832LocationID:335459
County:GARFIELD #045Location:SWNE 27 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5671 ft.
Basin:PICEANCE BASIN
Planned Location:2432FNL  1789 FELLat/Long: 39.495788 / -108.091576Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.495767 / -108.091510Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/6/2003             Measured TD: 7062 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/6/2003
Wellbore PermitDIRECTIONAL
Permit #:20030104 Expiration Date:2/20/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1807 FNL  1808 FEL
Bottom Hole Location:Sec: Twp: Footage: 1732 FNL  1808 FEL
Proposed Depth/Form:7035 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-34 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:9/15/2003
Spud Date:7/29/2003Spud Date Is:ACTUAL
Measured TD:7062 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1807 FNL  1808 FEL
Bottom Hole Location:Sec: Twp: Footage: 1732 FNL  1808 FEL
Log Types:HIG RES IND.,SPECTRAL DENS.DUAL SPACED NEU.,CBL

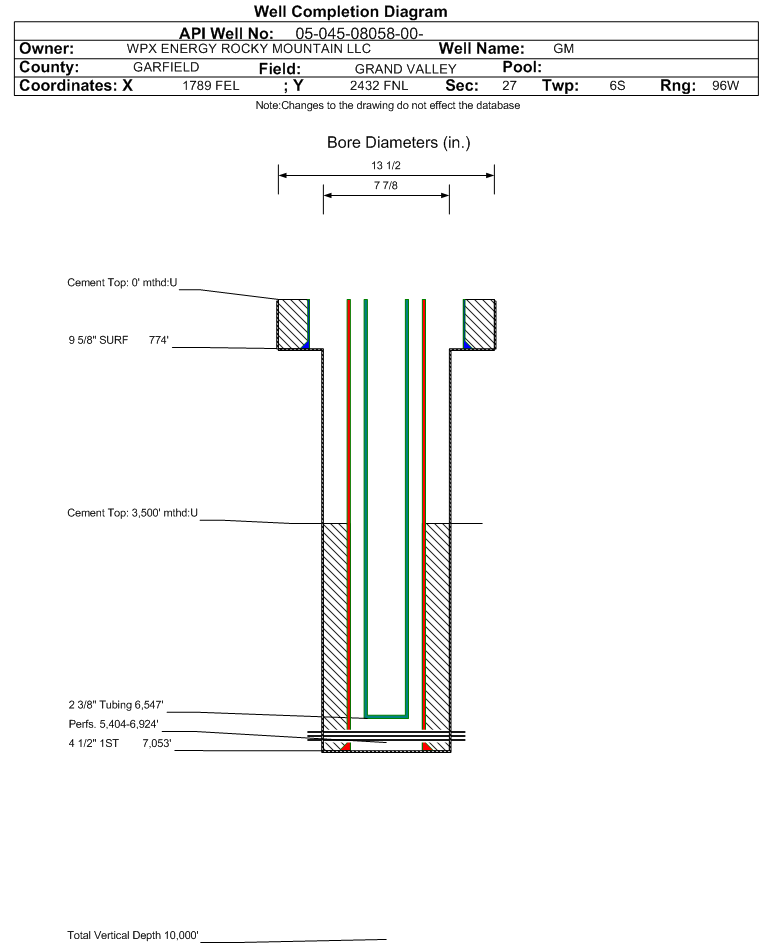

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 774 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 380, Top: 0 ft., Bottom: 774 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7053 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 890, Top: 3500 ft., Bottom: 7052 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2122 ft.NN
FORT UNION2455 ft.NN
MESAVERDE3966 ft.NN
CAMEO COAL6593 ft.NN
ROLLINS7051 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/6/2003                 Interval Top: 5404 ft.    Interval Bottom: 6924 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/15/2003
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6547 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/6/2003Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1083
CALC_MCF_GAS 1262
Perforation Data:
Interval Top:5404 ft.# Of Holes:70
Interval Bottom:6924 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)8735
GOR623928
GOR DeterminationMCFE
Average BOE per Day4.166
Average MCFE per Day24.174

 Federal Financial Assurance  i

 Tribal Well  i No
