Facility Detail

COGIS - WELL SCOUT CARD

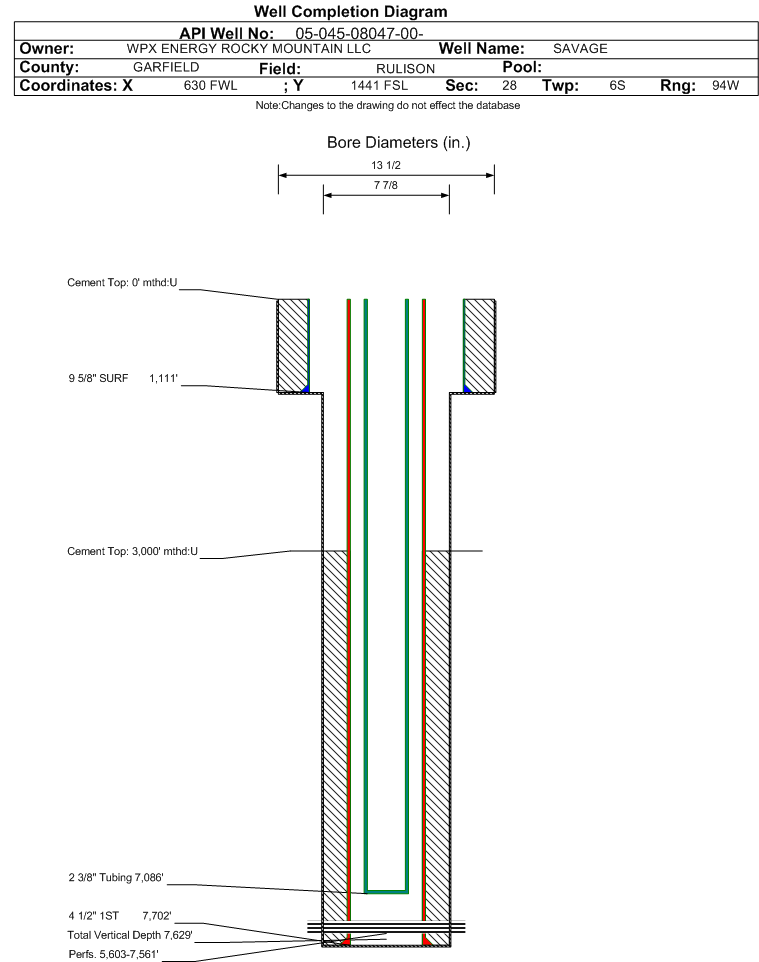

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08047		Well Classification: GW Status: PR - 5/1/2014
Well Name/No:SAVAGE #RMF 343-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2014
FacilityID:262715LocationID:335464
County:GARFIELD #045Location:NWSW 28 6S94W 6
Field:RULISON - #75400Elevation:5338 ft.
Basin:PICEANCE BASIN
Planned Location:1441FSL  630 FWLLat/Long: 39.492979 / -107.900010Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493066 / -107.899959Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2014             Measured TD: 7702 ft.    Vertical TD: 7629 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2014
Wellbore PermitDIRECTIONAL
Permit #:20020286 Expiration Date:2/11/2003
Proposed Top PZ Location:Sec:29 Twp: 6S 94W Footage: 1466 FSL  226 FEL
Bottom Hole Location:Sec:29 Twp: 6S 94W Footage: 1477 FSL  300 FEL
Proposed Depth/Form:7630 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:6/4/2002
Spud Date:3/25/2002Spud Date Is:ACTUAL
Measured TD:7702 ft.Measured PB depth:7678 ft.
True Vertical TD:7629 ft.True Vertical PB depth:7605 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:THERMAL MUTIAGE DECAY LITHOLOGY & CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1111 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: 1111 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7702 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 935, Top: 3000 ft., Bottom: 7702 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1642 ft.NN
MESAVERDE4112 ft.NN
CAMEO6759 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/1/2014                  Interval Top: 5603 ft.    Interval Bottom: 7561 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/4/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7086 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/6/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1058
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1945
CASING_PRESS 2070
MCF_GAS 1945
TUBING_PRESS 1840
Perforation Data:
Interval Top:5603 ft.# Of Holes:92
Interval Bottom:7561 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)10924
GOR682750
GOR DeterminationMCFE
Average BOE per Day5.204
Average MCFE per Day30.200

 Federal Financial Assurance  i

 Tribal Well  i No
