COGIS - WELL SCOUT CARD

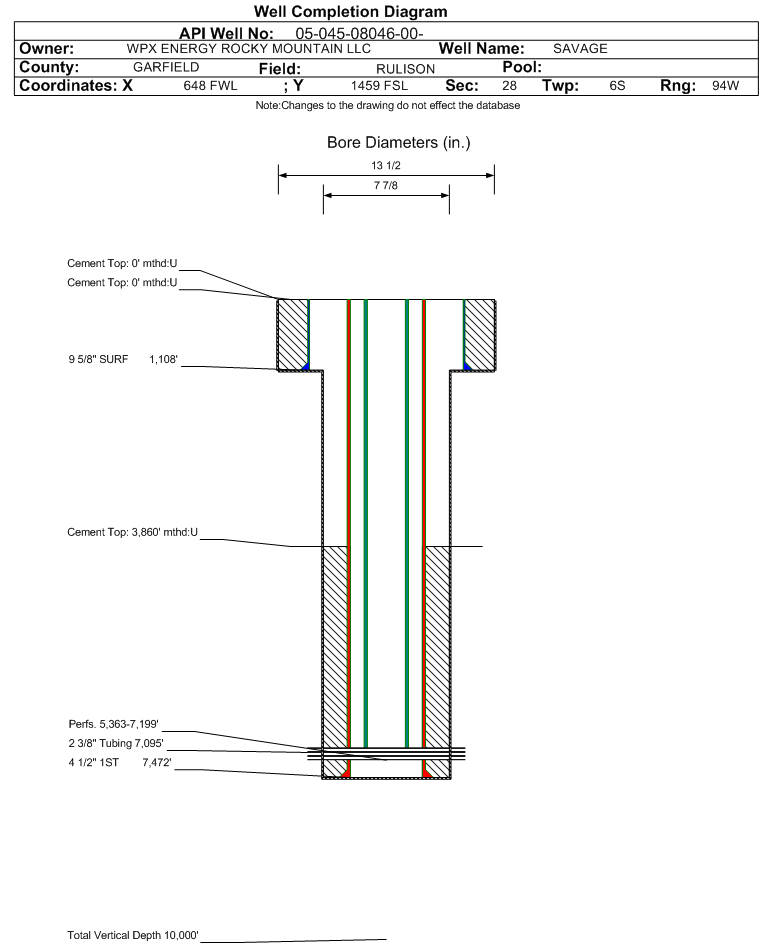

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08046		Well Classification: OW Status: PR - 8/1/2022
Well Name/No:SAVAGE #RMF 313-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2022
FacilityID:262714LocationID:335464
County:GARFIELD #045Location:NWSW 28 6S94W 6
Field:RULISON - #75400Elevation:5339 ft.
Basin:PICEANCE BASIN
Planned Location:1459FSL  648 FWLLat/Long: 39.493029 / -107.899950Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493093 / -107.899923Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 8/1/2022             Measured TD: 7506 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 8/1/2022
Wellbore Permit
Permit #:20020285 Expiration Date:2/11/2003
Proposed Depth/Form:7625 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-34 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:6/4/2002
Spud Date:3/5/2002Spud Date Is:ACTUAL
Measured TD:7506 ft.Measured PB depth:7447 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL - GR - SP AND NEUTRON DENSITY
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method: CALC
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1108 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: , Bottom: 1108 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7472 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 920, Top: 3860 ft., Bottom: 7471 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1621 ft.NN
MESAVERDE4052 ft.NN
CAMEO6701 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 8/1/2022                  Interval Top: 5363 ft.    Interval Bottom: 7199 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/4/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7095 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/6/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1084
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 2270
CASING_PRESS 2140
MCF_GAS 2270
TUBING_PRESS 2310
Perforation Data:
Interval Top:5363 ft.# Of Holes:110
Interval Bottom:7199 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)36
Total Gas Produced (MCF)15066
GOR418500
GOR DeterminationMCFE
Average BOE per Day7.214
Average MCFE per Day41.862

 Federal Financial Assurance  i

 Tribal Well  i No
