COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08044		Well Classification: GW Status: PR - 4/5/2004
Well Name/No:ALP #25-15A1 (B36)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/5/2004
FacilityID:262616LocationID:335228
County:GARFIELD #045Location:NWNE 36 6S93W 6
Field:MAMM CREEK - #52500Elevation:5896 ft.
Basin:PICEANCE BASIN
Planned Location:726FNL  1914 FELLat/Long: 39.488410 / -107.721415Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.488520 / -107.721400Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

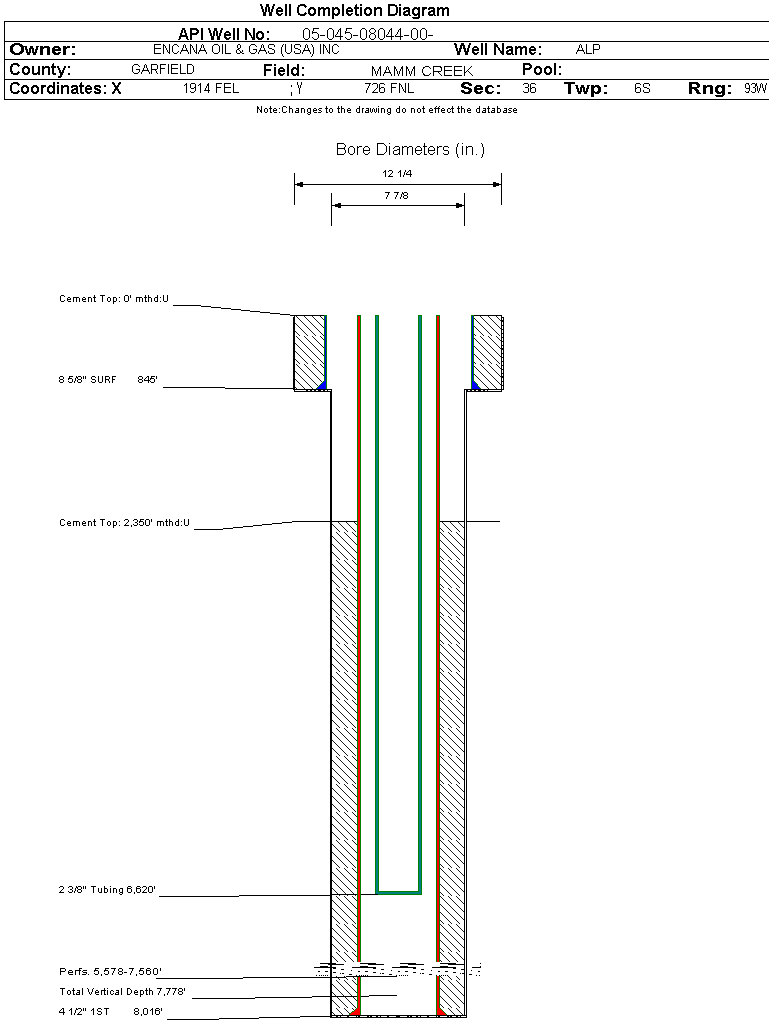

Wellbore #00             Wellbore Classification: GW             Status: PR - 4/5/2004             Measured TD: 8015 ft.    Vertical TD: 7778 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/5/2004
Wellbore Permit
Permit #:20020200 Expiration Date:1/31/2003
Proposed Top PZ Location:Sec:25 Twp: 6S 93W Footage: 679 FSL  1985 FEL
Bottom Hole Location:Sec:25 Twp: 6S 93W Footage: 679 FSL  1985 FEL
Proposed Depth/Form:7980 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC 56608X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/27/2002
Spud Date:2/27/2002Spud Date Is:ACTUAL
Measured TD:8015 ft.Measured PB depth:
True Vertical TD:7778 ft.True Vertical PB depth:7970 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:CBL / GR / CCL, AI / LC / GR, CN / LD / GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 845 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 390, Top: 0 ft., Bottom: 845 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8016 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1415, Top: 2350 ft., Bottom: 8015 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4560 ft.NN
WILLIAMS FORK4561 ft.7696 ft.NN
ROLLINS7697 ft.8015 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 4/5/2004                  Interval Top: 5578 ft.    Interval Bottom: 7560 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:8/28/2002Choke Size:0.370 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/27/2002
Treatment Summary:STAGE 1:NO FRAC. STAGE 2:ACID BALLOUT,7339-7560',22 HOLES,.34",4507 BBL KCL SLICKWATER, 188,120#20/40 SAND.STAGE 3:ACID BALLOUT,6876-7170',20 HOLES,.34",6510 BBL KCL SLICKWATER, 288,872#20/40SAND.STAGE 4:ACID BALLOUT,6243-6719',26 HOLES,.32",5783 BBLKCL SLICKWATER,254,900#20/40 SAND. STAGE 5;ACID BALLOUT, 5578-6118',22HOLES, .32",4646 BBL KCL SLICKWATER,177,070#20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:6620 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/29/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:
Test TypeMeasure
BBLS_H2O 83
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 83
CALC_BBLS_OIL 1
CALC_GOR 1868
CALC_MCF_GAS 1868
CASING_PRESS 1371
GRAVITY_OIL 1868
TUBING_PRESS 1360
Perforation Data:
Interval Top:5578 ft.# Of Holes:90
Interval Bottom:7560 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)24
Total Gas Produced (MCF)10095
GOR420625
GOR DeterminationMCFE
Average BOE per Day4.835
Average MCFE per Day28.022

 Federal Financial Assurance  i Y

 Tribal Well  i No
