COGIS - WELL SCOUT CARD

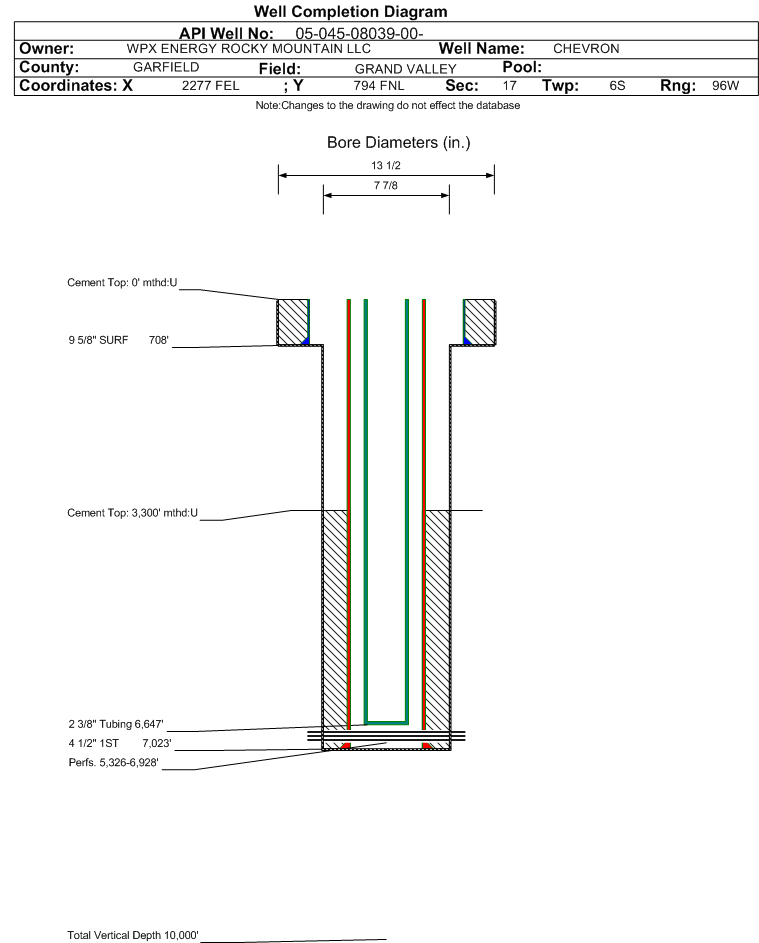

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08039		Well Classification: GW Status: PR - 5/25/2002
Well Name/No:CHEVRON #GM 31-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/25/2002
FacilityID:262593LocationID:335654
County:GARFIELD #045Location:NWNE 17 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5595 ft.
Basin:PICEANCE BASIN
Planned Location:794FNL  2277 FELLat/Long: 39.529488 / -108.129577Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.529542 / -108.130130Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/25/2002             Measured TD: 7033 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/25/2002
Wellbore Permit
Permit #:20020232 Expiration Date:1/28/2003
Proposed Depth/Form:7070 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: E/2
Wellbore Completed
Completion Date:5/17/2002
Spud Date:3/18/2002Spud Date Is:ACTUAL
Measured TD:7033 ft.Measured PB depth:6989 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL - GR - SP NEUTRON DENSITY,CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 708 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 380, Top: , Bottom: 708 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7023 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 780, Top: 3300 ft., Bottom: 7022 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2140 ft.NN
MESAVERDE3876 ft.NN
CAMEO6553 ft.NN
ROLLINS7050 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/25/2002                 Interval Top: 5326 ft.    Interval Bottom: 6928 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/17/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6647 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/25/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1095
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1489
CASING_PRESS 1655
MCF_GAS 1489
TUBING_PRESS 1460
Perforation Data:
Interval Top:5326 ft.# Of Holes:100
Interval Bottom:6928 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)8605
GOR537812
GOR DeterminationMCFE
Average BOE per Day4.111
Average MCFE per Day23.847

 Federal Financial Assurance  i

 Tribal Well  i No
