COGIS

Facility Detail

COGIS - WELL SCOUT CARD

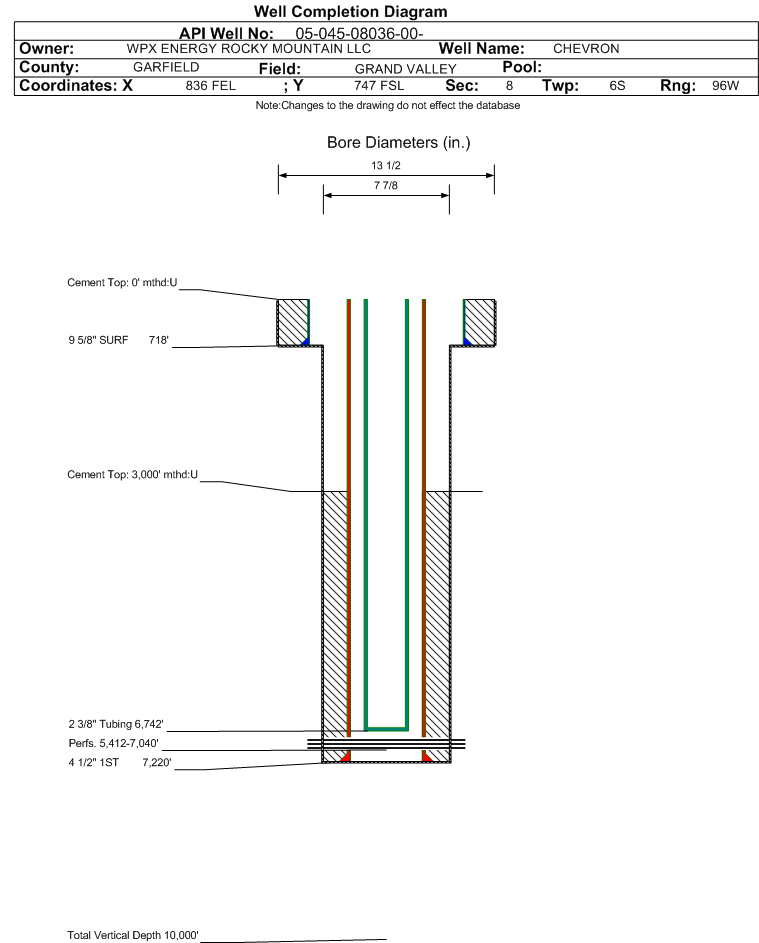

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08036		Well Classification: GW Status: PR - 12/1/2010
Well Name/No:CHEVRON #NG 44-8
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2010
FacilityID:262537LocationID:335634
County:GARFIELD #045Location:SESE 8 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5617 ft.
Basin:PICEANCE BASIN
Planned Location:747FSL  836 FELLat/Long: 39.533707 / -108.124147Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.533737 / -108.124111Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2010             Measured TD: 7231 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2010
Wellbore Permit
Permit #:20020136 Expiration Date:1/23/2003
Proposed Depth/Form:7240 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:7
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-1 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/29/2002
Spud Date:2/28/2002Spud Date Is:ACTUAL
Measured TD:7231 ft.Measured PB depth:7103 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL - GR - SP NEUTRON DENSITY & C B L
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 718 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 718 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7220 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 880, Top: 3000 ft., Bottom: 7220 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2256 ft.NN
FORT UNION2541 ft.NN
MESAVERDE3951 ft.NN
CAMEO6721 ft.NN
ROLLINS7221 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2010                 Interval Top: 5412 ft.    Interval Bottom: 7040 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/29/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6742 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/2/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 0
BTU_GAS 1083
CALC_BBLS_OIL 0
CALC_MCF_GAS 1476
CASING_PRESS 1725
MCF_GAS 1479
TUBING_PRESS 1562
Perforation Data:
Interval Top:5412 ft.# Of Holes:103
Interval Bottom:7040 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)10
Total Gas Produced (MCF)4982
GOR498200
GOR DeterminationMCFE
Average BOE per Day2.384
Average MCFE per Day13.816

 Federal Financial Assurance  i

 Tribal Well  i No
