Wellbore #00 Wellbore Classification: CBM Status: PR - 11/27/2003 Measured TD: 6515 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 11/27/2003 | | Wellbore Permit | | | Permit #: | 20022177 | Expiration Date: | 12/5/2003 | | Proposed Depth/Form: | 6500 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-32 , Unit Acreage: 320, Drill Unit: W/2 |
| | |

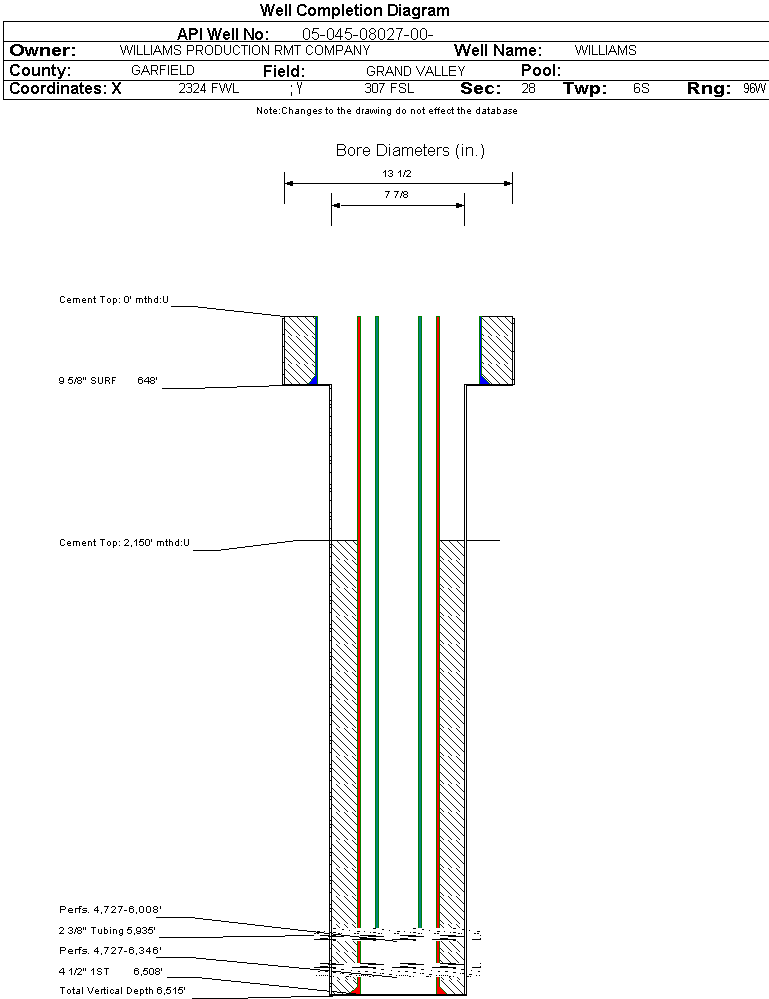

| Wellbore Completed | | Completion Date: | 10/23/2003 | | Spud Date: | 10/6/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 6515 ft. | Measured PB depth: | 6476 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: FL FL | | Bottom Hole Location: | Sec: Twp: | Footage: FL FL | | Log Types: | DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 648 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 304, Top: , Bottom: 648 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6508 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 900, Top: 2150 ft., Bottom: 6507 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FORT UNION | 2095 ft. | | N | N | | MESAVERDE | 3458 ft. | | N | N | | CAMEO COAL | 5987 ft. | | N | N | | ROLLINS | 6456 ft. | | N | N |
Formation WFCM Formation Classification: OW Status: PR - 11/27/2003 Interval Top: 4727 ft. Interval Bottom: 6346 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 11/27/2003 | Choke Size: | 0.210 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5935 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/27/2003 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 957 | | CASING_PRESS | 1097 | | MCF_GAS | 618 | | TUBING_PRESS | 957 |
| | Perforation Data: | | Interval Top: | 4727 ft. | # Of Holes: | 73 | | Interval Bottom: | 6346 ft. | Hole Size: | 0.43 in. |
|
Formation WMFK Formation Classification: OW Status: CM - 11/27/2003 Interval Top: 4727 ft. Interval Bottom: 6008 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/23/2003 | | Treatment Summary: | 6008-6346';125,116#20/40BBL SLICK WTR;5635-5931;1000GAL 7 1/2%HCL,116,111#20/40,2889 BBL SLK WTR;5086-5546';1000GAL 7 1/2%GCL,118,114#20/40 SND,3060BBL SLICK.4727-4939';1000 GAL 7 1/2%HCL,120,609#20/40 SND,2962 BBL SLICK WTR. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 4727 ft. | # Of Holes: | 73 | | Interval Bottom: | 6008 ft. | Hole Size: | 0.43 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 14 |
| Total Gas Produced (MCF) | 10333 |
| GOR | 738071 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.926 |
| Average MCFE per Day | 28.571 |
| Federal Financial Assurance | i | |
|
|
