COGIS - WELL SCOUT CARD

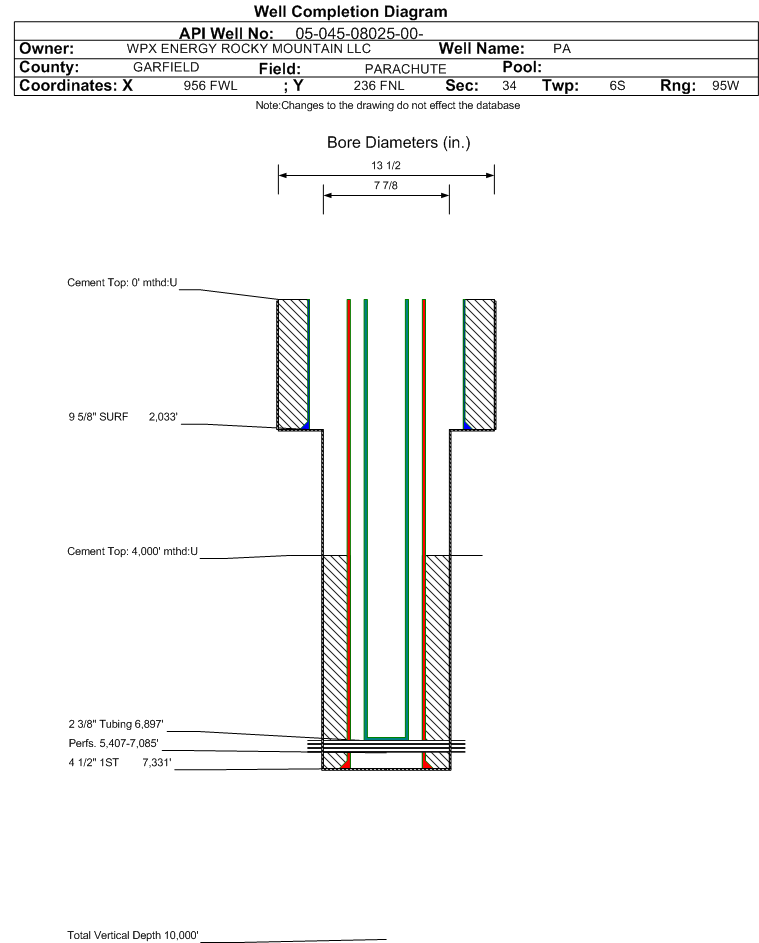

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08025		Well Classification: GW Status: PR - 5/27/2002
Well Name/No:PA #311-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/27/2002
FacilityID:262391LocationID:335337
County:GARFIELD #045Location:NWNW 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5441 ft.
Basin:PICEANCE BASIN
Planned Location:236FNL  956 FWLLat/Long: 39.487629 / -107.990473Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.487725 / -107.990478Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/27/2002             Measured TD: 7334 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/27/2002
Wellbore Permit
Permit #:20020042 Expiration Date:1/10/2003
Proposed Depth/Form:7470 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:5/20/2002
Spud Date:4/1/2002Spud Date Is:ACTUAL
Measured TD:7334 ft.Measured PB depth:7300 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL -- GR-- SP-- NEUTRON DENSITY
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2033 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 920, Top: , Bottom: 2033 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7331 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 950, Top: 4000 ft., Bottom: 7331 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4019 ft.NN
CAMEO6675 ft.NN
ROLLINS7365 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/27/2002                 Interval Top: 5407 ft.    Interval Bottom: 7085 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/20/2002
Treatment Summary:750 GALS 7-1/2% HCL 90,100# 20/40 MESH SAND, 2200 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:6897 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/27/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1071
CALC_MCF_GAS 1581
CASING_PRESS 1802
MCF_GAS 1581
TUBING_PRESS 1647
Perforation Data:
Interval Top:5407 ft.# Of Holes:12
Interval Bottom:7085 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)8288
GOR753454
GOR DeterminationMCFE
Average BOE per Day3.949
Average MCFE per Day22.893

 Federal Financial Assurance  i

 Tribal Well  i No
