COGIS - WELL SCOUT CARD

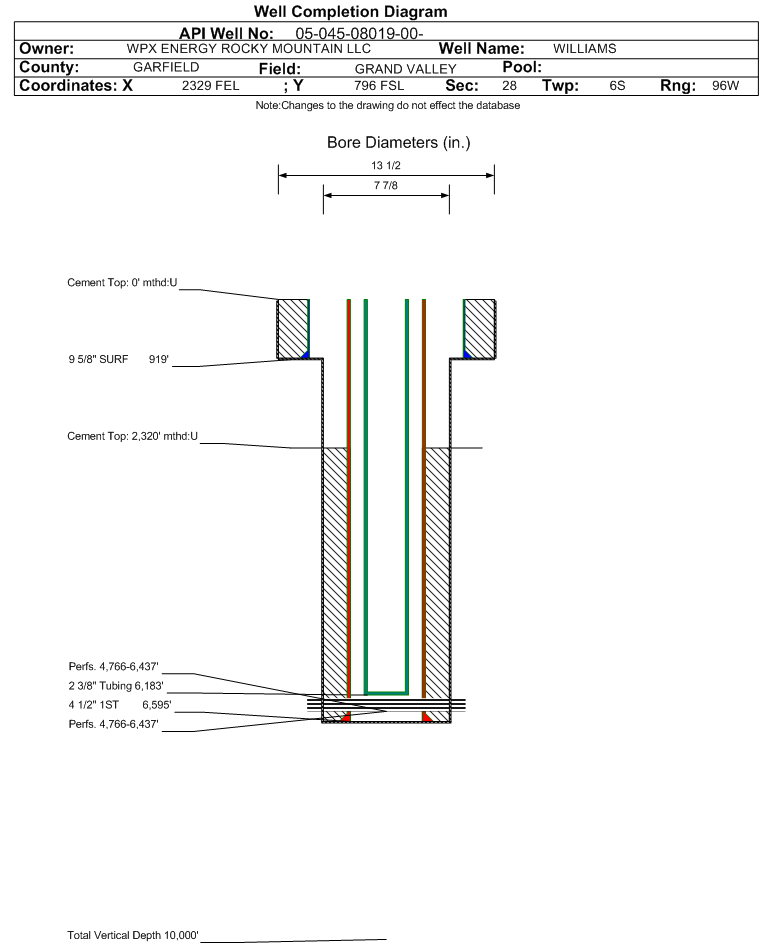

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08019		Well Classification: CBM Status: PR - 10/24/2003
Well Name/No:WILLIAMS #GM 207-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 50874
Facility Status:PRStatus Date10/24/2003
FacilityID:262385LocationID:324185
County:GARFIELD #045Location:SWSE 28 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5435 ft.
Basin:PICEANCE BASIN
Planned Location:796FSL  2329 FELLat/Long: 39.489898 / -108.112367Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490154 / -108.112318Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 10/24/2003             Measured TD: 6604 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 10/24/2003
Wellbore Permit
Permit #:20022179 Expiration Date:12/5/2003
Proposed Depth/Form:6560 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-32 , Unit Acreage: 160, Drill Unit: SE/4
Wellbore Completed
Completion Date:10/9/2003
Spud Date:9/18/2003Spud Date Is:ACTUAL
Measured TD:6604 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRO, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 919 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 304, Top: 0 ft., Bottom: 919 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6595 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 2320 ft., Bottom: 6595 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION2149 ft.NN
MESAVERDE3506 ft.NN
CAMEO COAL6064 ft.NN
ROLLINS6512 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/24/2003                Interval Top: 4766 ft.    Interval Bottom: 6437 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:10/24/2003Choke Size:0.200 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:6183 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/24/2003Test Method:FLOWING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1247
CASING_PRESS 1564
TUBING_PRESS 1430
Perforation Data:
Interval Top:4766 ft.# Of Holes:75
Interval Bottom:6437 ft.Hole Size:0.43 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 10/24/2003                Interval Top: 4766 ft.    Interval Bottom: 6437 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/9/2003
Treatment Summary:6002-6437': 1000 GALS 7-1/2% HCL, 139275# 20/40, 3386 BBLS SLICK WATER. 5530-5859': 1000 GALS 7-1/2% HCL, 127017# 20/40, 3085 BBLS SLICK WATER. 5114-5337: 137765# 20/40, 3169 BBLS SLICK WATER. 4766-5015': 1000 GALS 7-1/2% HCL, 143287# 20/40, 3370 BBL
Tubing Size:2.375 in.Tubing Setting Depth:6183 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/24/2003Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1247
CASING_PRESS 1564
TUBING_PRESS 1430
Perforation Data:
Interval Top:4766 ft.# Of Holes:75
Interval Bottom:6437 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6228
GOR566181
GOR DeterminationMCFE
Average BOE per Day2.966
Average MCFE per Day17.237

 Federal Financial Assurance  i

 Tribal Well  i No
