COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08016		Well Classification: GW Status: PR - 8/1/2013
Well Name/No:CHEVRON #GM 42-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2013
FacilityID:262339LocationID:324184
County:GARFIELD #045Location:SENE 17 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5585 ft.
Basin:PICEANCE BASIN
Planned Location:2261FNL  831 FELLat/Long: 39.525508 / -108.125077Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.525483 / -108.126175Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2013             Measured TD: 7063 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2013
Wellbore Permit
Permit #:20020031 Expiration Date:1/8/2003
Proposed Depth/Form:7030 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: E/2
Wellbore Completed
Completion Date:4/6/2002
Spud Date:2/10/2002Spud Date Is:ACTUAL
Measured TD:7063 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL - GR - SP - NEUTRON DENSITY, CBL

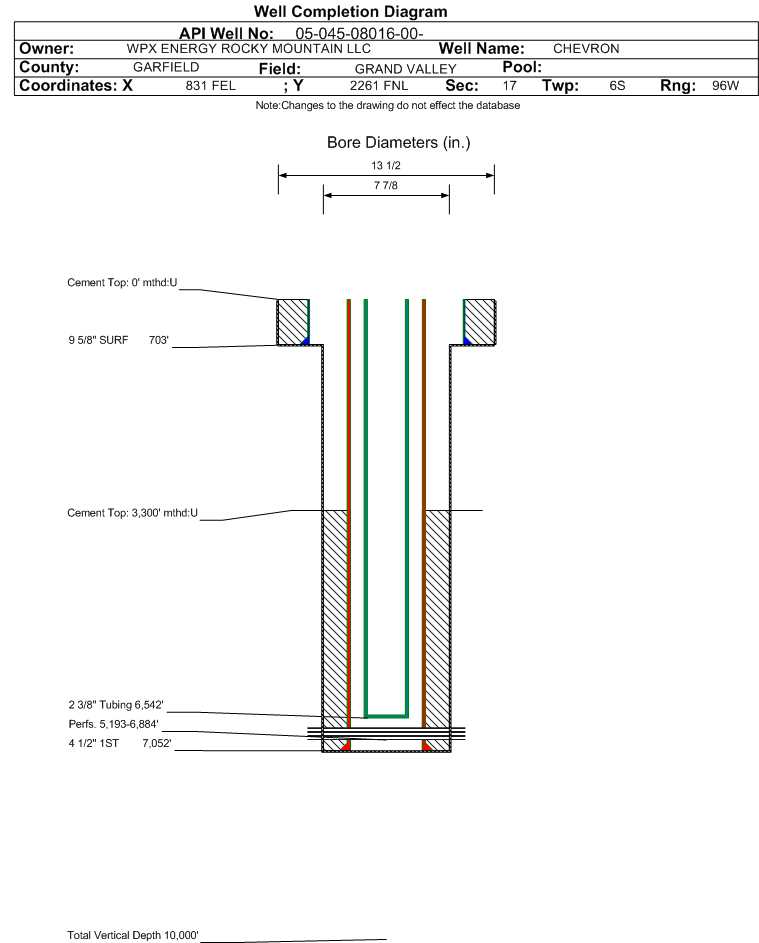

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 703 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 380, Top: , Bottom: 703 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7052 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 830, Top: 3300 ft., Bottom: 7052 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2135 ft.NN
FORT UNION2376 ft.NN
MESAVERDE3836 ft.NN
CAMEO6530 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/1/2013                  Interval Top: 5193 ft.    Interval Bottom: 6884 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/6/2002Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/6/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6542 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/13/2002Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1071
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1278
CASING_PRESS 1814
MCF_GAS 1278
TUBING_PRESS 1692
Perforation Data:
Interval Top:5193 ft.# Of Holes:88
Interval Bottom:6884 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)58
Total Gas Produced (MCF)36104
GOR622482
GOR DeterminationMCFE
Average BOE per Day17.203
Average MCFE per Day99.806

 Federal Financial Assurance  i

 Tribal Well  i No
