COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08008		Well Classification: GW Status: PR - 10/27/2003
Well Name/No:WILLIAMS #GM 44-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/27/2003
FacilityID:262218LocationID:335071
County:GARFIELD #045Location:SWSE 28 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5453 ft.
Basin:PICEANCE BASIN
Planned Location:500FSL  1806 FELLat/Long: 39.489088 / -108.110506Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.489266 / -108.110452Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/27/2003             Measured TD: 6711 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/27/2003
Wellbore PermitDIRECTIONAL
Permit #:20022176 Expiration Date:12/5/2003
Proposed Depth/Form:6717 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WFCMC , Formation: WILLIAMS FORK-CAMEO COAL , Order: 139-32 , Unit Acreage: 160, Drill Unit: SE/4
Wellbore Completed
Completion Date:10/1/2003
Spud Date:9/4/2003Spud Date Is:ACTUAL
Measured TD:6711 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL

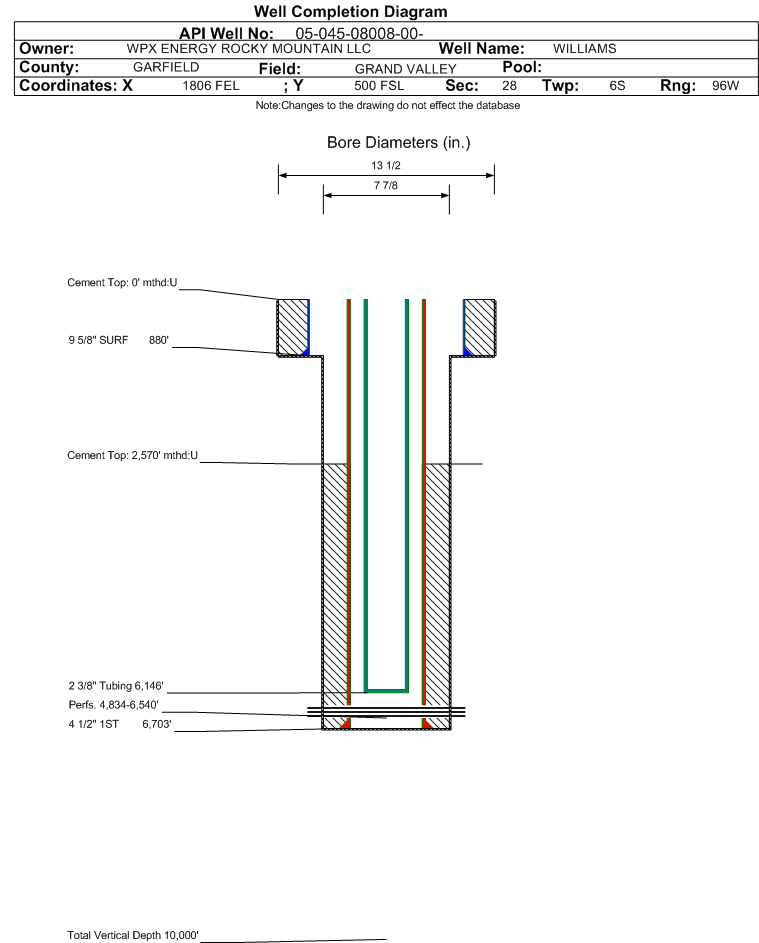

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 880 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 950, Top: 0 ft., Bottom: 880 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6703 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 960, Top: 2570 ft., Bottom: 6703 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION2190 ft.NN
MESAVERDE3556 ft.NN
CAMEO COAL6168 ft.NN
ROLLINS6621 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/27/2003                Interval Top: 4834 ft.    Interval Bottom: 6540 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/1/2003
Treatment Summary:SEE COGCC COMMENTS
Tubing Size:2.375 in.Tubing Setting Depth:6146 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/27/2003Test Method:
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 801
CASING_PRESS 820
TUBING_PRESS 704
Perforation Data:
Interval Top:4834 ft.# Of Holes:67
Interval Bottom:6540 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6058
GOR550727
GOR DeterminationMCFE
Average BOE per Day2.891
Average MCFE per Day16.781

 Federal Financial Assurance  i

 Tribal Well  i No
