COGIS - WELL SCOUT CARD

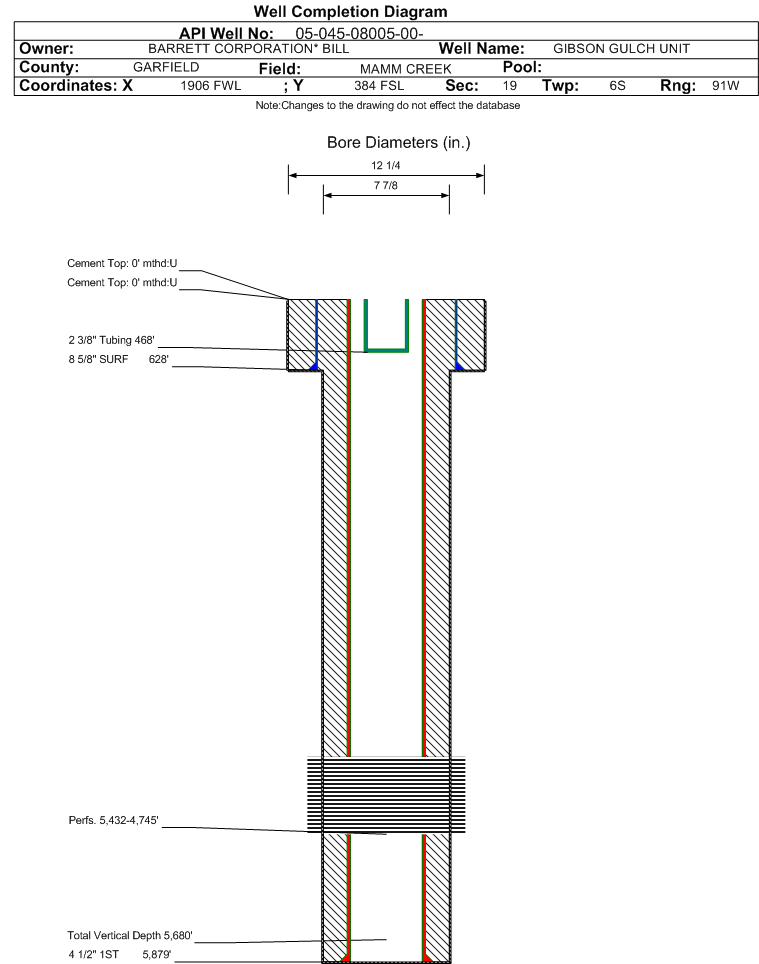

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08005		Well Classification: GW Status: PR - 6/27/2003
Well Name/No:GIBSON GULCH UNIT #3-30
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/27/2003
FacilityID:262209LocationID:417608
County:GARFIELD #045Location:SESW 19 6S91W 6
Field:MAMM CREEK - #52500Elevation:5819 ft.
Basin:PICEANCE BASIN
Planned Location:384FSL  1906 FWLLat/Long: 39.506731 / -107.599531Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.506815 / -107.599344Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/27/2003             Measured TD: 5880 ft.    Vertical TD: 5680 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/27/2003
Wellbore PermitDIRECTIONAL
Permit #:20030649 Expiration Date:4/28/2004
Proposed Top PZ Location:Sec:30 Twp: 6S 91W Footage: 660 FNL  1980 FWL
Bottom Hole Location:Sec:30 Twp: 6S 91W Footage: 660 FNL  1980 FWL
Proposed Depth/Form:5600 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:N/A
Spud Date:5/25/2003Spud Date Is:ACTUAL
Measured TD:5880 ft.Measured PB depth:5831 ft.
True Vertical TD:5680 ft.True Vertical PB depth:5631 ft.
Top PZ Location:Sec:30 Twp: 6S 91WFootage: 660 FNL  1980 FWL
Bottom Hole Location:Sec:30 Twp: 6S 91WFootage: 660 FNL  1980 FWL
Log Types:INDUCTION & DENSITY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 628 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 628 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5879 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1350, Top: 0 ft., Bottom: 5879 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3562 ft.NN
OHIO CREEK3562 ft.4070 ft.NN
COAL4371 ft.4739 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 6/27/2003                 Interval Top: 4745 ft.    Interval Bottom: 5432 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:6/27/2003Choke Size:0.280 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:6/27/2003
Treatment Summary:SCANNED FORMATION TREATMENT INFORMATION DOC.01209577
Tubing Size:2.375 in.Tubing Setting Depth:468 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/27/2003Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 45
CALC_BBLS_H2O 45
CALC_BBLS_OIL 5
CALC_GOR 212400
CALC_MCF_GAS 1062
CASING_PRESS 870
MCF_GAS 1062
Perforation Data:
Interval Top:4745 ft.# Of Holes:41
Interval Bottom:5432 ft.Hole Size:0.32 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)7
Total Gas Produced (MCF)3365
GOR480714
GOR DeterminationMCFE
Average BOE per Day1.609
Average MCFE per Day9.338

 Federal Financial Assurance  i

 Tribal Well  i No
