COGIS - WELL SCOUT CARD

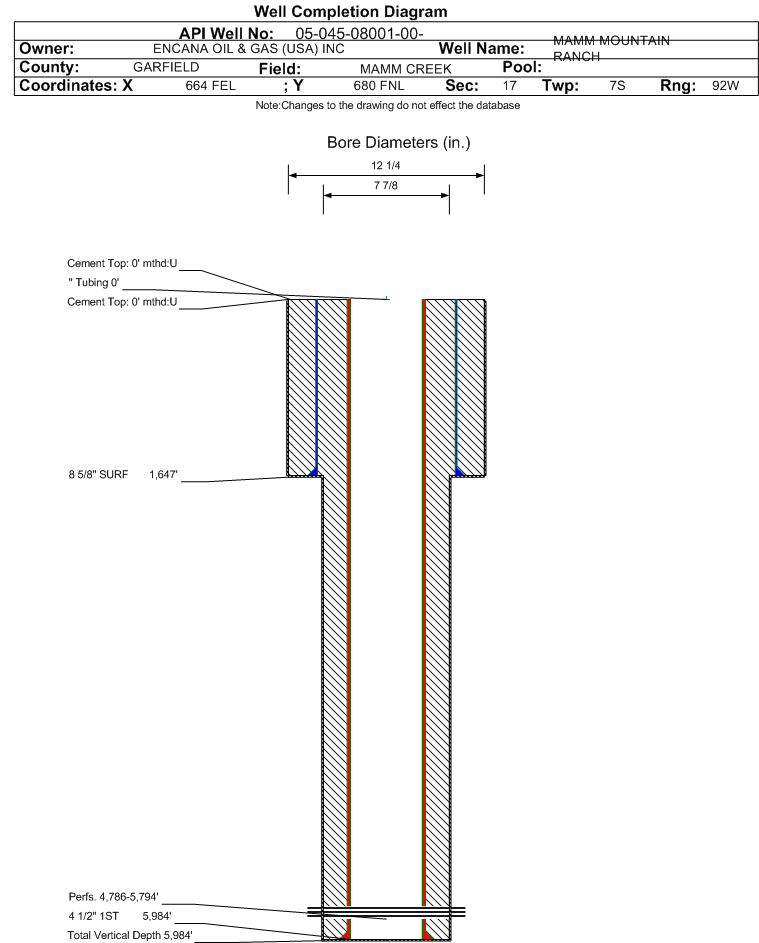

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-08001		Well Classification: GW Status: PR - 4/12/2002
Well Name/No:MAMM MOUNTAIN RANCH #17-1A (A17E)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/12/2002
FacilityID:262203LocationID:334953
County:GARFIELD #045Location:NENE 17 7S92W 6
Field:MAMM CREEK - #52500Elevation:6071 ft.
Basin:PICEANCE BASIN
Planned Location:680FNL  664 FELLat/Long: 39.451851 / -107.682893Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.451880 / -107.682930Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/12/2002             Measured TD: 5998 ft.    Vertical TD: 5984 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/12/2002
Wellbore Permit
Permit #:012247 Expiration Date:12/27/2002
Proposed Top PZ Location:Sec:8 Twp: 7S 92W Footage: 2 FSL  1321 FEL
Bottom Hole Location:Sec:8 Twp: 7S 92W Footage: 2 FSL  1321 FEL
Proposed Depth/Form:5730 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/18/2002
Spud Date:2/3/2002Spud Date Is:ACTUAL
Measured TD:5998 ft.Measured PB depth:5939 ft.
True Vertical TD:5984 ft.True Vertical PB depth:5953 ft.
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DUAL INDUCTION, NEUTRON DENSITY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1647 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 0 ft., Bottom: 1647 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5984 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 0 ft., Bottom: 5984 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK2600 ft.5688 ft.NN
COAL5688 ft.5983 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 4/12/2002                 Interval Top: 4786 ft.    Interval Bottom: 5794 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:1.125 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:FLOWING TO SALES
Open Hole Completion:No
Formation Treatment
Treatment Date:2/18/2002
Treatment Summary:COMMINGLED ALL ZONES ABOVE AFTER THE COBRA FRAC
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/12/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 0
BTU_GAS 1140
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 470
CASING_PRESS 285
MCF_GAS 470
Perforation Data:
Interval Top:4786 ft.# Of Holes:51
Interval Bottom:5794 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)27
Total Gas Produced (MCF)20430
GOR756666
GOR DeterminationMCFE
Average BOE per Day9.719
Average MCFE per Day56.391

 Federal Financial Assurance  i

 Tribal Well  i No
