COGIS - WELL SCOUT CARD

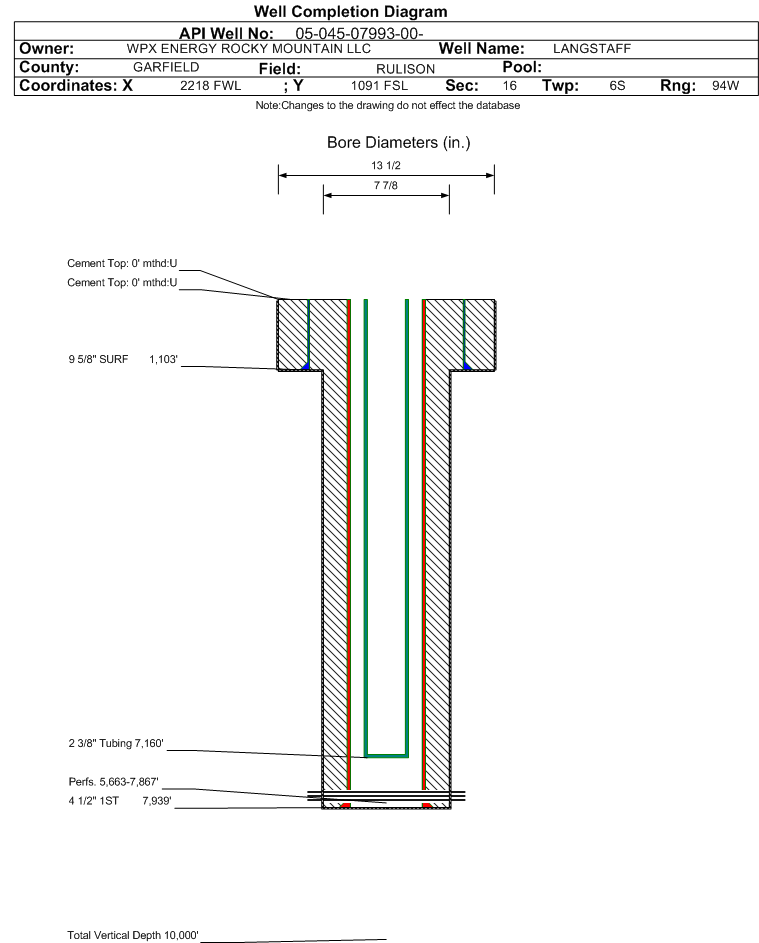

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07993		Well Classification: GW Status: PR - 6/2/2002
Well Name/No:LANGSTAFF #RWF324-16
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:CR49
Facility Status:PRStatus Date6/2/2002
FacilityID:261879LocationID:335192
County:GARFIELD #045Location:SESW 16 6S94W 6
Field:RULISON - #75400Elevation:5529 ft.
Basin:PICEANCE BASIN
Planned Location:1091FSL  2218 FWLLat/Long: 39.521039 / -107.895010Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.521144 / -107.895057Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/2/2002             Measured TD: 7960 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/2/2002
Wellbore Permit
Permit #:012076 Expiration Date:11/27/2002
Proposed Depth/Form:8110 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:5/25/2002
Spud Date:3/11/2002Spud Date Is:ACTUAL
Measured TD:7960 ft.Measured PB depth:7889 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DIL-GR-SP NEUTRON DENSITY & CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1103 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 1103 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7939 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 835, Top: , Bottom: 7939 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4385 ft.NN
CAMEO7195 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/2/2002                  Interval Top: 5663 ft.    Interval Bottom: 7867 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/25/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7160 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/2/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_MCF_GAS 1027
CASING_PRESS 1635
MCF_GAS 1027
TUBING_PRESS 1490
Perforation Data:
Interval Top:5663 ft.# Of Holes:104
Interval Bottom:7867 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)23
Total Gas Produced (MCF)9536
GOR414608
GOR DeterminationMCFE
Average BOE per Day4.563
Average MCFE per Day26.491

 Federal Financial Assurance  i

 Tribal Well  i No
