COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07992		Well Classification: GW Status: PR - 4/17/2002
Well Name/No:LANGSTAFF #RMV 141-16
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:CR49
Facility Status:PRStatus Date4/17/2002
FacilityID:261878LocationID:335453
County:GARFIELD #045Location:NWSW 16 6S94W 6
Field:RULISON - #75400Elevation:5571 ft.
Basin:PICEANCE BASIN
Planned Location:1779FSL  457 FWLLat/Long: 39.522869 / -107.901250Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.523002 / -107.901309Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/17/2002             Measured TD: 8038 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/17/2002
Wellbore Permit
Permit #:012075 Expiration Date:11/27/2002
Proposed Depth/Form:8180 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 479-7 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:4/17/2002
Spud Date:1/21/2002Spud Date Is:ACTUAL
Measured TD:8038 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED JEUTRON, CBL

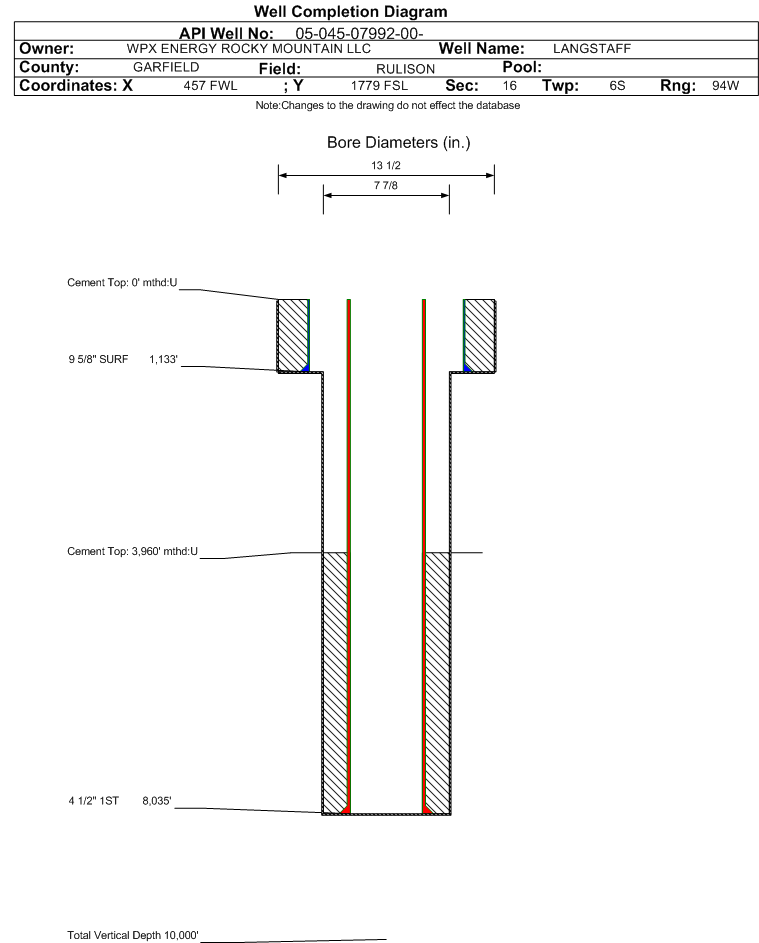

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1133 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: 1132 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8035 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 825, Top: 3960 ft., Bottom: 8035 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4448 ft.NN
CAMEO COAL7233 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/17/2002

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/17/2002Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:Yes
Formation Treatment
Treatment Date:4/17/2002
Treatment Summary:4000 GALS 7 1/2% HCL, APPROX 500,000 # 20/40, 13,000 BBLS 2% kcl WATER
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)30
Total Gas Produced (MCF)12854
GOR428466
GOR DeterminationMCFE
Average BOE per Day6.153
Average MCFE per Day35.693

 Federal Financial Assurance  i

 Tribal Well  i No
