COGIS - WELL SCOUT CARD

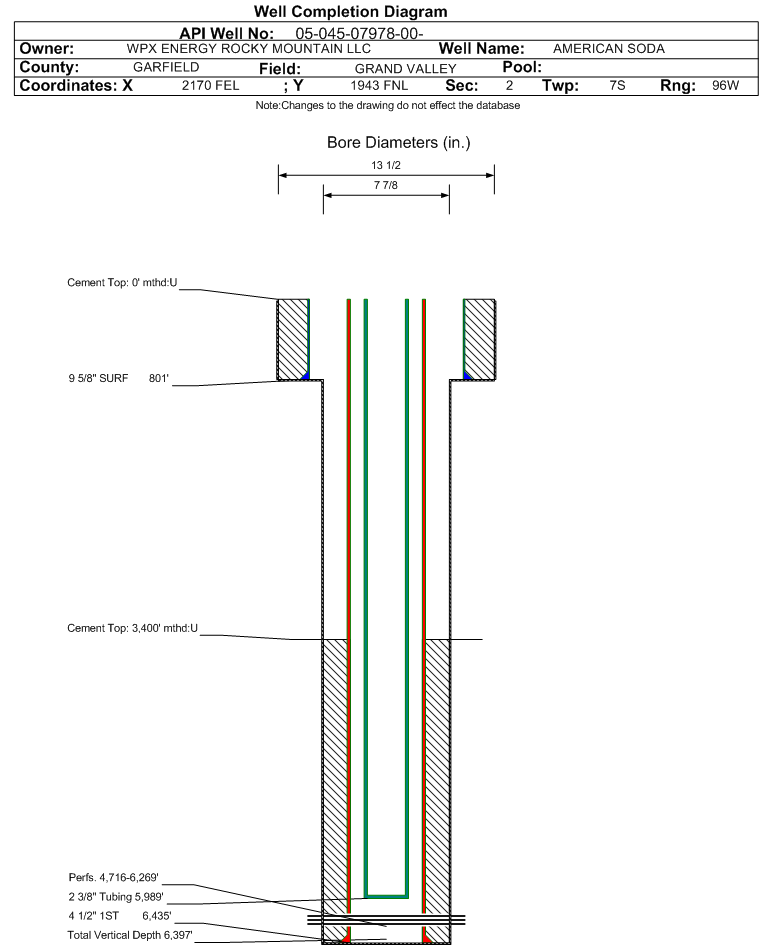

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07978		Well Classification: GW Status: PR - 12/1/2010
Well Name/No:AMERICAN SODA #GM 257-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2010
FacilityID:261761LocationID:334659
County:GARFIELD #045Location:SWNE 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5226 ft.
Basin:PICEANCE BASIN
Planned Location:1943FNL  2170 FELLat/Long: 39.467869 / -108.074865Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.468028 / -108.075048Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2010             Measured TD: 6437 ft.    Vertical TD: 6397 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2010
Wellbore Permit
Permit #:012000 Expiration Date:11/8/2002
Proposed Top PZ Location:Sec:2 Twp: 7S 96W Footage: 1352 FNL  2252 FEL
Bottom Hole Location:Sec:2 Twp: 7S 96W Footage: 1280 FNL  2325 FEL
Proposed Depth/Form:6320 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-3 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:4/30/2002
Spud Date:3/6/2002Spud Date Is:ACTUAL
Measured TD:6437 ft.Measured PB depth:6328 ft.
True Vertical TD:6397 ft.True Vertical PB depth:6288 ft.
Top PZ Location:Sec: Twp: Footage: 1345 FNL  2253 FEL
Bottom Hole Location:Sec: Twp: Footage: 1358 FNL  2251 FEL
Log Types:THERMAL MLTIGATE DECAY LITHOLOGY LOG & CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 801 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: , Bottom: 801 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6435 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 3400 ft., Bottom: 6434 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1497 ft.NN
FORT UNION1818 ft.NN
MESAVERDE3300 ft.NN
CAMEO5889 ft.NN
ROLLINS6358 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2010                 Interval Top: 4716 ft.    Interval Bottom: 6269 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:5/2/2002Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/30/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5989 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/2/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1091
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1244
CASING_PRESS 1415
MCF_GAS 1244
TUBING_PRESS 1277
Perforation Data:
Interval Top:4716 ft.# Of Holes:65
Interval Bottom:6269 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10885
GOR907083
GOR DeterminationMCFE
Average BOE per Day5.172
Average MCFE per Day30.018

 Federal Financial Assurance  i

 Tribal Well  i No
