COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07973		Well Classification: GW Status: PR - 3/7/2002
Well Name/No:FORCE #RWF 341-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC53847
Facility Status:PRStatus Date3/7/2002
FacilityID:261717LocationID:311599
County:GARFIELD #045Location:SENE 33 6S94W 6
Field:RULISON - #75400Elevation:5321 ft.
Basin:PICEANCE BASIN
Planned Location:1453FNL  1098 FELLat/Long: 39.485050 / -107.887210Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.485049 / -107.887421Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/7/2002             Measured TD: 7494 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/7/2002
Wellbore Permit
Permit #:011825 Expiration Date:11/5/2002
Proposed Top PZ Location:Sec:33 Twp: 6S 94W Footage: 1158 FNL  402 FEL
Bottom Hole Location:Sec:33 Twp: 6S 94W Footage: 1143 FNL  387 FEL
Proposed Depth/Form:7570 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-19 , Unit Acreage: 320, Drill Unit: E/2
Wellbore Completed
Completion Date:5/8/2002
Spud Date:12/29/2001Spud Date Is:ACTUAL
Measured TD:7494 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1190 FNL  423 FEL
Bottom Hole Location:Sec: Twp: Footage: 1163 FNL  384 FEL
Log Types:THERMAL DECAY MULTIGATE LITHOLOGY, CBL

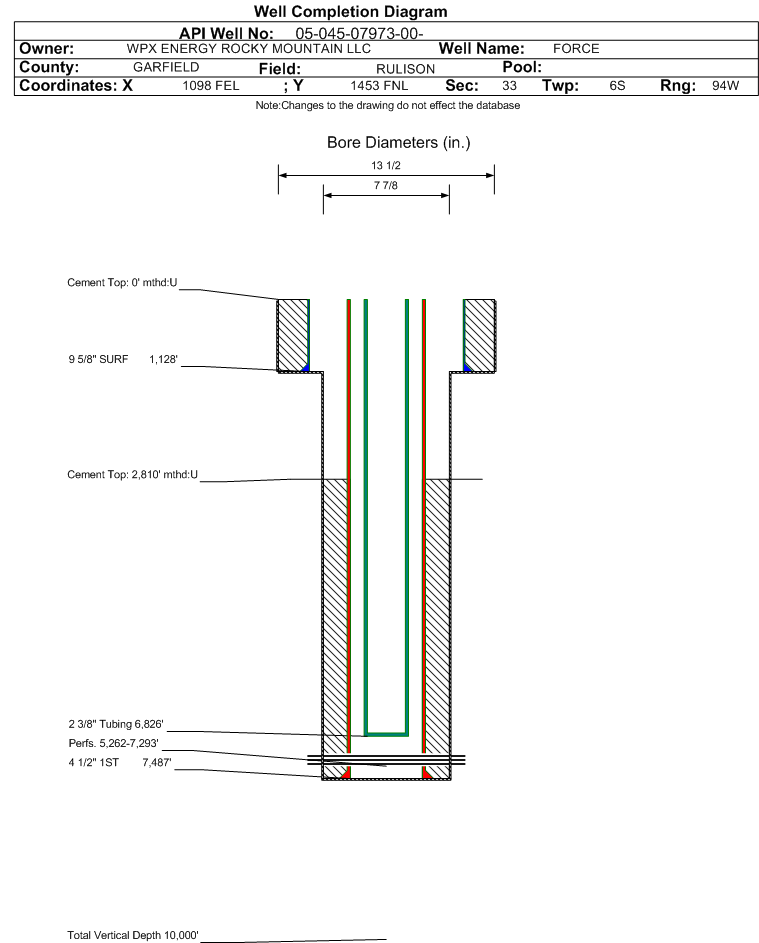

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1128 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: 1128 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7487 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 925, Top: 2810 ft., Bottom: 7487 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1469 ft.NN
MESAVERDE3932 ft.NN
CAMEO COAL6604 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/7/2002                  Interval Top: 5262 ft.    Interval Bottom: 7293 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/8/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6826 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/15/2002Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_MCF_GAS 1516
CASING_PRESS 1930
MCF_GAS 0
TUBING_PRESS 1803
Perforation Data:
Interval Top:5262 ft.# Of Holes:94
Interval Bottom:7293 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)29
Total Gas Produced (MCF)16196
GOR558482
GOR DeterminationMCFE
Average BOE per Day7.722
Average MCFE per Day44.818

 Federal Financial Assurance  i

 Tribal Well  i No
