COGIS - WELL SCOUT CARD

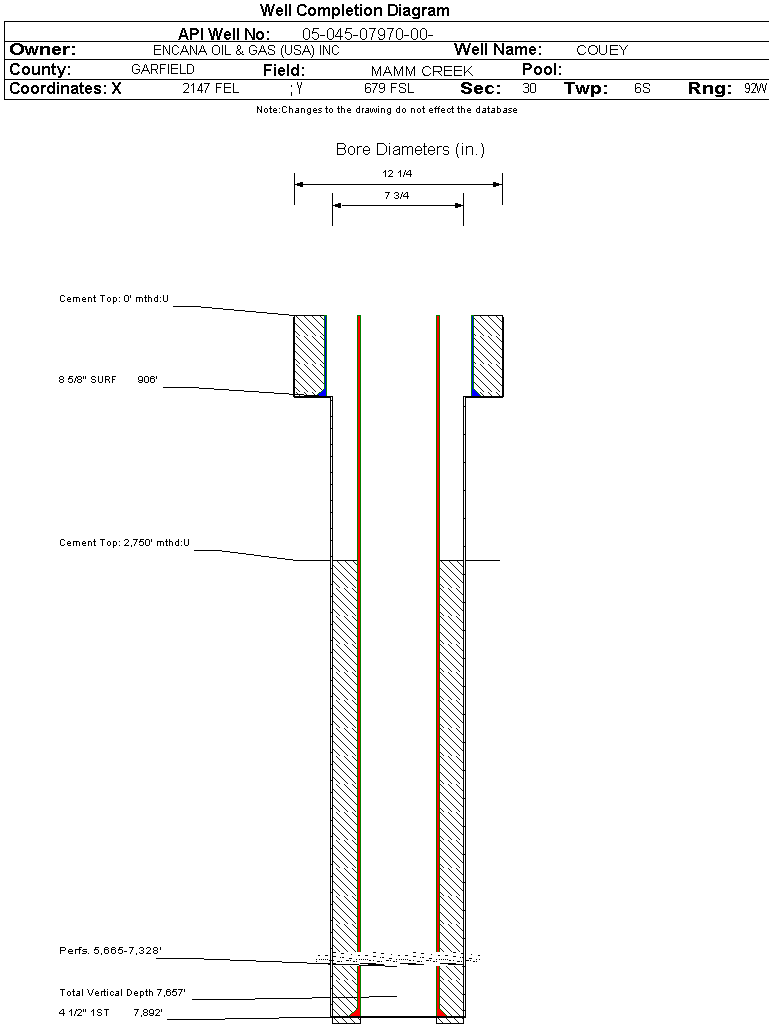

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07970		Well Classification: GW Status: PR - 6/4/2002
Well Name/No:COUEY #30-10A1 (O30NE)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/4/2002
FacilityID:261630LocationID:335358
County:GARFIELD #045Location:NWSE 30 6S92W 6
Field:MAMM CREEK - #52500Elevation:5833 ft.
Basin:PICEANCE BASIN
Planned Location:679FSL  2147 FELLat/Long: 39.492300 / -107.707254Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.492390 / -107.707100Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/4/2002             Measured TD: 7890 ft.    Vertical TD: 7657 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/4/2002
Wellbore Permit
Permit #:011953 Expiration Date:10/29/2002
Proposed Top PZ Location:Sec:30 Twp: 6S 92W Footage: 1821 FSL  2020 FEL
Bottom Hole Location:Sec:30 Twp: 6S 92W Footage: 1980 FSL  2002 FEL
Proposed Depth/Form:8500 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/26/2002
Spud Date:12/1/2001Spud Date Is:ACTUAL
Measured TD:7890 ft.Measured PB depth:7795 ft.
True Vertical TD:7657 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1972 FSL  1999 FEL
Bottom Hole Location:Sec: Twp: Footage: 1937 FSL  1984 FEL
Log Types:CBL / GR / CCL, RS / CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 906 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 425, Top: 0 ft., Bottom: 906 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7892 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1060, Top: 2750 ft., Bottom: 7971 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4259 ft.NN
WILLIAMS FORK4260 ft.7395 ft.NN
ROLLINS7396 ft.7890 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 6/4/2002                  Interval Top: 5665 ft.    Interval Bottom: 7328 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:2/19/2002Choke Size:0.370 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:4/26/2002
Treatment Summary:STAGE 1:NO FRAC. STAGE 2:ACID BALLOUT,6788-7328',16 HOLES,.35",5004 BBL KCL SLICKWATER,196,600#20/40 SAND.STAGE 3: ACID BALLOUT,6487-6706',14 HOLES,.35",3622 BBL KCL SLICKWATER,147,900#20/40 SAND.STAGE4:ACID BALLOUT,5969-6342',14HOLES,.35",3820 BBL KCL SLICKWATER,154,820#20/40 SAND.STAGE 5:ACID BALLOUT, 5758-5873',16 HOLES,.35",4500 BBL KCL SLICKWATER,206,300#20/40 SAND. STAGE 6:ACID BALLOUT,5534-5665',14 HOLES,.34",4128 BBL KCL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/19/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 3
BTU_GAS 1170
CALC_BBLS_H2O 1
CALC_BBLS_OIL 3
CALC_MCF_GAS 852
CASING_PRESS 2000
MCF_GAS 852
TUBING_PRESS 1800
Perforation Data:
Interval Top:5665 ft.# Of Holes:74
Interval Bottom:7328 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)52
Total Gas Produced (MCF)17295
GOR332596
GOR DeterminationMCFE
Average BOE per Day8.302
Average MCFE per Day48.165

 Federal Financial Assurance  i

 Tribal Well  i No
