Facility Detail

COGIS - WELL SCOUT CARD

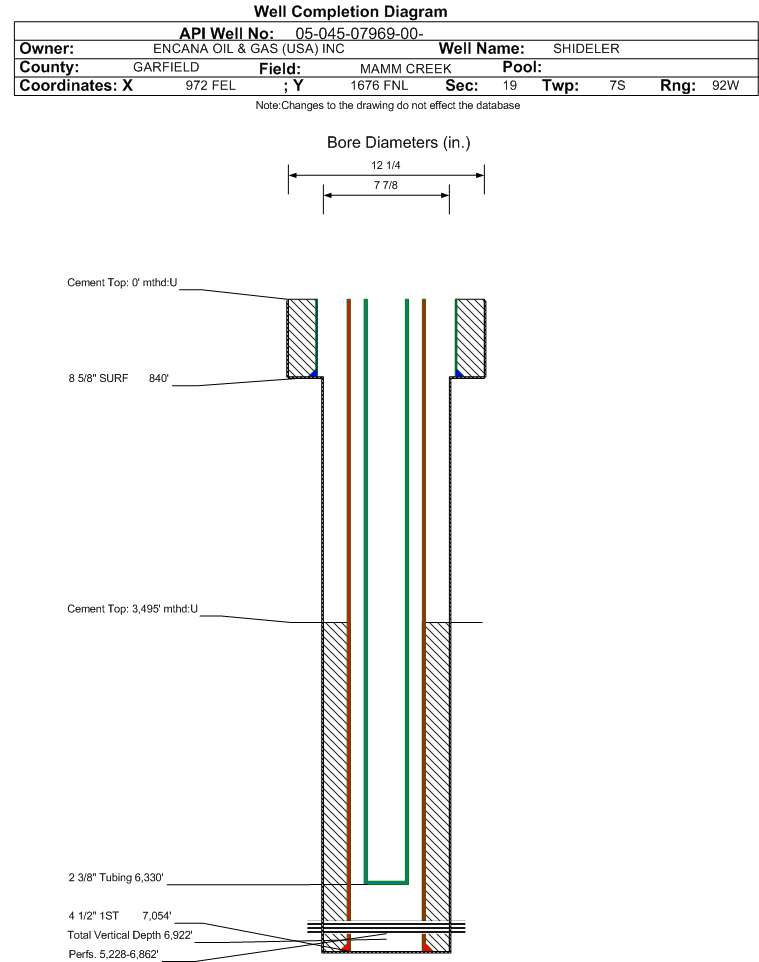

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07969		Well Classification: GW Status: PR - 5/1/2003
Well Name/No:SHIDELER #19-7DI (H19)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2003
FacilityID:261629LocationID:334886
County:GARFIELD #045Location:SENE 19 7S92W 6
Field:MAMM CREEK - #52500Elevation:6512 ft.
Basin:PICEANCE BASIN
Planned Location:1676FNL  972 FELLat/Long: 39.434421 / -107.702824Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.434480 / -107.702890Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2003             Measured TD: 7055 ft.    Vertical TD: 6922 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2003
Wellbore PermitDIRECTIONAL
Permit #:20022130 Expiration Date:12/15/2003
Proposed Top PZ Location:Sec: Twp: Footage: 2194 FNL  1514 FEL
Bottom Hole Location:Sec: Twp: Footage: 2310 FNL  1650 FEL
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/15/2003
Spud Date:1/30/2003Spud Date Is:ACTUAL
Measured TD:7055 ft.Measured PB depth:0 ft.
True Vertical TD:6922 ft.True Vertical PB depth:7008 ft.
Top PZ Location:Sec: Twp: Footage: 2194 FNL  1514 FEL
Bottom Hole Location:Sec: Twp: Footage: 2310 FNL  1650 FEL
Log Types:CBL, RST
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 840 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 840 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7054 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 990, Top: 3495 ft., Bottom: 7054 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4381 ft.NN
WILLIAMS FORK382 ft.7055 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 5/1/2003                  Interval Top: 5228 ft.    Interval Bottom: 6862 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/15/2003
Treatment Summary:STAGE 1: ACID BALLOUT,6587-6862, 22-0340" SHOTS, 3398 BBLS OF SLICKWATER,157200# 20-40 SAND, STAGE 2: ACID BALLOUT,6121-6516, 22-0.340" SHOTS, 5141 BBLS OF SLICKWATER, 210000# 20-40 SAND, STAGE 3: ACID BALOUT,5752-6040, 22-0.340" SHOTS, (CONTINUED) -
Tubing Size:2.375 in.Tubing Setting Depth:6330 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/1/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 280
BBLS_OIL 3
BTU_GAS 1170
CALC_BBLS_H2O 280
CALC_BBLS_OIL 3
CALC_GOR 523
CALC_MCF_GAS 1568
CASING_PRESS 1600
MCF_GAS 1568
TUBING_PRESS 1400
Perforation Data:
Interval Top:5228 ft.# Of Holes:102
Interval Bottom:6862 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)28
Total Gas Produced (MCF)12547
GOR448107
GOR DeterminationMCFE
Average BOE per Day6.002
Average MCFE per Day34.821

 Federal Financial Assurance  i Y

 Tribal Well  i No
