COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07965		Well Classification: GW Status: PR - 9/23/2002
Well Name/No:HILL #16-5B1 (E 16)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/23/2002
FacilityID:261557LocationID:334915
County:GARFIELD #045Location:SWNW 16 7S92W 6
Field:MAMM CREEK - #52500Elevation:6176 ft.
Basin:PICEANCE BASIN
Planned Location:1766FNL  632 FWLLat/Long: 39.448921 / -107.678343Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.448960 / -107.678360Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/23/2002             Measured TD: 6855 ft.    Vertical TD: 6855 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/23/2002
Wellbore Permit
Permit #:011914 Expiration Date:10/22/2002
Proposed Depth/Form:7000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC55279X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/23/2002
Spud Date:4/30/2002Spud Date Is:ACTUAL
Measured TD:6855 ft.Measured PB depth:
True Vertical TD:6855 ft.True Vertical PB depth:5230 ft.
Log Types:CBL / GR / CCL, PE / AI / GR, CN / LD / GR

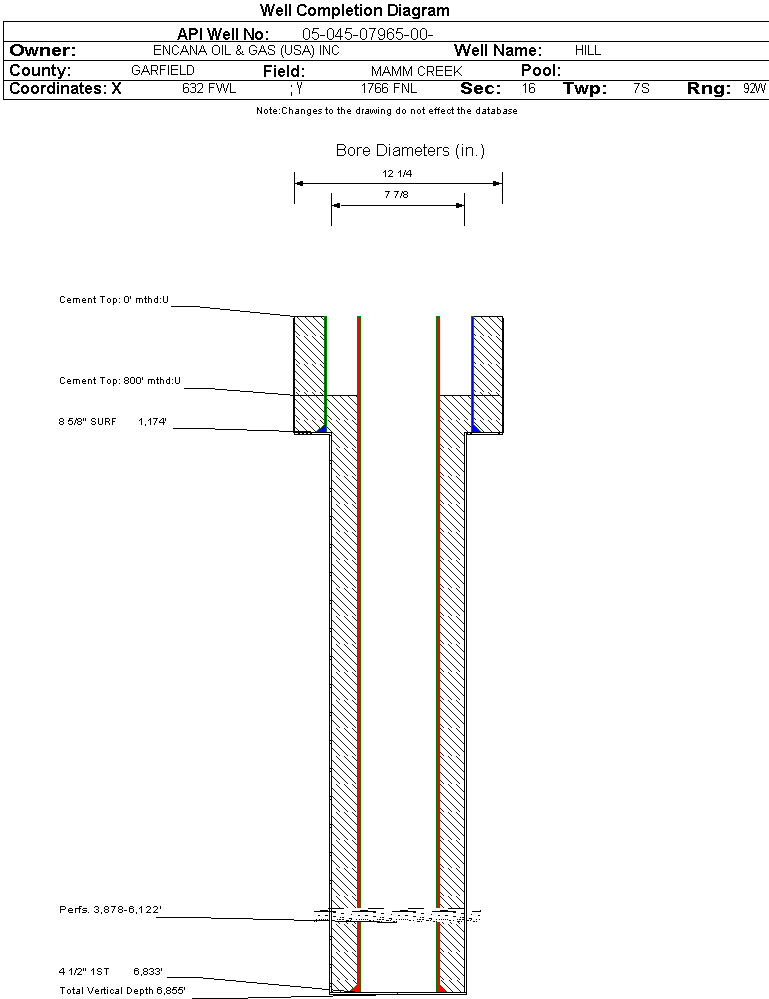

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1174 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 660, Top: 0 ft., Bottom: 1174 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6833 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1230, Top: 800 ft., Bottom: 6832 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.2979 ft.NN
WILLIAMS FORK2980 ft.6185 ft.NN
ROLLINS6186 ft.6800 ft.NN
COZZETTE6801 ft.6855 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/23/2002                 Interval Top: 3878 ft.    Interval Bottom: 6122 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:9/23/2003Choke Size:2.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/23/2002
Treatment Summary:STAGE1:FORMATION INJECTION PROFILE TEST,6090-6122',128HOLES,.32".STAGE2:5618-5623'20HOLES,.32",STAGE3:5563-5570,28HOLES,.32". STAGE4:5356-5361',20HOLES,.SET CIBP AT 5356'. STAGE1:ACID BALLOUT,4838-5158,18HOLES,.32",4552 BBL KCL SLICKWATER, 201,000#20/40 SAND.STAGE2:ACID BALLOUT,4337-4702',18HOLES,.32",5484BBL KCLSLICKWATER, 248,928#20/40 SAND.STAGE3:ACID BALLOUT,3988-4117,10HOLES,.32",2516BBL KCL SLICKWATER, 115,300#20/40 SAND.STAGE4:ACID BALLOUT,3644-3889',12 HOLES,.32",3775 BBL KKCLSLICKWATER,151,420#20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/23/2002Test Method:FLOWING
Hours Tested:Gas Type:DRY
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 14
BTU_GAS 1170
CALC_BBLS_H2O 1
CALC_BBLS_OIL 14
CALC_GOR 91
CALC_MCF_GAS 1276
CASING_PRESS 1400
MCF_GAS 1276
TUBING_PRESS 1250
Perforation Data:
Interval Top:3878 ft.# Of Holes:58
Interval Bottom:6122 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)30
Total Gas Produced (MCF)24596
GOR819866
GOR DeterminationMCFE
Average BOE per Day11.693
Average MCFE per Day67.818

 Federal Financial Assurance  i Y

 Tribal Well  i No
