COGIS - WELL SCOUT CARD

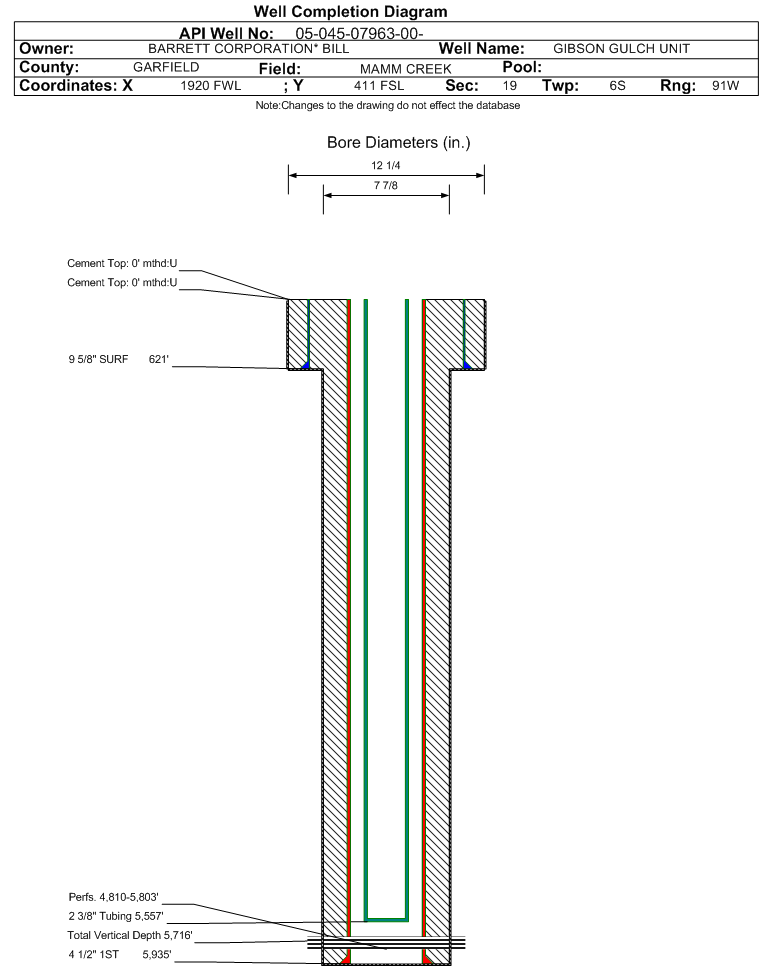

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07963		Well Classification: GW Status: PR - 10/2/2001
Well Name/No:GIBSON GULCH UNIT #15-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/2/2001
FacilityID:261487LocationID:417608
County:GARFIELD #045Location:SESW 19 6S91W 6
Field:MAMM CREEK - #52500Elevation:5818 ft.
Basin:PICEANCE BASIN
Planned Location:411FSL  1920 FWLLat/Long: 39.506801 / -107.599481Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.506856 / -107.599342Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/2/2001             Measured TD: 5935 ft.    Vertical TD: 5716 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/2/2001
Wellbore Permit
Permit #:011860 Expiration Date:10/17/2002
Proposed Top PZ Location:Sec:19 Twp: 6S 91W Footage: 2220 FEL  660 FSL
Bottom Hole Location:Sec:19 Twp: 6S 91W Footage: 2220 FEL  660 FSL
Proposed Depth/Form:5700 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/31/2001
Spud Date:12/20/2001Spud Date Is:ACTUAL
Measured TD:5935 ft.Measured PB depth:5897 ft.
True Vertical TD:5716 ft.True Vertical PB depth:5678 ft.
Top PZ Location:Sec: Twp: Footage: 657 FSL  2165 FEL
Bottom Hole Location:Sec: Twp: Footage: 685 FSL  2139 FEL
Log Types:GR / SP / CNL / FDC / DIL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 621 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 621 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5935 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 0 ft., Bottom: 5935 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3364 ft.NN
OHIO CREEK3364 ft.3873 ft.NN
WILLIAMS FORK3873 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/1/2013                  Interval Top: 4810 ft.    Interval Bottom: 5803 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:THRU TUBING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/31/2001
Treatment Summary:5418-5803 - FRACED WITH 2180 BBLS 2% KCL + 282100# 20/40 SAND 4810-5205 - FRACED WITH 3718 BBLS 2% KCL + 470369# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5557 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/19/2002Test Method:PIPLINE
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 6
BTU_GAS 1195
CALC_BBLS_H2O 4
CALC_BBLS_OIL 6
CALC_GOR 67333
CALC_MCF_GAS 404
CASING_PRESS 1795
GRAVITY_OIL 41
MCF_GAS 404
TUBING_PRESS 129
Perforation Data:
Interval Top:4810 ft.# Of Holes:38
Interval Bottom:5803 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)5397
GOR415153
GOR DeterminationMCFE
Average BOE per Day2.588
Average MCFE per Day15.009

 Federal Financial Assurance  i

 Tribal Well  i No
