COGIS - WELL SCOUT CARD

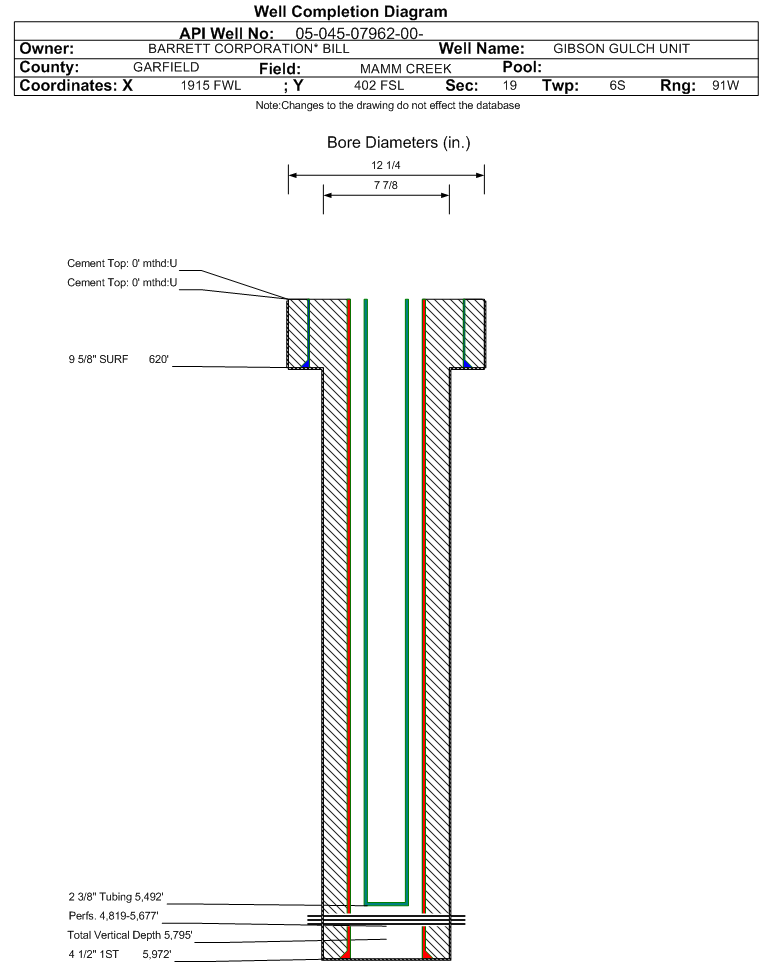

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07962		Well Classification: GW Status: PR - 10/2/2001
Well Name/No:GIBSON GULCH UNIT #13-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/2/2001
FacilityID:261486LocationID:417608
County:GARFIELD #045Location:SESW 19 6S91W 6
Field:MAMM CREEK - #52500Elevation:5818 ft.
Basin:PICEANCE BASIN
Planned Location:402FSL  1915 FWLLat/Long: 39.506771 / -107.599501Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.506941 / -107.599339Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/2/2001             Measured TD: 5972 ft.    Vertical TD: 5795 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/2/2001
Wellbore Permit
Permit #:011859 Expiration Date:10/17/2002
Proposed Top PZ Location:Sec:19 Twp: 6S 91W Footage: 850 FWL  660 FSL
Bottom Hole Location:Sec:19 Twp: 6S 91W Footage: 850 FWL  660 FSL
Proposed Depth/Form:5700 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/18/2001
Spud Date:12/6/2001Spud Date Is:ACTUAL
Measured TD:5972 ft.Measured PB depth:5925 ft.
True Vertical TD:5795 ft.True Vertical PB depth:5748 ft.
Top PZ Location:Sec: Twp: Footage: 660 FSL  869 FWL
Bottom Hole Location:Sec: Twp: Footage: 695 FSL  890 FWL
Log Types:GR / SP / CNL / FDC / DIL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 620 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 620 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5972 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1000, Top: 0 ft., Bottom: 5972 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3560 ft.NN
OHIO CREEK3560 ft.4120 ft.NN
WILLIAMS FORK4120 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/1/2013                  Interval Top: 4819 ft.    Interval Bottom: 5677 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:THRU TUBING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/18/2001
Treatment Summary:4819-5090 - FRACED WITH 2157 BBLS 2% KCL + 274500# 20/40 SAND. 5286-5676 - FRACED WITH 2139 BBLS 2% KCL + 268400# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5492 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/19/2002Test Method:PIPLINE
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 11
BTU_GAS 1192
CALC_BBLS_H2O 5
CALC_BBLS_OIL 11
CALC_GOR 86909
CALC_MCF_GAS 956
CASING_PRESS 1205
GRAVITY_OIL 42
MCF_GAS 956
TUBING_PRESS 949
Perforation Data:
Interval Top:4819 ft.# Of Holes:33
Interval Bottom:5677 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)848
GOR
GOR DeterminationMCFE
Average BOE per Day0.400
Average MCFE per Day2.325

 Federal Financial Assurance  i

 Tribal Well  i No
