COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07960		Well Classification: GW Status: PR - 1/8/2002
Well Name/No:BERNKLAU #RWF41-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/8/2002
FacilityID:261471LocationID:334958
County:GARFIELD #045Location:NWNW 4 7S94W 6
Field:RULISON - #75400Elevation:6126 ft.
Basin:PICEANCE BASIN
Planned Location:401FNL  453 FWLLat/Long: 39.473070 / -107.899930Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.473343 / -107.900030Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/8/2002             Measured TD: 8258 ft.    Vertical TD: 8187 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/8/2002
Wellbore Permit
Permit #:011844 Expiration Date:10/15/2002
Proposed Top PZ Location:Sec:5 Twp: 7S 94W Footage: 458 FNL  458 FEL
Bottom Hole Location:Sec:5 Twp: 7S 94W Footage: 450 FNL  450 FEL
Proposed Depth/Form:8350 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-27 , Unit Acreage: 640, Drill Unit:
Wellbore Completed
Completion Date:12/26/2001
Spud Date:10/19/2001Spud Date Is:ACTUAL
Measured TD:8258 ft.Measured PB depth:8162 ft.
True Vertical TD:8187 ft.True Vertical PB depth:8091 ft.
Top PZ Location:Sec: Twp: Footage: 417 FNL  406 FEL
Bottom Hole Location:Sec: Twp: Footage: 387 FNL  504 FEL
Log Types:DSNL, CBL

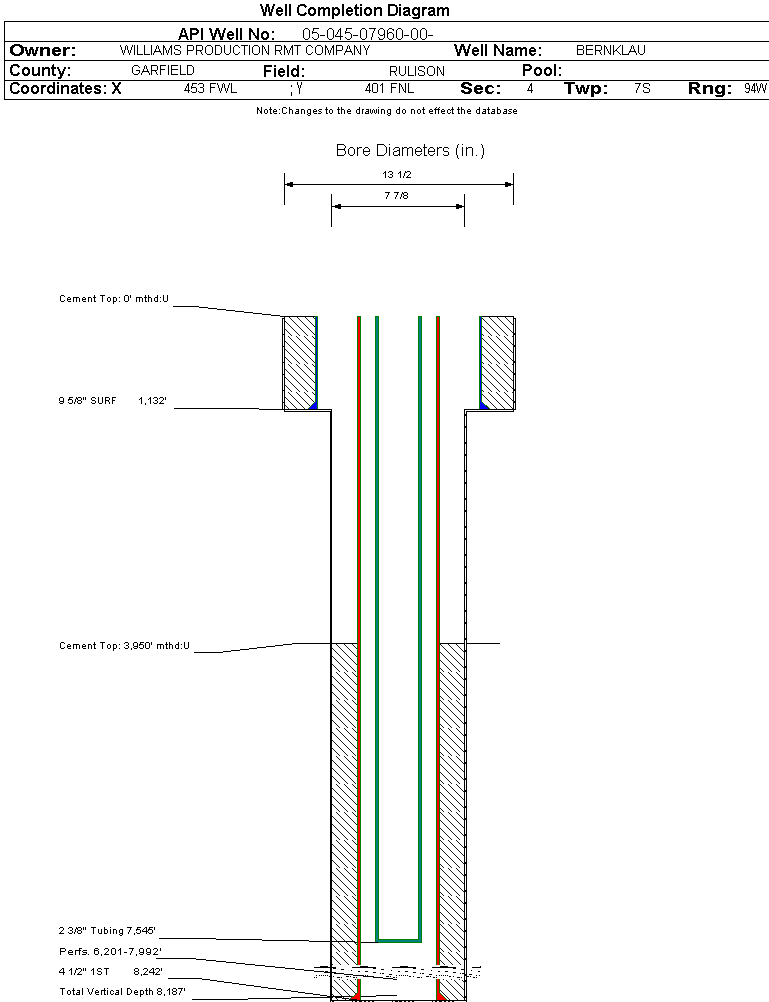

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1132 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 505, Top: 0 ft., Bottom: 1131 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8242 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 805, Top: 3950 ft., Bottom: 8242 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2394 ft.NN
MESAVERDE4797 ft.NN
CAMEO COAL7394 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/5/2002                  Interval Top: 6201 ft.    Interval Bottom: 7992 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.172 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/26/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7545 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/28/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1081
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1853
CASING_PRESS 1637
MCF_GAS 1853
TUBING_PRESS 1623
Perforation Data:
Interval Top:6201 ft.# Of Holes:
Interval Bottom:7992 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)23
Total Gas Produced (MCF)9597
GOR417260
GOR DeterminationMCFE
Average BOE per Day4.597
Average MCFE per Day26.666

 Federal Financial Assurance  i

 Tribal Well  i No
