COGIS - WELL SCOUT CARD

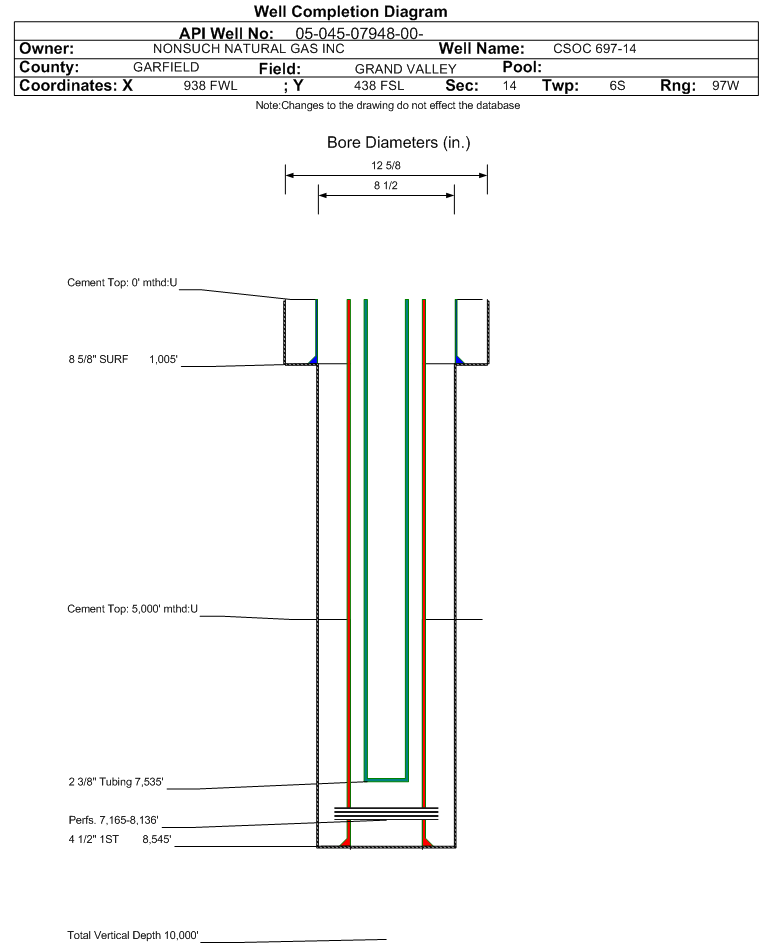

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07948		Well Classification: GW Status: PR - 3/29/2006
Well Name/No:CSOC 697-14 #1 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NONSUCH NATURAL GAS INC - 10163
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/29/2006
FacilityID:261391LocationID:324172
County:GARFIELD #045Location:SWSW 14 6S97W 6
Field:GRAND VALLEY - #31290Elevation:8365 ft.
Basin:PICEANCE BASIN
Planned Location:438FSL  938 FWLLat/Long: 39.516897 / -108.193369Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.516910 / -108.193380Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/29/2006             Measured TD: 8598 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/29/2006
Wellbore Permit
Permit #:011790 Expiration Date:10/4/2002
Proposed Depth/Form:8500 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-1 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/19/2002
Spud Date:10/24/2001Spud Date Is:ACTUAL
Measured TD:8598 ft.Measured PB depth:8598 ft.
True Vertical TD:True Vertical PB depth:
Log Types:MICROLOG,,GR/SP, CNL DENSITY
Casing:String Type: SURF, Hole Size: , Size: 8.625 in., Top: 0 ft., Depth: 1005 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 464, Top: 0 ft., Bottom: 1005 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: , Size: 4.5 in., Top: 0 ft., Depth: 8545 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 880, Top: 5000 ft., Bottom: 8595 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
MESAVERDE5992 ft.6561 ft.NN
CAMEO COAL8476 ft.8598 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/29/2006                 Interval Top: 7165 ft.    Interval Bottom: 8136 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/19/2002
Treatment Summary:2ND STAGE: 7740' - 8163' FRAC WITN 7854 BBLS OF FLUID & 180,000# SAND 1ST STAGE: 7165' - 7521' FRAC WITN 1650 BBL OF FLUID & 175,000# SAND
Tubing Size:2.375 in.Tubing Setting Depth:7535 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/26/2002Test Method:FLOWING
Hours Tested:23Gas Type:WET
Gas Disposal:
Test TypeMeasure
BBLS_OIL 0
BTU_GAS 1160
CALC_BBLS_OIL 0
CALC_MCF_GAS 1276
CASING_PRESS 1220
MCF_GAS 1276
TUBING_PRESS 1140
Perforation Data:
Interval Top:7165 ft.# Of Holes:2
Interval Bottom:8136 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
