COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07945		Well Classification: GW Status: PR - 12/10/2008
Well Name/No:MILLER #8-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/10/2008
FacilityID:261316LocationID:335126
County:GARFIELD #045Location:NENE 36 6S92W 6
Field:MAMM CREEK - #52500Elevation:5906 ft.
Basin:PICEANCE BASIN
Planned Location:855FNL  1260 FELLat/Long: 39.488781 / -107.610441Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.488823 / -107.610410Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/10/2008             Measured TD: 5950 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/10/2008
Wellbore Permit
Permit #:Expiration Date:8/26/2004
Proposed Depth/Form:5600 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-5 , Unit Acreage: 40, Drill Unit: SENE
Wellbore Completed
Completion Date:N/A
Spud Date:9/15/2003Spud Date Is:ACTUAL
Measured TD:5950 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1980 FNL  660 FEL
Bottom Hole Location:Sec: Twp: Footage: 1980 FNL  660 FEL
Log Types:INDUCTION & DENSITY

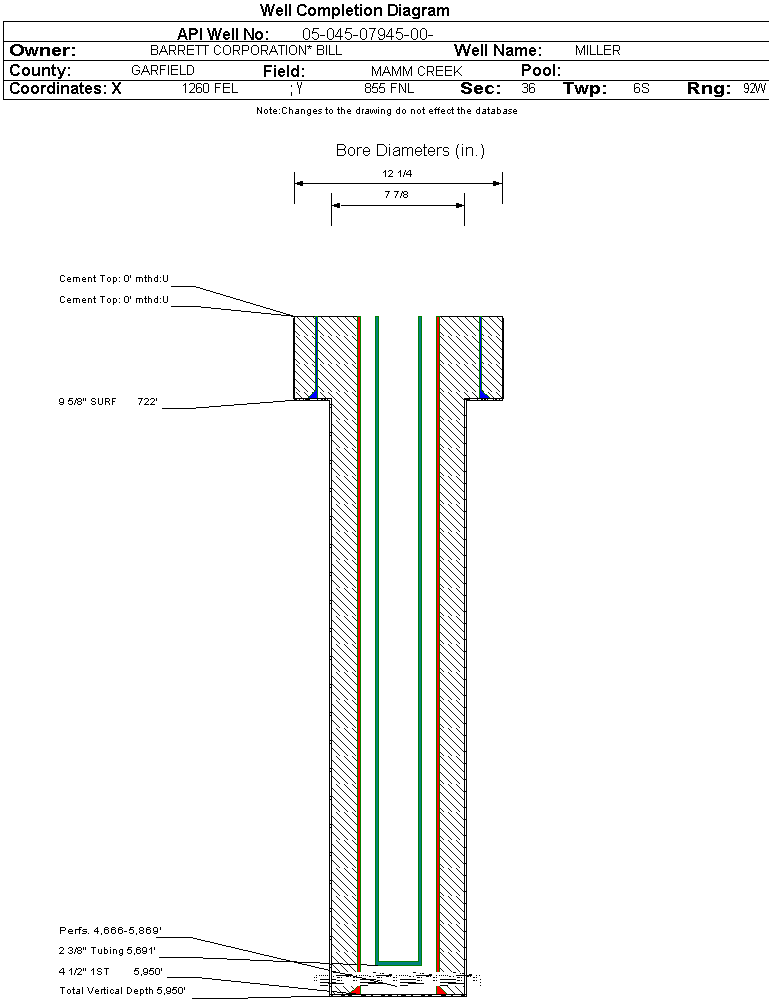

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 722 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 722 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5950 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 530, Top: 0 ft., Bottom: 5950 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
OHIO CREEK3382 ft.3962 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 12/10/2008                Interval Top: 4666 ft.    Interval Bottom: 5869 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/19/2003
Treatment Summary:INTERVAL: 5591'-5869' FORMATION TREATMENT: FRAC W/77,000# SAND IN 2054 BBLS WATER / INTERVAL: 5102'-5376' FORMATION TREATMENT: FRAC W/151,750# SAND IN 3716 BBLS WATER / INTERVAL: 466'-4951' FORMATION TREATMENT: FRAC W/96,000# SAND IN 2426 BBLS WATER
Tubing Size:2.375 in.Tubing Setting Depth:5691 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/19/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 15
BTU_GAS 1191
CALC_BBLS_H2O 30
CALC_BBLS_OIL 15
CALC_GOR 33400
CALC_MCF_GAS 501
CASING_PRESS 541
GRAVITY_OIL 39
MCF_GAS 501
TUBING_PRESS 305
Perforation Data:
Interval Top:4666 ft.# Of Holes:55
Interval Bottom:5869 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)8
Total Gas Produced (MCF)3948
GOR493500
GOR DeterminationMCFE
Average BOE per Day1.886
Average MCFE per Day10.952

 Federal Financial Assurance  i

 Tribal Well  i No
