COGIS - WELL SCOUT CARD

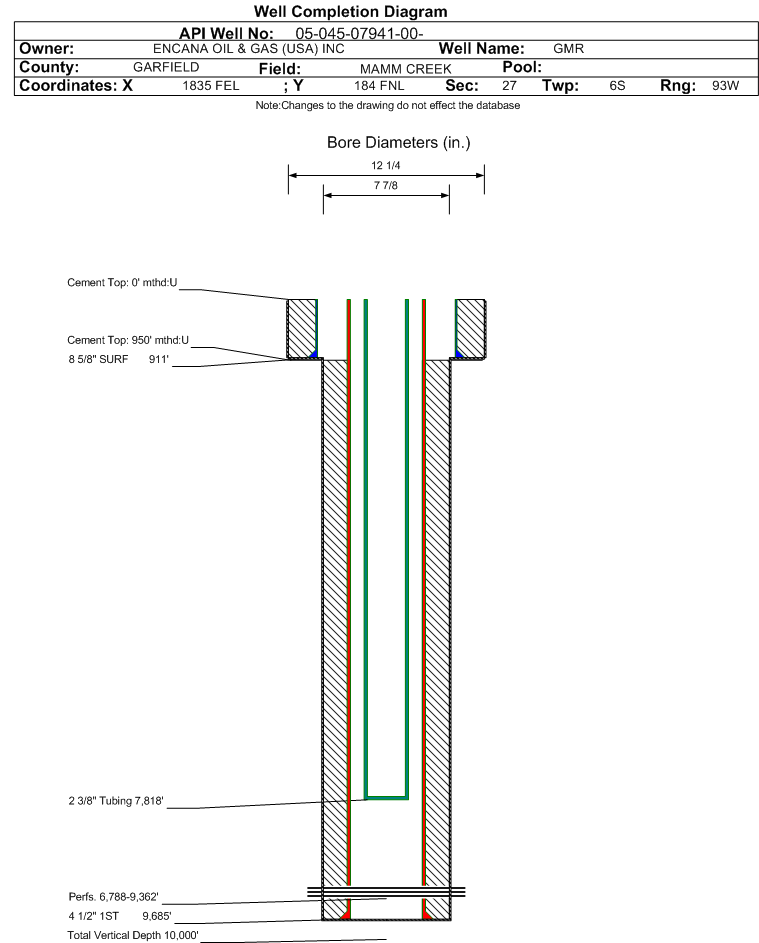

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07941		Well Classification: GW Status: PR - 7/17/2002
Well Name/No:GMR #27-2B1 (B27)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/17/2002
FacilityID:261293LocationID:335376
County:GARFIELD #045Location:NWNE 27 6S93W 6
Field:MAMM CREEK - #52500Elevation:6274 ft.
Basin:PICEANCE BASIN
Planned Location:184FNL  1835 FELLat/Long: 39.503770 / -107.758406Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.504090 / -107.758970Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/17/2002             Measured TD: 9697 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/17/2002
Wellbore Permit
Permit #:011749 Expiration Date:9/24/2002
Proposed Top PZ Location:Sec:27 Twp: 6S 93W Footage: 310 FNL  2246 FEL
Bottom Hole Location:Sec:27 Twp: 6S 93W Footage: 330 FNL  2310 FEL
Proposed Depth/Form:9215 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC56608X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/9/2002
Spud Date:10/7/2001Spud Date Is:ACTUAL
Measured TD:9697 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:9592 ft.
Log Types:C B L / GR / CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 911 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: 911 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9685 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1663, Top: 950 ft., Bottom: 9685 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.5715 ft.NN
WILLIAMS FORK5716 ft.8678 ft.NN
ROLLINS8679 ft.9512 ft.NN
COZZETTE9331 ft.9697 ft.NN
CORCORAN9513 ft.9330 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 7/17/2002                 Interval Top: 6788 ft.    Interval Bottom: 9362 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:ROLLINSCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/9/2002
Treatment Summary:SEE SCANNED DOC# 1336843
Tubing Size:2.375 in.Tubing Setting Depth:7818 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/17/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 138
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 138
CALC_BBLS_OIL 1
CALC_GOR 962
CALC_MCF_GAS 962
CASING_PRESS 950
MCF_GAS 962
TUBING_PRESS 750
Perforation Data:
Interval Top:6788 ft.# Of Holes:155
Interval Bottom:9362 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)52
Total Gas Produced (MCF)12512
GOR240615
GOR DeterminationMCFE
Average BOE per Day6.054
Average MCFE per Day35.102

 Federal Financial Assurance  i Y

 Tribal Well  i No
