Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2012 Measured TD: 8850 ft. Vertical TD: 8580 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20032178 | Expiration Date: | 11/23/2004 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1602 FSL 3416 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1650 FSL 1650 FEL | | Proposed Depth/Form: | 9200 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC 56608X | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

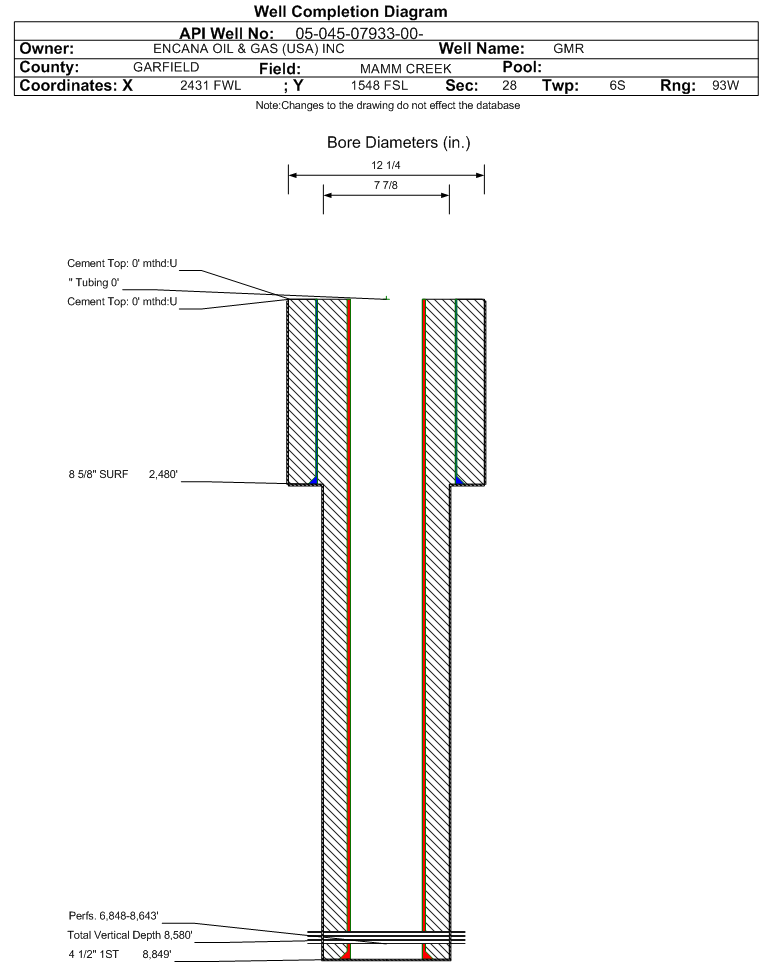

| Wellbore Completed | | Completion Date: | 9/11/2004 | | Spud Date: | 6/3/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8850 ft. | Measured PB depth: | 8775 ft. | | True Vertical TD: | 8580 ft. | True Vertical PB depth: | 8505 ft. | | Top PZ Location: | Sec: Twp: | Footage: 1602 FSL 3416 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1650 FSL 1650 FEL | | Log Types: | GR-CBL/TEMP,GR-PEX | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 2480 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 1090, Top: 0 ft., Bottom: 2480 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8849 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1175, Top: 0 ft., Bottom: 8849 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5673 ft. | N | N | | WILLIAMS FORK | 5674 ft. | 8850 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 5/1/2012 Interval Top: 6848 ft. Interval Bottom: 8643 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/11/2004 | | Treatment Summary: | STAGES 1 THROUGH 7 WERE TREATED WITH A TOTAL OF 17,590 BBLS SLICKWATER, 1929 BBLS YF 125, AND 1,072# OF 20-40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 132 | | BBLS_OIL | 12 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 132 | | CALC_BBLS_OIL | 12 | | CALC_GOR | 166667 | | CALC_MCF_GAS | 1980 | | CASING_PRESS | 1602 | | MCF_GAS | 1980 | | TUBING_PRESS | 1400 |
| | Perforation Data: | | Interval Top: | 6848 ft. | # Of Holes: | 150 | | Interval Bottom: | 8643 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 10196 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 4.807 |
| Average MCFE per Day | 27.898 |
| Federal Financial Assurance | i | Y |
|
|
