COGIS - WELL SCOUT CARD

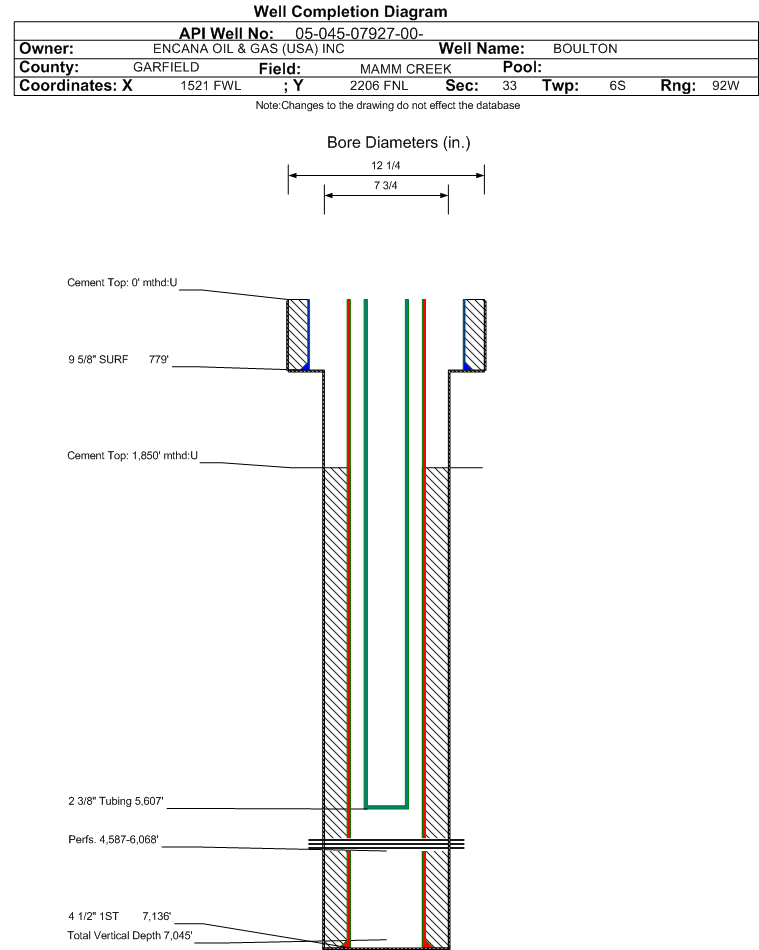

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07927		Well Classification: GW Status: PR - 1/12/2003
Well Name/No:BOULTON #33-6A (F33)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/12/2003
FacilityID:261016LocationID:334859
County:GARFIELD #045Location:SENW 33 6S92W 6
Field:MAMM CREEK - #52500Elevation:5783 ft.
Basin:PICEANCE BASIN
Planned Location:2206FNL  1521 FWLLat/Long: 39.484541 / -107.675403Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.484600 / -107.675410Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/12/2003             Measured TD: 7136 ft.    Vertical TD: 7045 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/12/2003
Wellbore Permit
Permit #:011597 Expiration Date:8/15/2002
Proposed Top PZ Location:Sec: Twp: Footage: 2292 FNL  2105 FWL
Bottom Hole Location:Sec: Twp: Footage: 2310 FNL  2310 FWL
Proposed Depth/Form:7200 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC 56608X
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:1/7/2003
Spud Date:7/25/2002Spud Date Is:ACTUAL
Measured TD:7136 ft.Measured PB depth:
True Vertical TD:7045 ft.True Vertical PB depth:7067 ft.
Top PZ Location:Sec: Twp: Footage: 1874 FNL  2192 FWL
Bottom Hole Location:Sec: Twp: Footage: 1934 FNL  2406 FWL
Log Types:CBL,CM,GR,COL,AI/LC,GR,CN/TL,GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 779 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 470, Top: 0 ft., Bottom: 779 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.75 in., Size: 4.5 in., Top: 0 ft., Depth: 7136 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1650, Top: 1850 ft., Bottom: 7136 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3459 ft.NN
WILLIAMS FORK3460 ft.6613 ft.NN
ROLLINS6614 ft.7136 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 1/12/2003                 Interval Top: 4587 ft.    Interval Bottom: 6068 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:ROLLINSCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/7/2003
Treatment Summary:STAGE 1: ACID BALLOUT, 5809-6068', 22 HOLES, .32", 4249 BBL SLICKWATER, 195000# 20/40 SAND. STAGE 2: ACID BALLOUT, 5245-5644', 20 HOLES, .32", 3434 BBL SLICKWATER, 165,570# 20/40 SAND. STAGE 3: ACID BALLOUT, 4855-5098', 22 HOLES, .32", 3941 BBL SLICKWATER, 204,000# 20/40 SAND. STAGE 4: ACID BALLOUT 4587-4708', 18 HOLES, .32', 2008 BBL SLICKWATER, 103,750# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5607 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/12/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 33
BBLS_OIL 30
BTU_GAS 1170
CALC_BBLS_H2O 33
CALC_BBLS_OIL 30
CALC_GOR 90
CALC_MCF_GAS 2708
CASING_PRESS 1880
MCF_GAS 2708
TUBING_PRESS 1702
Perforation Data:
Interval Top:4587 ft.# Of Holes:82
Interval Bottom:6068 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)86
Total Gas Produced (MCF)22145
GOR257500
GOR DeterminationMCFE
Average BOE per Day10.694
Average MCFE per Day62.013

 Federal Financial Assurance  i Y

 Tribal Well  i No
