COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07921		Well Classification: GW Status: PR - 3/1/2011
Well Name/No:PORTER FEDERAL #16-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/1/2011
FacilityID:260917LocationID:335118
County:GARFIELD #045Location:SESE 29 6S92W 6
Field:MAMM CREEK - #52500Elevation:5841 ft.
Basin:PICEANCE BASIN
Planned Location:1081FSL  579 FELLat/Long: 39.493471 / -107.682924Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493544 / -107.682898Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2011             Measured TD: 6371 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2011
Wellbore Permit
Permit #:011515 Expiration Date:8/8/2002
Proposed Depth/Form:6500 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/11/2001
Spud Date:9/26/2001Spud Date Is:ACTUAL
Measured TD:6371 ft.Measured PB depth:6354 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SDL/DSN

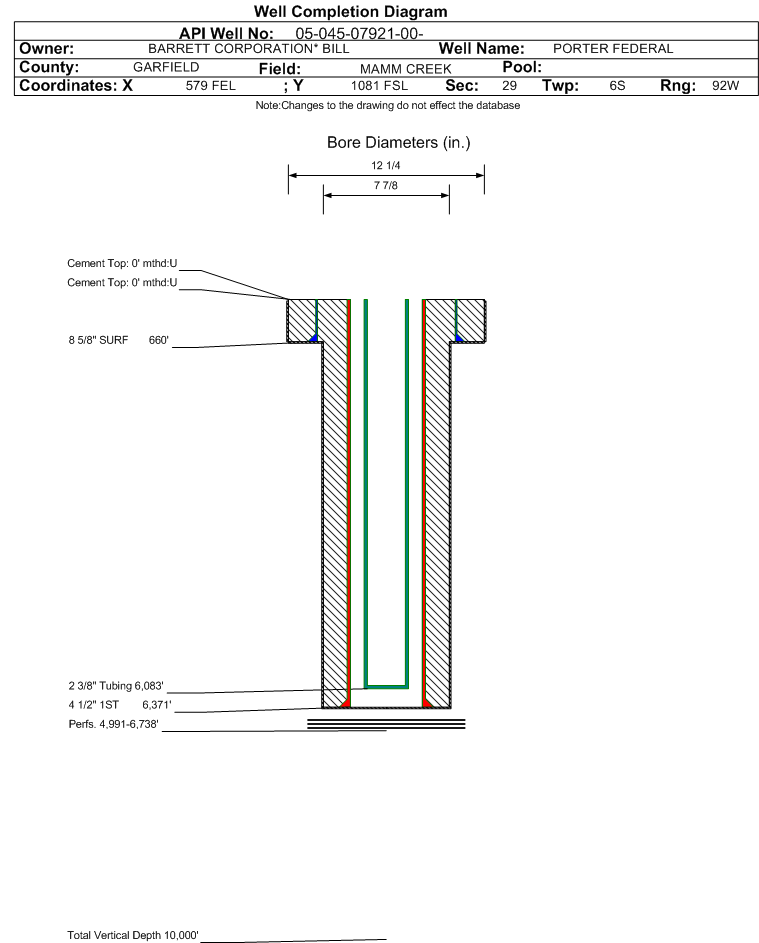

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 660 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 660 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6371 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 0 ft., Bottom: 6371 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3224 ft.NN
OHIO CREEK3224 ft.3824 ft.NN
WILLIAMS FORK3824 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/1/2011                  Interval Top: 4991 ft.    Interval Bottom: 6738 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/11/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6083 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/4/2001Test Method:SALES
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 32
BTU_GAS 1188
CALC_BBLS_H2O 30
CALC_BBLS_OIL 32
CALC_GOR 47219
CALC_MCF_GAS 1511
CASING_PRESS 2439
GRAVITY_OIL 42
MCF_GAS 1511
TUBING_PRESS 2310
Perforation Data:
Interval Top:4991 ft.# Of Holes:30
Interval Bottom:6738 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)60
Total Gas Produced (MCF)13148
GOR219133
GOR DeterminationMCFE
Average BOE per Day6.376
Average MCFE per Day36.977

 Federal Financial Assurance  i Y

 Tribal Well  i No
